Production Pace Timer/Counter

Display and Counter Options
SKU: PPT-101
Regular price $1,074.00
Description

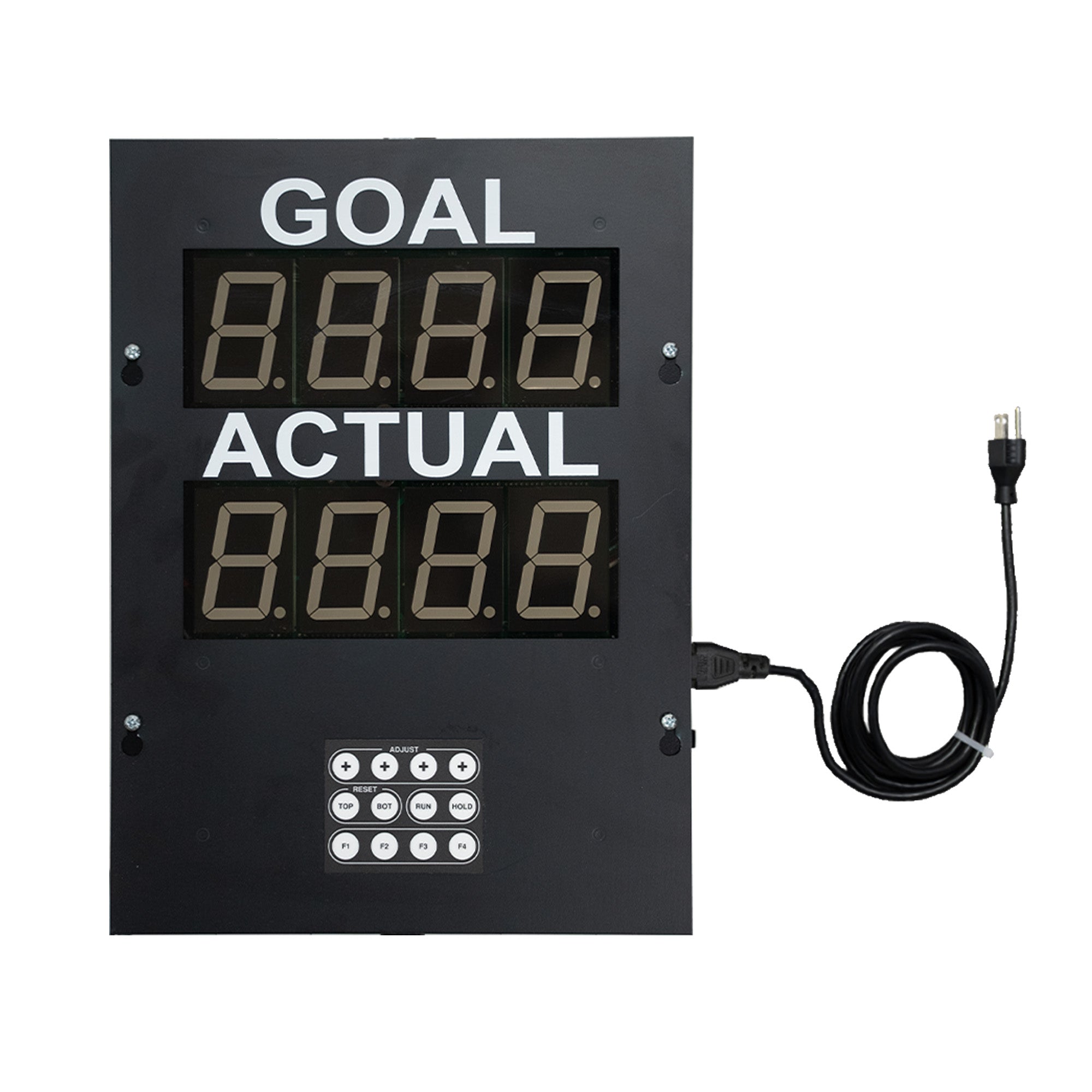

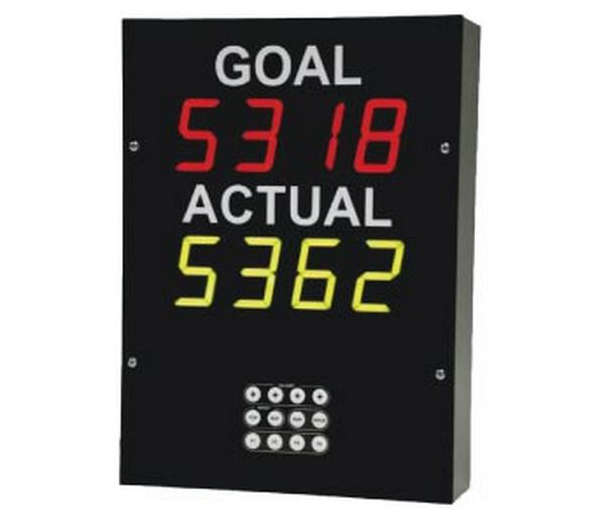

Production Pace Timer/Counter Standard 2 line, 2.3 inch, 4 digit, single sided with power cord, on/off switch, and connector for accessories

Features

  • Increase productivity and downtime by setting and tracking production rates
  • Top red line is production goal, bottom green line is actual production
  • 4 by 3 matrix keypad control for operator interface
  • NEMA 1, black painted cabinet is 16 gauge steel
  • 120 VAC, 50/60 Hz at .5 amps for power
  • 11" wide, 15" tall, 3.5" deep
  • 2.3 inch high 7-segment LED modules
  • Production pace interval from 0.1 to 9999 seconds
  • 5 day memory retention with no power

Inputs:

  • 12 VDC (N.O. or npn transistor) for count, hold, goal and actual reset

Optional Accessories (Call for Quote)

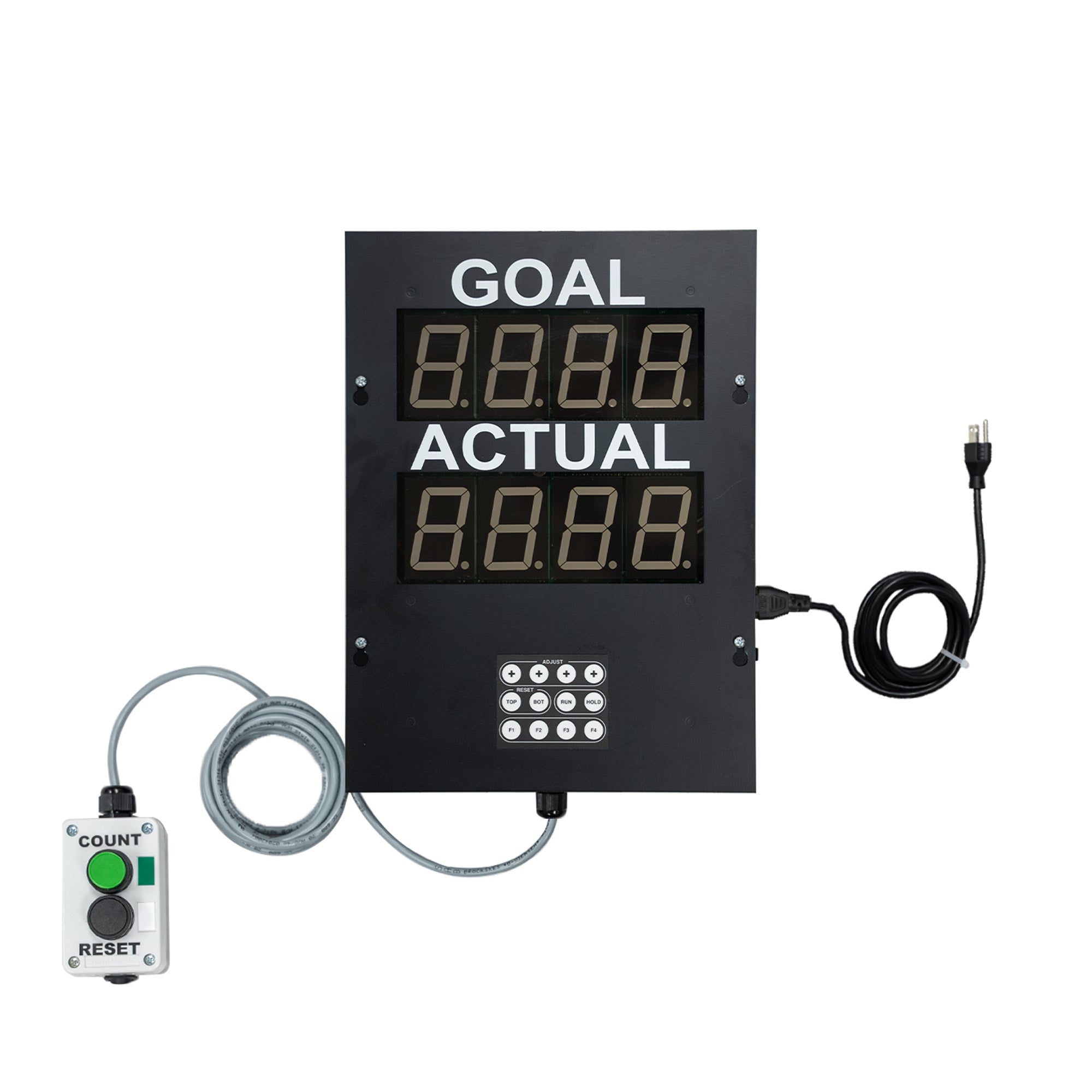

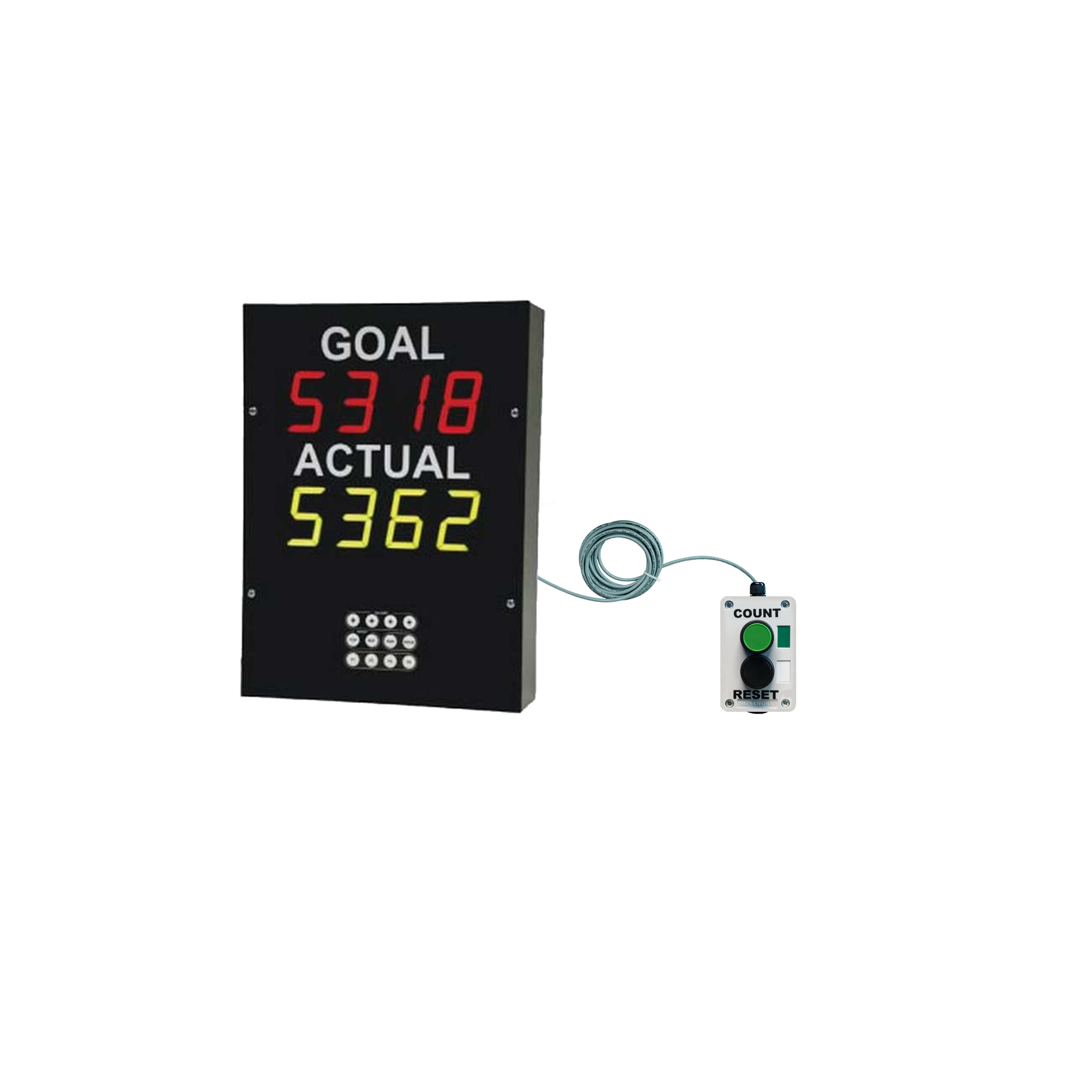

  • Manual count and run/hold box (PPT-051)

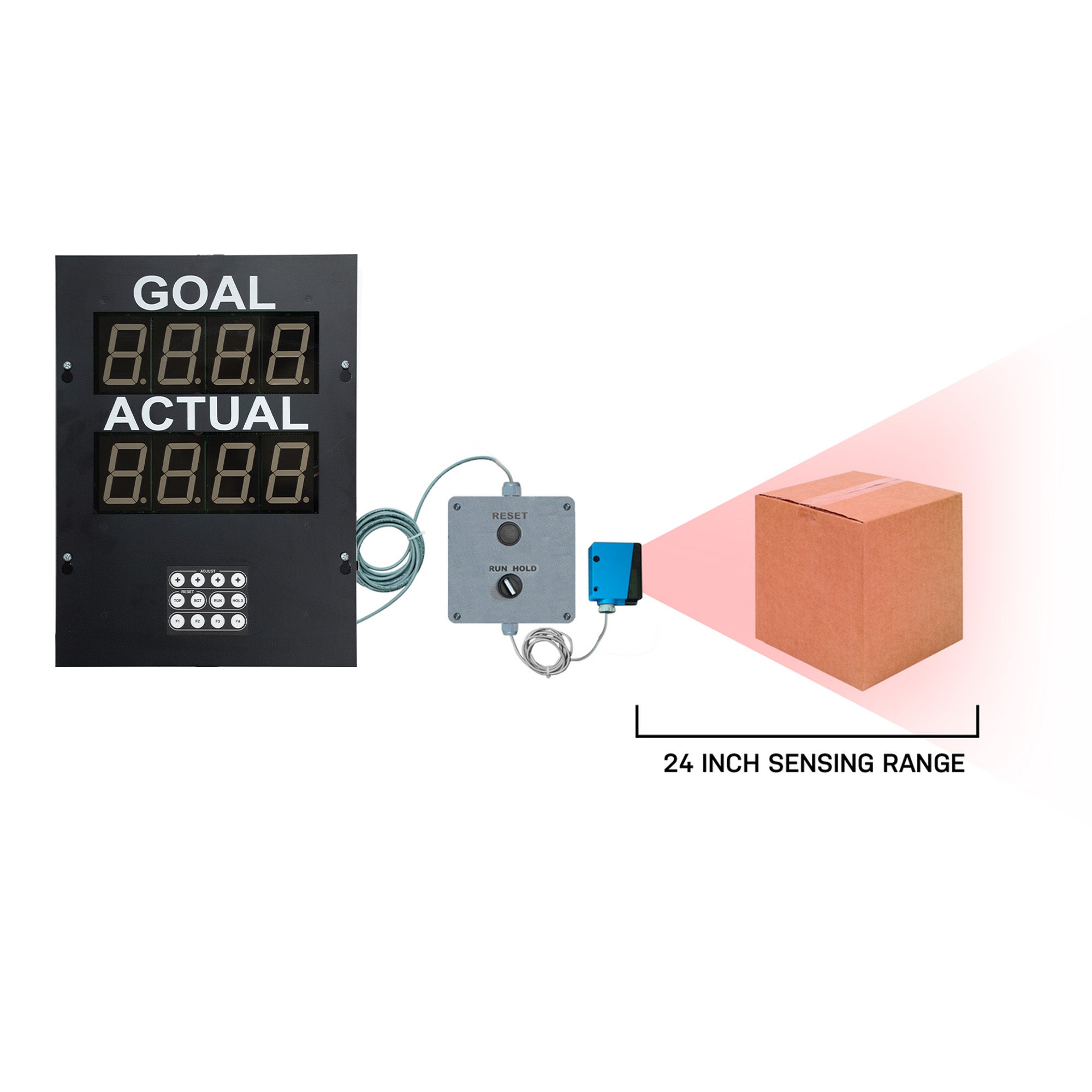

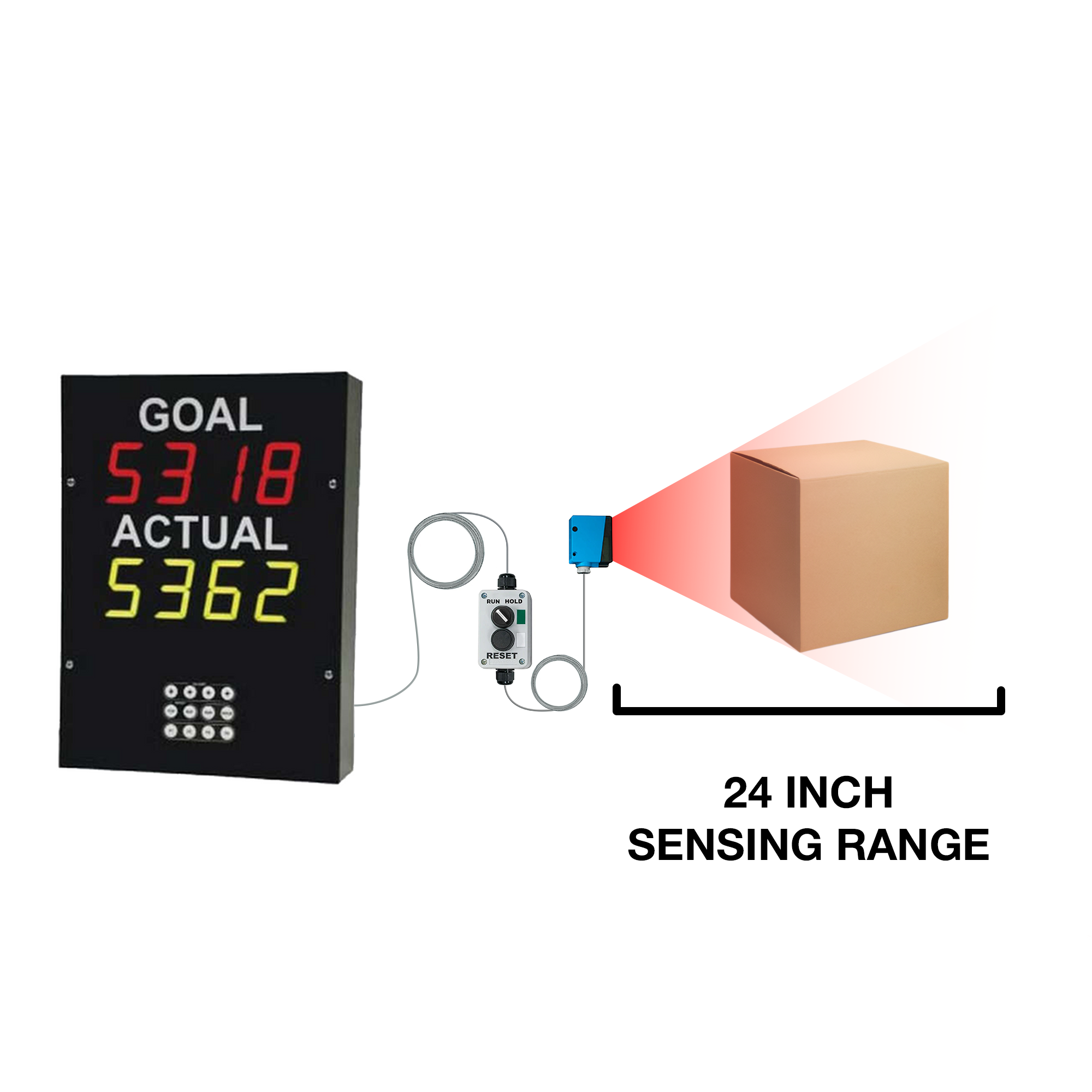

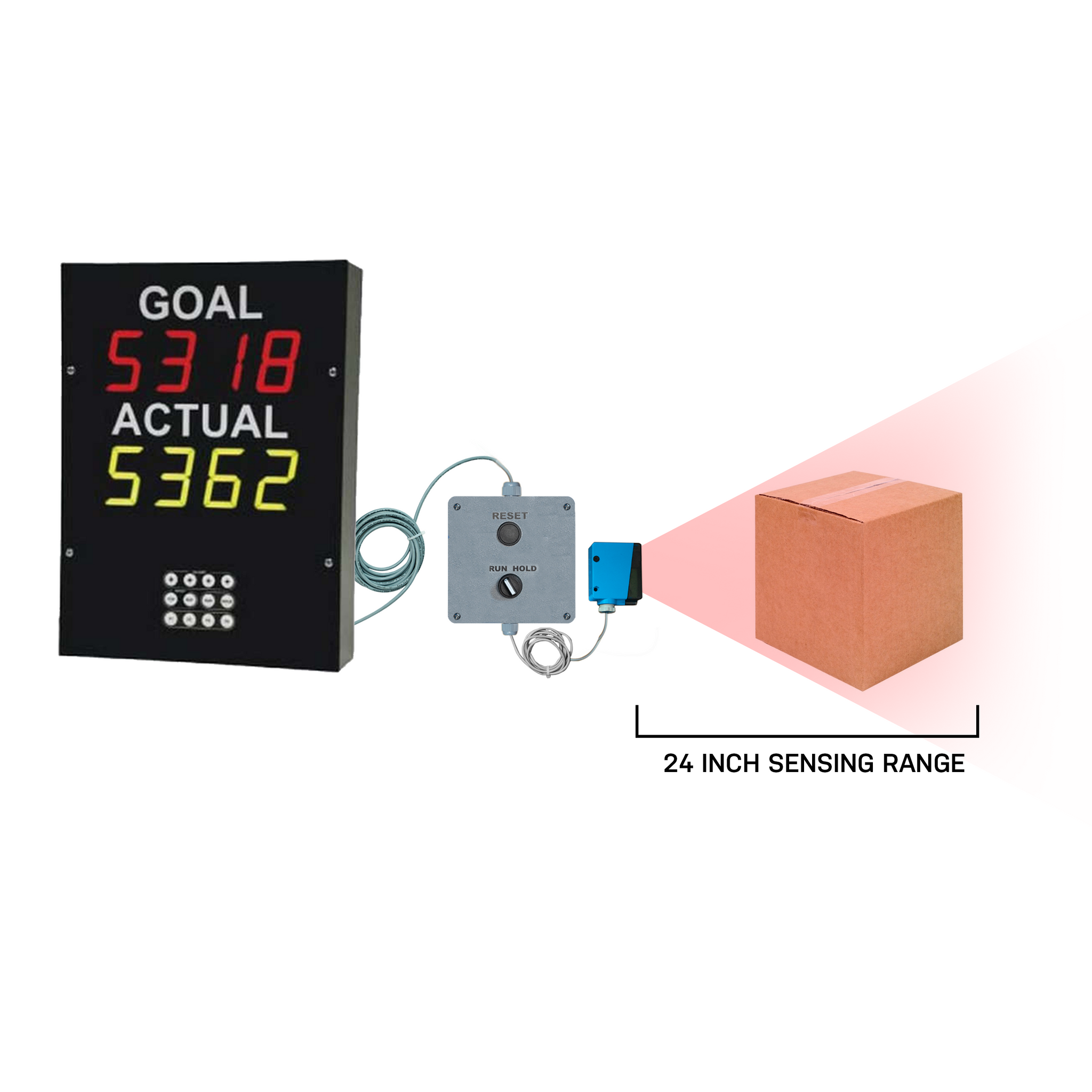

  • Retro-reflective photo kit with run/hold switch box (PPT-031)
  • NEMA 12 enclosure
