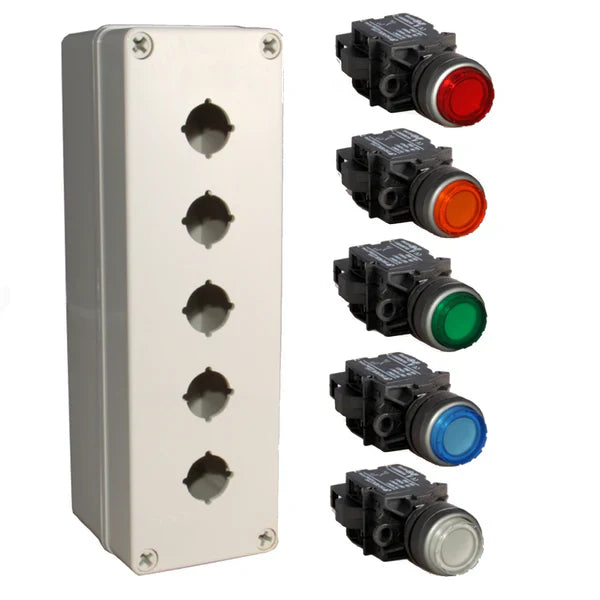

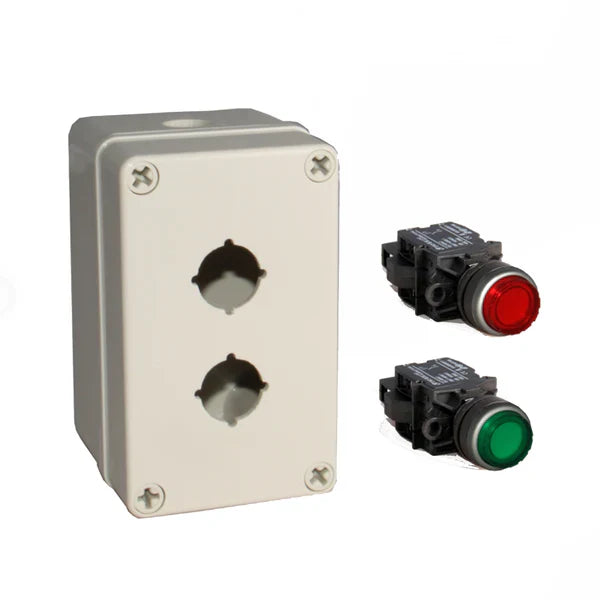

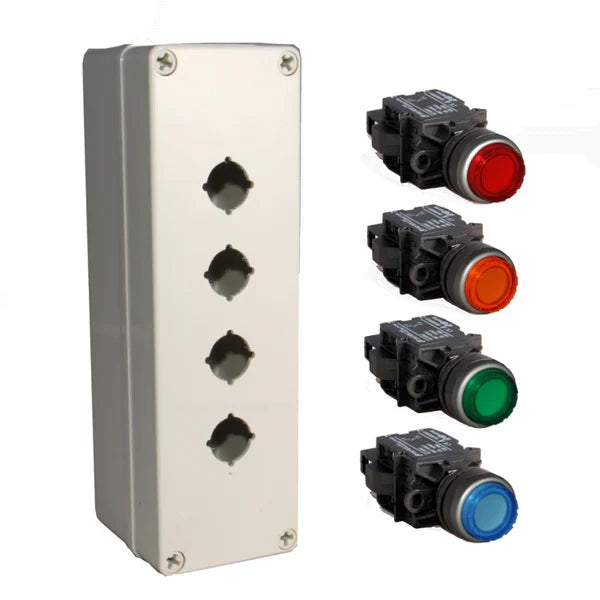

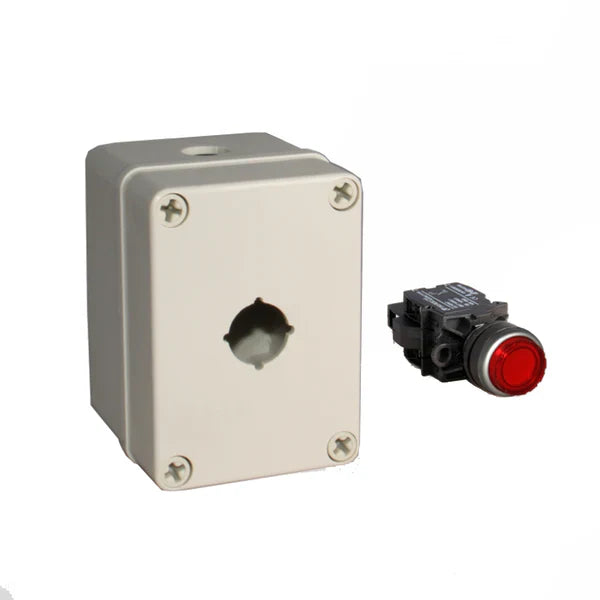

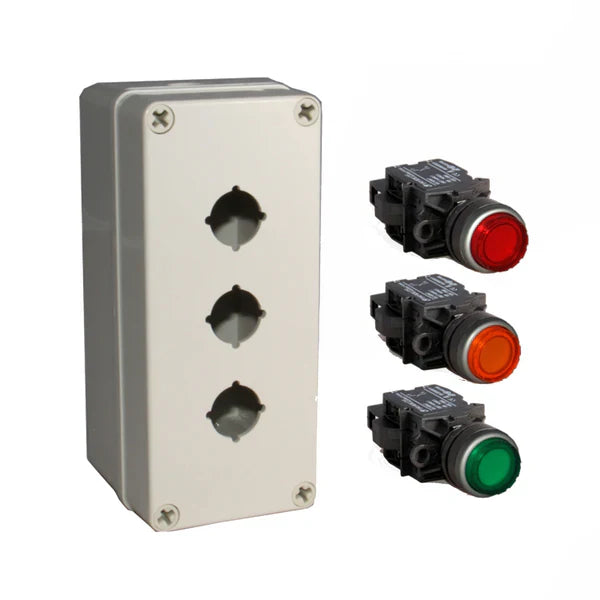

24V DC Illuminated Push Button Box Kit

Operation
Color:
Red
SKU: KT-2221-100
Regular price $46.69
Description

24V DC MAINTAINED OPERATION

The 24V DC Illuminated Push Button Box Kit comes with the 22mm illuminated pushbuttons, corresponding contact blocks and ABS mounting box for ease in customer purchasing, assembly and wiring. Kits allow customer to assemble and wire from customer’s PLC, machine or remote indication device. Ideal for connection to separately purchased stack lights or any electrical device requiring industrial switch station control.

ABS box: This non-metallic ABS switch box enclosure includes 22mm (7/8 inch) hole on the face for the use of an indicator lamp, push button or selector switch.

Four mounting holes are provided for wall / machine mounting options.

Tools such as a Phillips head screwdriver, wire strippers, a socket/mandrel/flathead screwdriver (for knockout), etc., are required to assemble. Basic electrical and mechanical skills are required. Assembly instructions not available. Contact blocks are keyed for ease in assembly orientation.

Specifications

  • Weight: 2 pounds
  • Power Voltage: 120VAC
  • Logic Voltage: 120VAC
  • Current Rating: ~600,000 operations @ 20Hz
  • NEMA/IP Rating: IP65
  • Color: Red, Green, Amber, Blue, White
  • LED Lifespan: 25,000-50,000 Hours Typical
  • Contact Rating: 10 Amp Max
  • Contact Type: (2) NO Contacts Per Switch
  • Operation: Maintained
  • Array: 1 to 5 Button- Maintained
