4 Inch LED Industrial Timer or Counter

Display Format
SKU: AF-2640-314
Regular price $674.00
Description

American Ledgible LED Timers and Counters from Signaworks can be used in any combination of custom assembly. These timers and counters are great tools for real-time data analysis and downtime monitoring.

Features

Counter + Timer

  • Selectable as a Production Counter or Production Timer

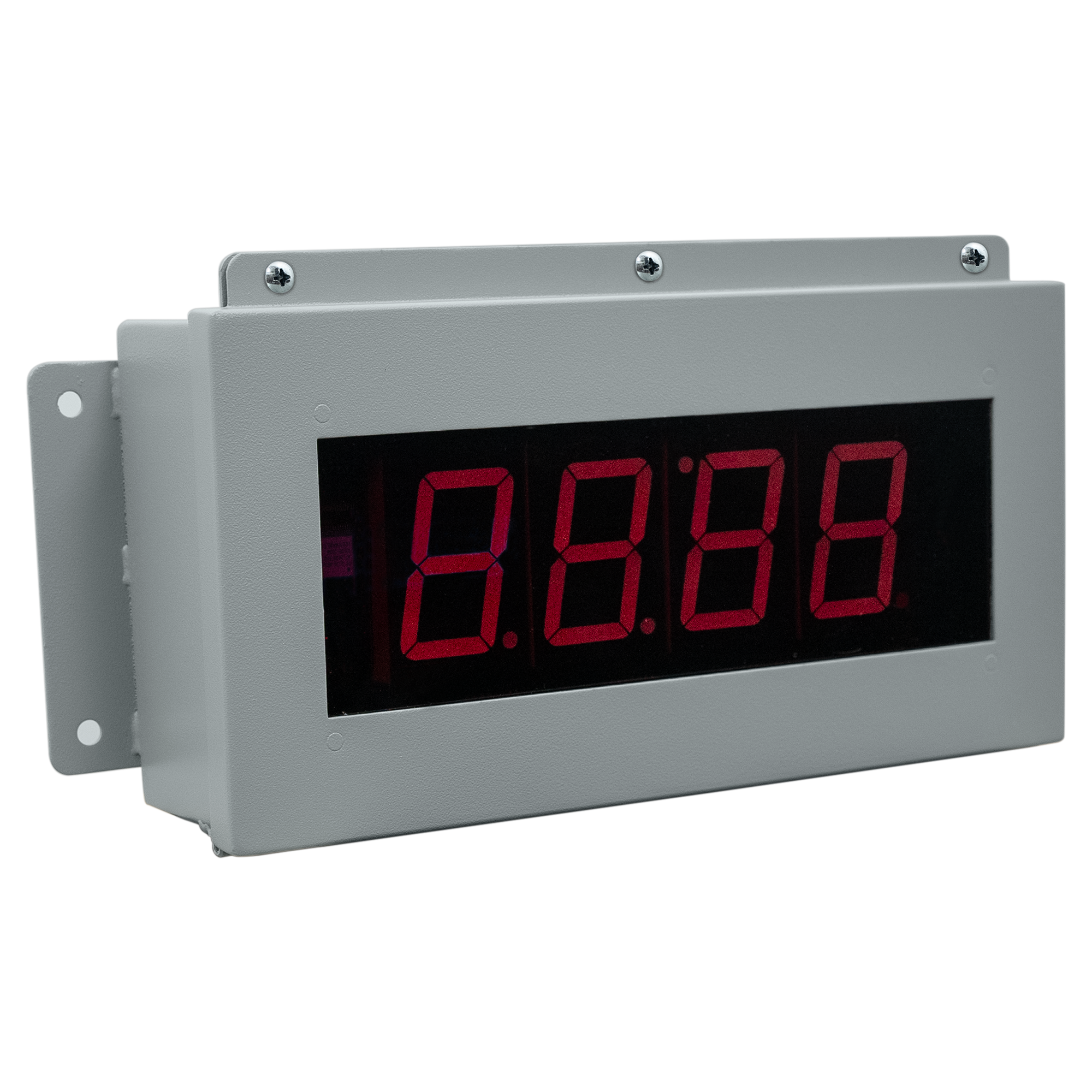

  • 7 segment LED, 4 inch high, visible up to 200 feet
  • NEMA 12, gray, 16 Gauge steel enclosure with hinged door
  • 120 VAC power at 1 amp
  • Zero or blank setting for any digit not used
  • Relay output when count/time reaches zero or preset
  • Variety of options and features are jumper selectable
  • 1/4 inch thick acrylic sheet for display window
  • Screw terminal connections

Counter

  • Count up or count down
  • Relay output when count reaches zero or preset
  • 120 VAC or 24 VDC count input

Optional Accessories (Call for Quote)

  • Manual count and reset box (KT-051)
  • Retro-reflective photo kit box with reset push button (KT-031)
  • Run/hold switch box with reset push button

Equivalent Model Numbers

  • All models operate as a timer or counter depending on the internal setting
  • AF-2640-314 and AF-2645-314 Count and Time Up
  • AF-2640-905 and AF-2645-905 Count and Time Up Hold on Zero
  • AF-2640-912 and AF-2645-912 Count and Time Down with Overage
  • AF-2640-907 and AF-2645-907 Count & Time Down Reset on Zero
