D1X S1R Explosion Proof High Output Radial Alarm Horn Sounder UL & ATEX
SKU: PLEASE CALL FOR PRICING
Call for Quote and Customization
Description

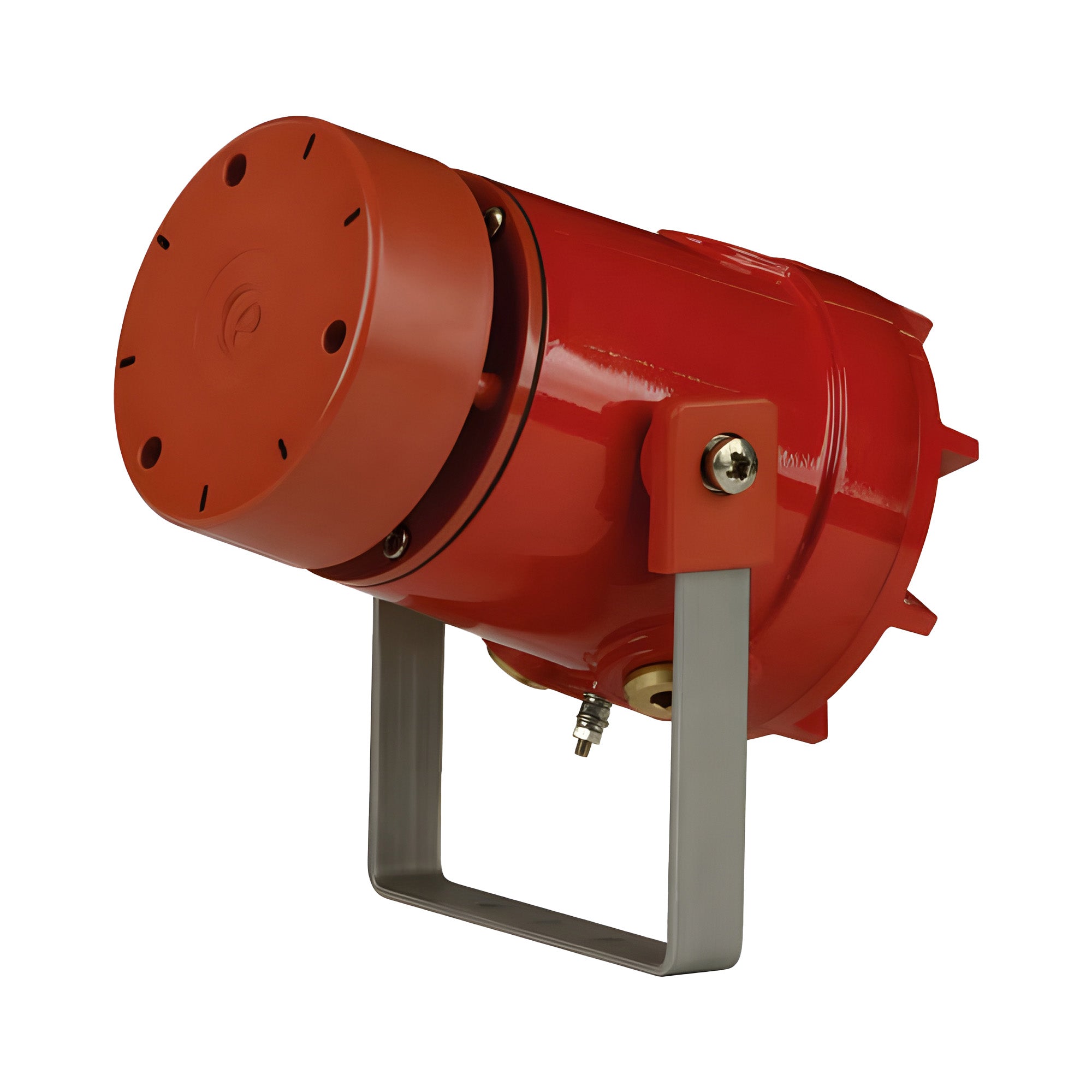

115dB(A) alarm horn. The D1xS1R is a high output alarm horn sounder with an omnidirectional, radial horn. Low current consumption and high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosure ensure the D1xS1R is suitable for all Class I & II Division 1, Zone 1 & 20 explosion proof signaling applications. The 24V dc version is approved for public mode fire alarm use and the 110-240V ac version for general signaling use.
Features
- High output, up to 115dB(A)
- Public mode fire alarm use
- 4 remotely selectable alarm stages/channels
- Positive or negative line stage/channel switching
- Choice of 64 alarm tone frequencies
- Automatic synchronization on multi-sounder system
- Continuously rated
- Compact form factor
- Robust corrosion proof aluminum enclosure
- Stainless steel fixings
- Triple cable entries
- Duplicate cable terminations (in & out for daisy-chain installations)
- Available with custom tone configurations and frequencies
- UL Approval, Class 1 & 2 Division 1
