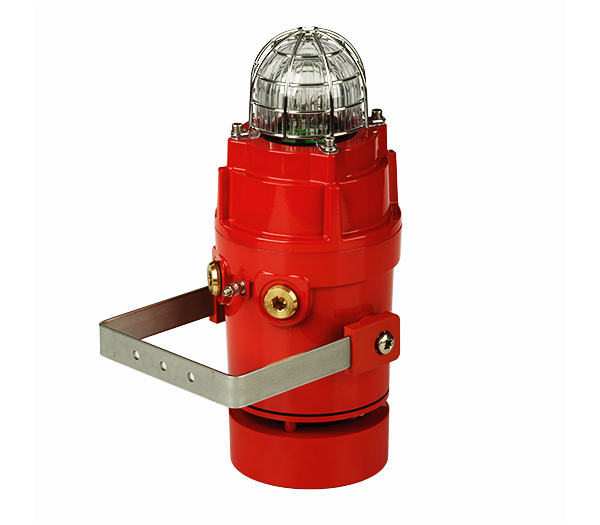

D1XC1X05R Explosion Proof High Output Radial Alarm Horn and 5 Joule Xenon Strobe Beacon

SKU: PLEASE CALL FOR PRICING

Call for Quote and Customization

Description

115dB(A) horn & 5 Joule Xenon. The D1xC1X05R is a high output alarm horn sounder with omni-directional radial horn combined with a 500,000cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosure ensures the D1xC1X05R is suitable for all Class 1 & 2 Division 1, Zone 1 & 20 explosion proof signaling applications. The alarm horn & Xenon strobe may be powered from a common or dual supply allowing simultaneous or independent operation. Featuring 64 first stage/channel alarm sounds, the alarm tone frequencies for the first 2 stages are independently selectable. Each of the available 4 stage/channels can be remotely triggered e.g. via an external relay.

Features

  • Automatic synchronization on multi-beacon & sounder systems.
  • User selectable strobe flash rates
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • High output omni-directional alarm horn, up to 115dB(A)
  • Xenon strobe - private mode fire alarm use
  • Alarm horn - public mode fire alarm use
  • 4 remotely selectable alarm stages/channels
  • Positive or negative line stage/channel switching
  • Choice of 64 alarm tone frequencies
  • Compact form factor
  • Robust corrosion proof aluminum enclosure
  • Stainless steel fixings
  • Triple cable entries
  • Duplicate cable terminations
  • UL Approval, Class 1 & 2 Division 1
