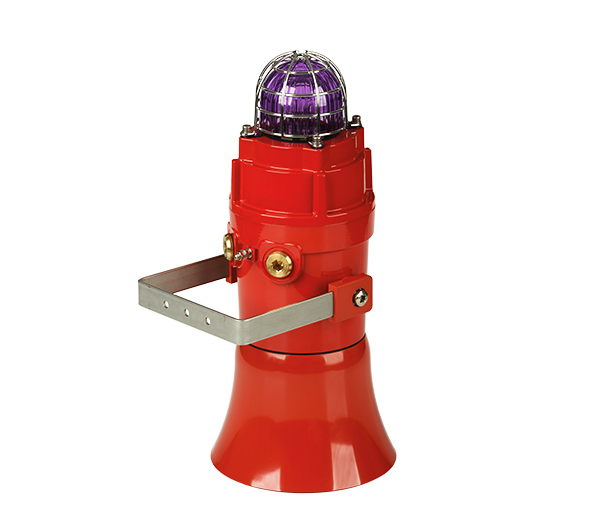

D1XC1X10F Explosion Proof High Output Alarm Horn with Re-entrant Flare Horn and 10 Joule Xenon Strobe Beacon
SKU: PLEASE CALL FOR PRICING
Call for Quote and Customization
Description
117dB(A) horn & 10 Joule Xenon. The D1xC1X10F is a high output alarm horn sounder with re-entrant flare horn combined with a 1,000,000cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosure ensures the D1xC1X10F is suitable for all Class 1 & 2 Division 1, Zone 1 & 20 explosion proof signaling applications.
Features
- Automatic synchronization on multi-beacon & sounder systems.
- User selectable strobe flash rates
- Ratchet adjustable stainless steel ‘U’ bracket.
- High output alarm horn, up to 117dB(A)
- Xenon strobe - private mode fire alarm use
- Alarm horn - public mode fire alarm use
- 4 remotely selectable alarm stages/channels
- Positive or negative line stage/channel switching
- Choice of 64 alarm tone frequencies
- Compact form factor
- Robust corrosion proof aluminum enclosure
- Stainless steel fixings
- Triple cable entries
- Duplicate cable terminations
- UL Approval, Class 1 & 2 Division 1
