D1xS2F 123dB(A) Alarm Horn Sounder UL Explosion Proof

SKU: PLEASE CALL FOR PRICING

Call for Quote and Customization

Description

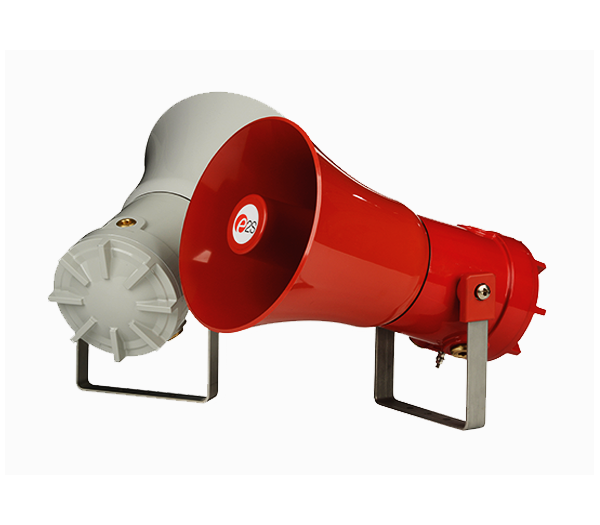

The D1xS2F is a high output alarm horn sounder with re-entrant flare horn. Low current consumption and high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosure ensure the D1xS2F is suitable for all Class 1 & 2 Division 1, Zone 1 & 20 explosion proof signaling applications. The 24V dc version is approved for public mode fire alarm use and the 110-240V ac version for general signaling use.

Model Types

D1x S2F Alarm Horn Sounder

Features

  • High output, up to 125dB(A)
  • Public mode fire alarm use
  • 4 remotely selectable alarm stages/channels
  • Positive or negative line stage/channel switching
  • Choice of 64 alarm tone frequencies
  • Automatic synchronization on multi-sounder system
  • Continuously rated
  • Compact form factor
  • Robust corrosion proof aluminum enclosure
  • Stainless steel fixings
  • Triple cable entries
  • Duplicate cable terminations (in & out for daisy-chain installations)
  • Available with custom tone configurations and frequencies
  • UL Approval, Class 1 & 2 Division 1
