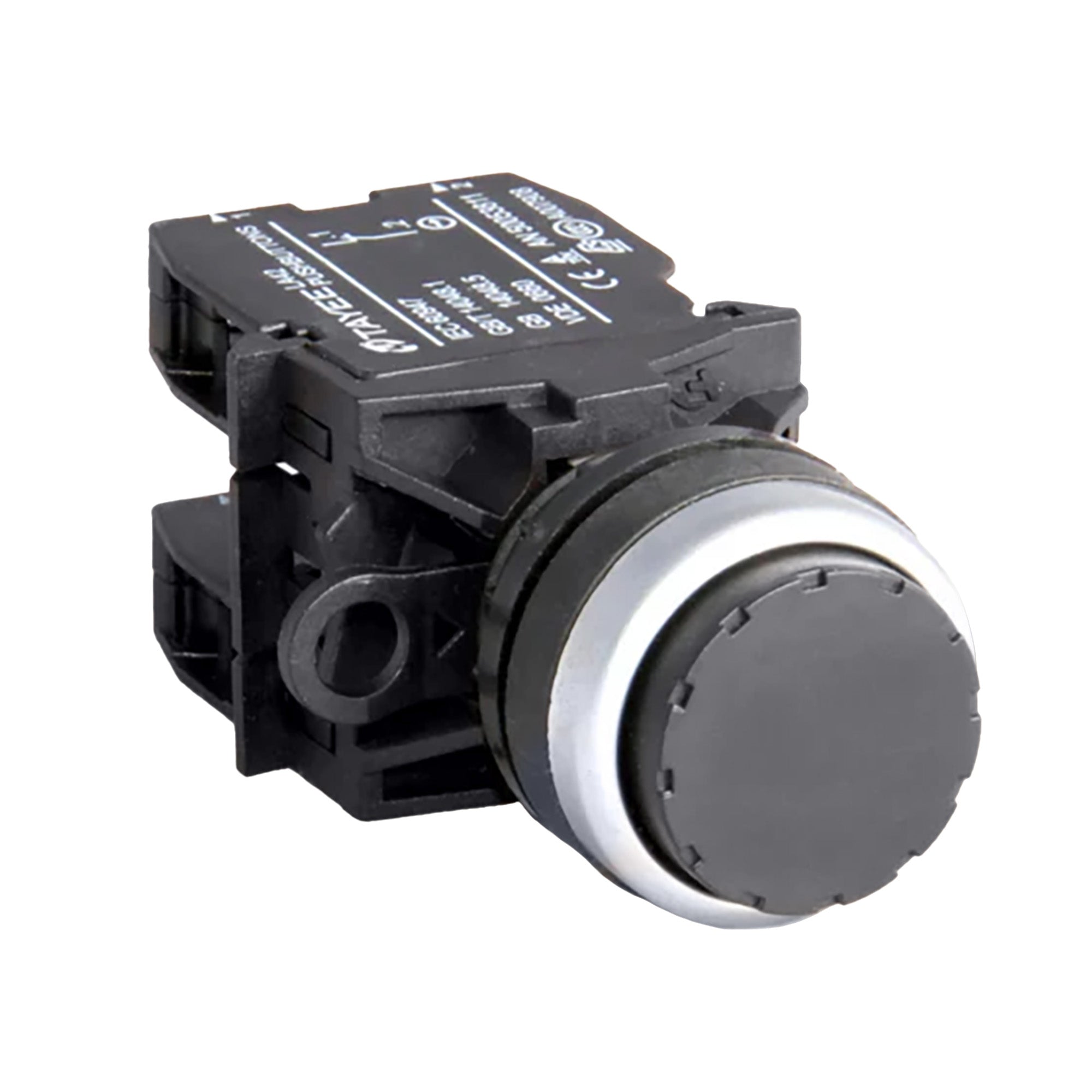

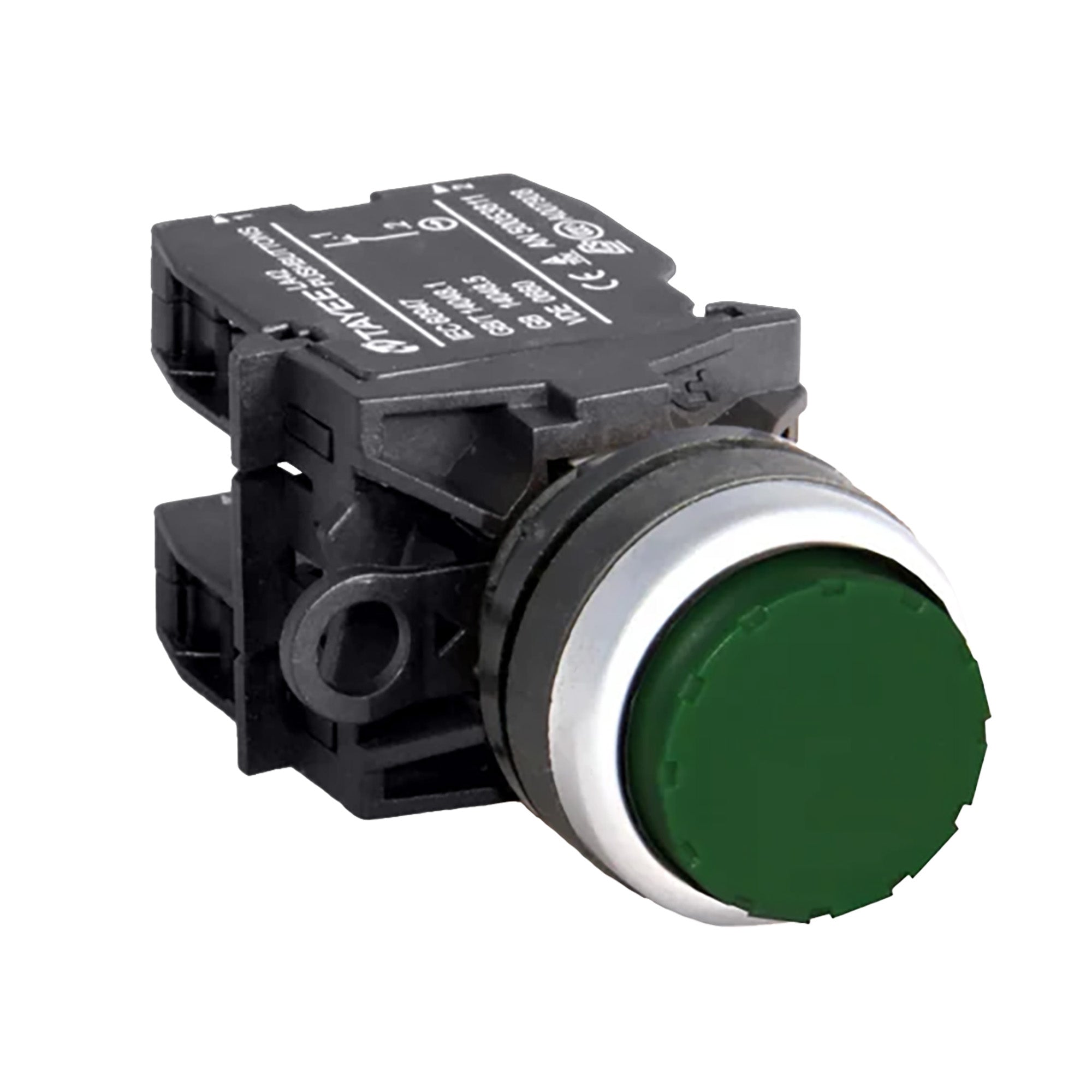

Extended Head Push Button Switches

These 22mm (7/8") momentary and maintained push button switch includes 1 removable normally open (N.O.) and 1 removable normally closed (N.C.) contact block for applications requiring a momentary double pull single throw (D.P.S.T) contact signal.

Extended face versions are available for easy actuation via the palm, gloved hand or other means.

Specifications: Working Temperature Range: -25 to +60 degrees Centigrade Rated Insulation Voltage: 600 Volts Mechanical Life: ~1,000,000 uses @ 20 Hz Sealant Rating: IP65 Electrical Life: AC-15 operation: ~600,000 @ 20Hz DC-13 operation: ~250,000 @ 20Hz

IEC 60947 CE recognized
