Flush Mount Push Buttons Momentary or Maintained

Color:
black
Style
SKU: SW-2837-200
Regular price $8.99
Description

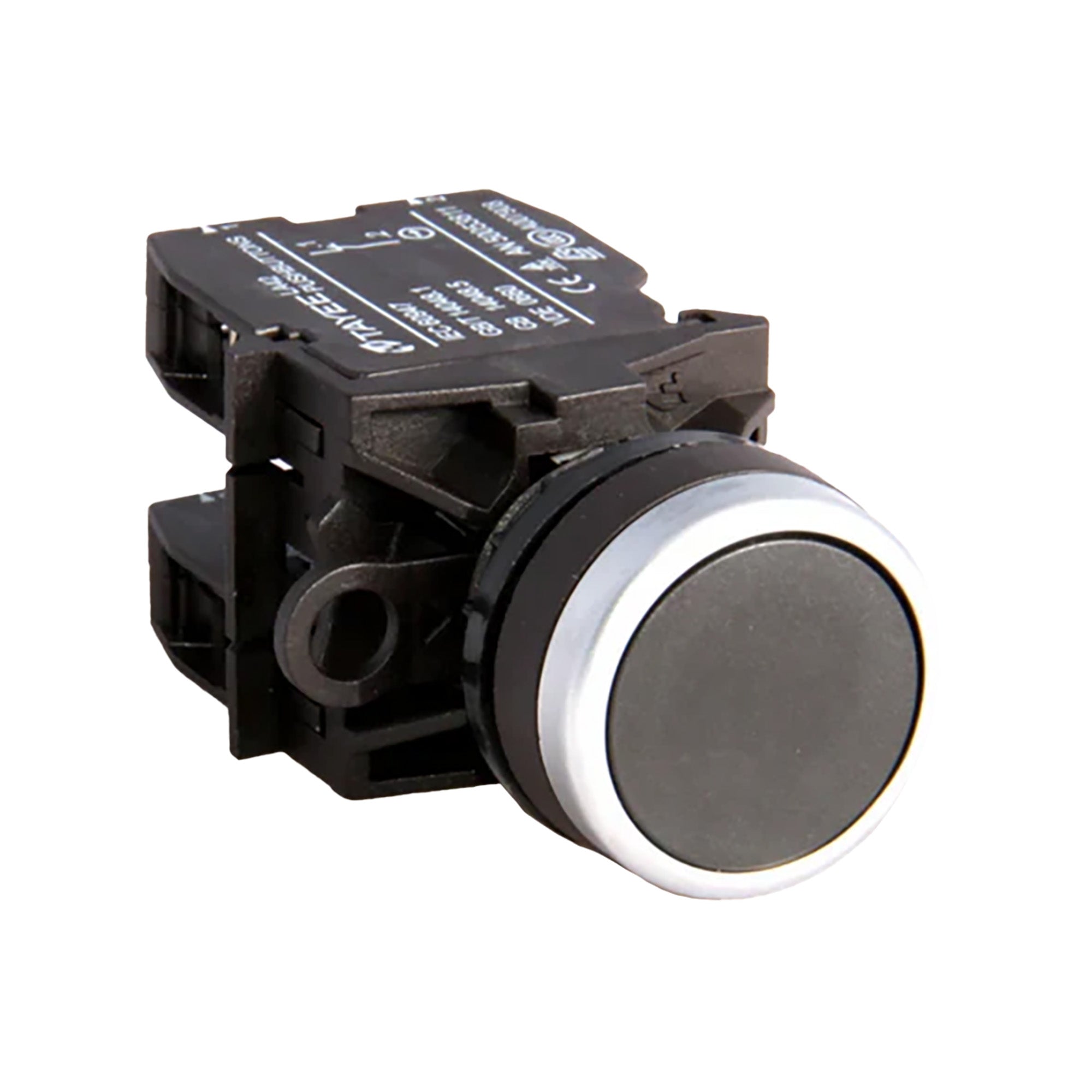

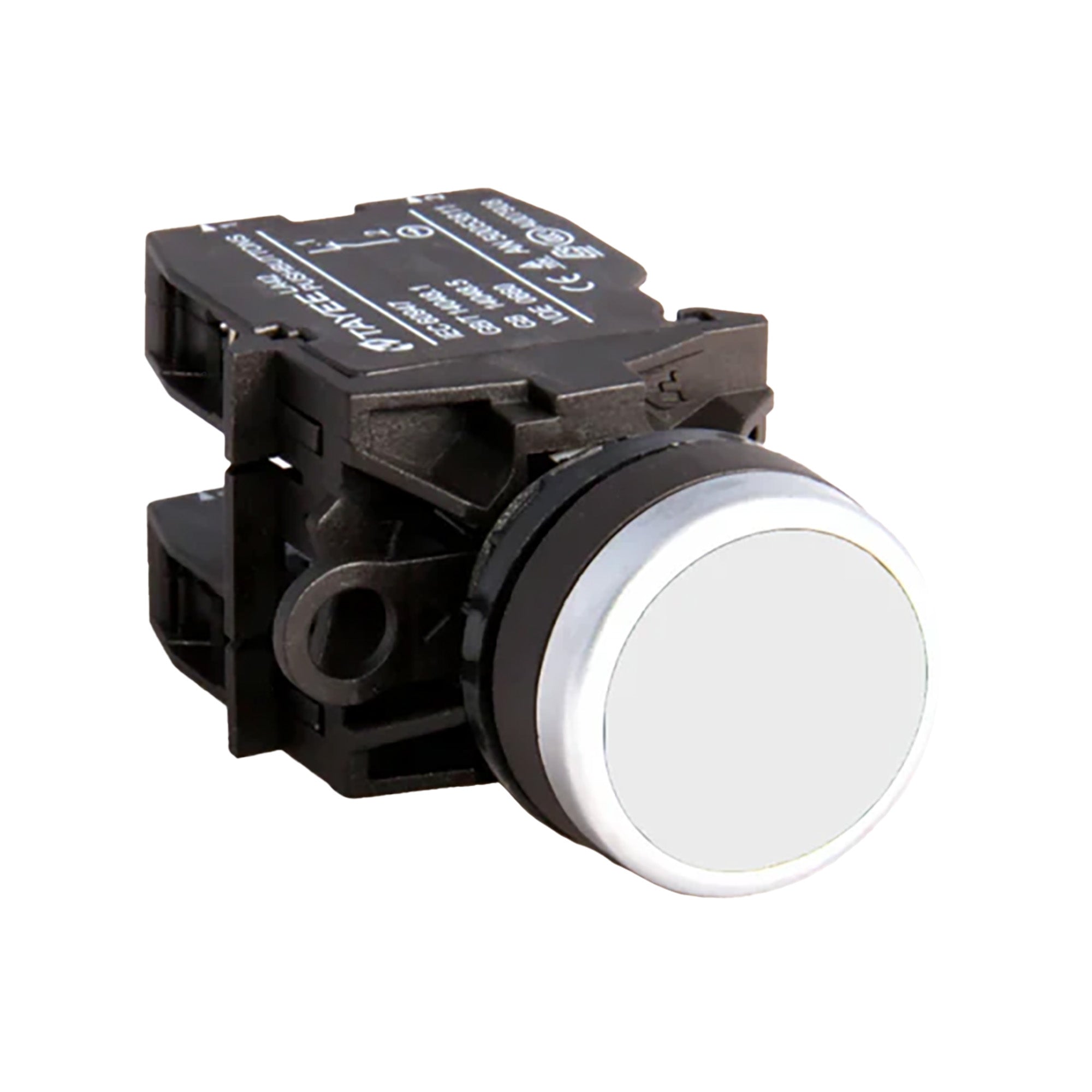

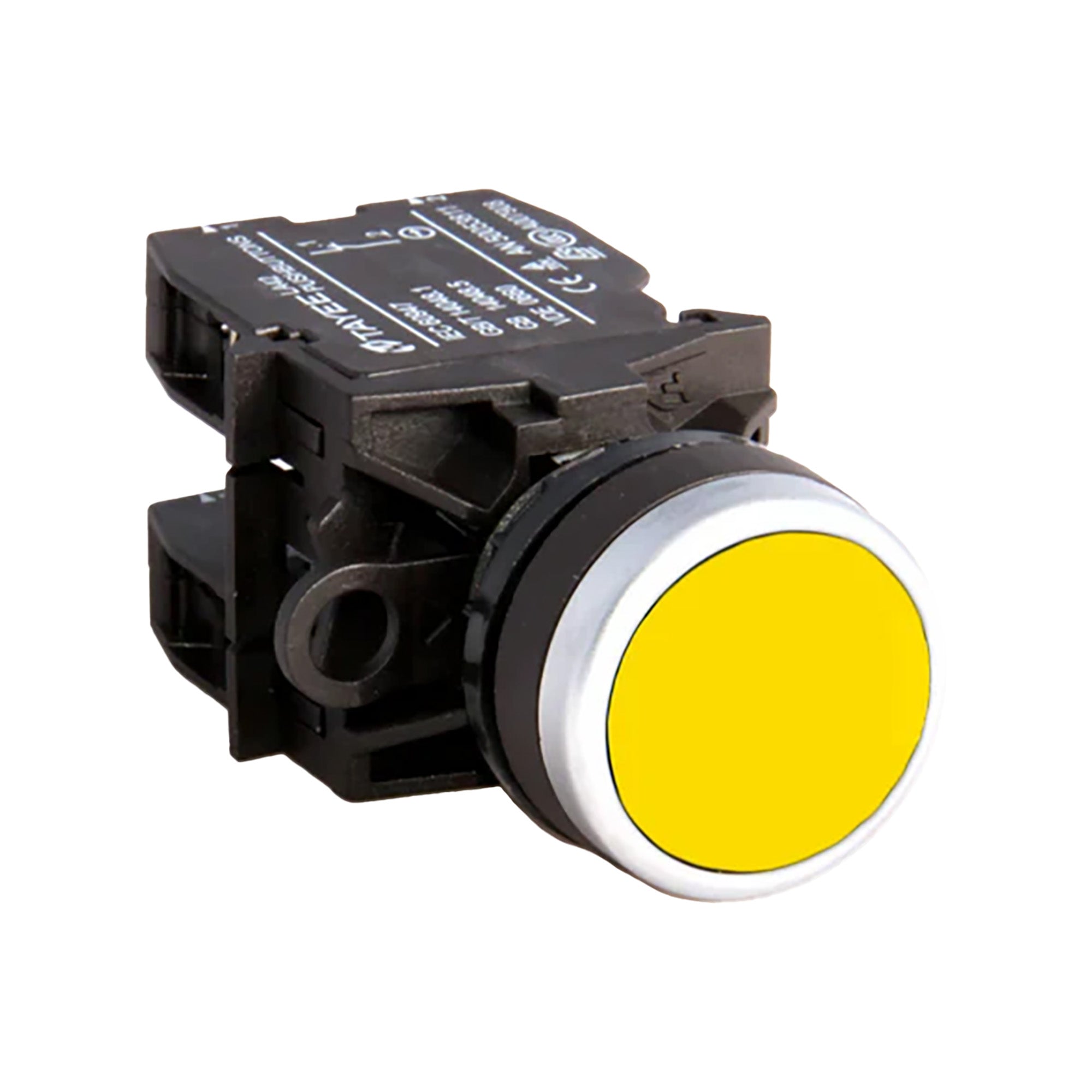

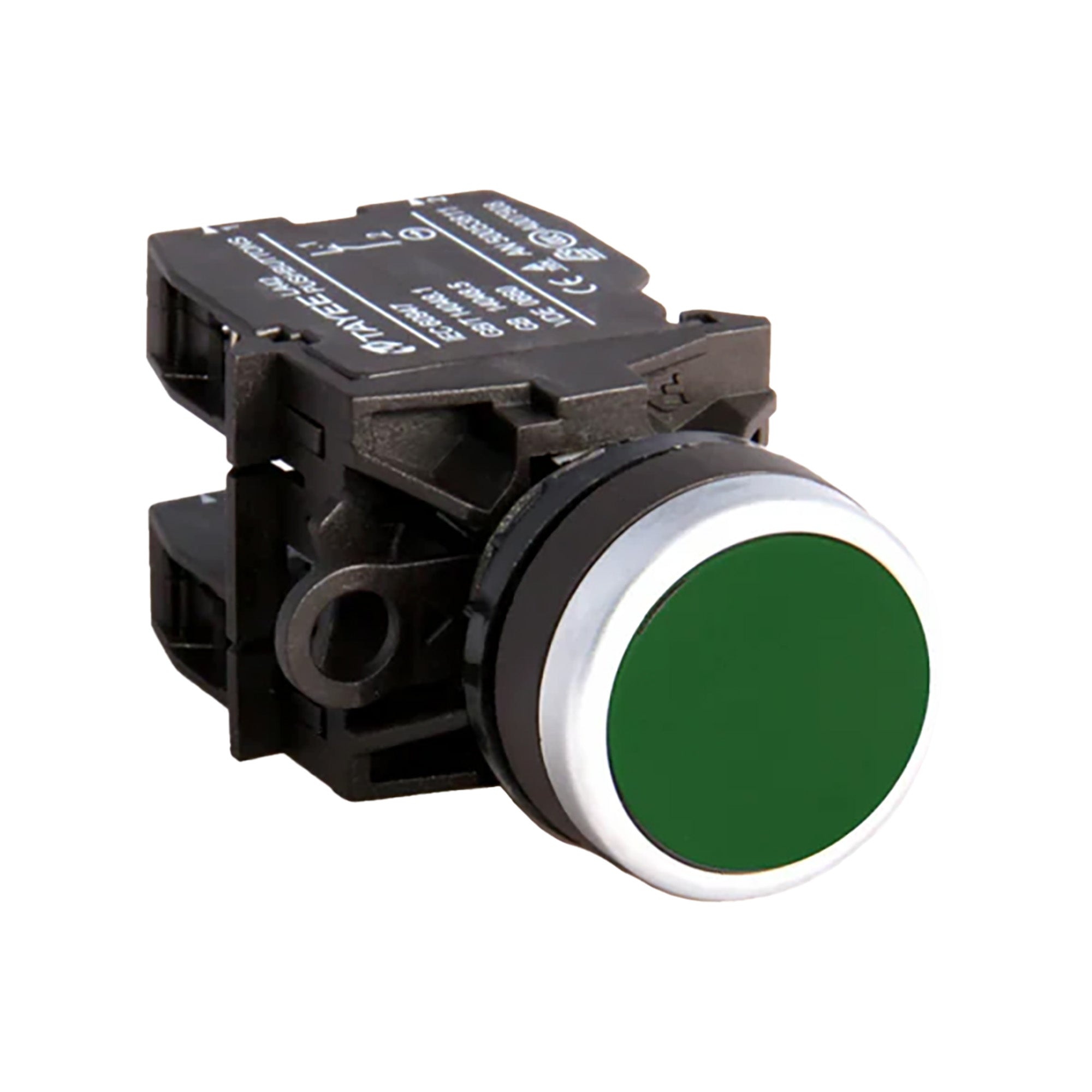

This 22mm (7/8") Maintained push button switch includes 1 removable normally open (N.O.) and 1 removable normally closed (N.C.) contact block for applications requiring a momentary double pull single throw (D.P.S.T) contact signal.

Flush face versions are available for moderate protection against accidental actuation.

Specifications: Working Temperature Range: -25 to +60 degrees Centigrade Rated Insulation Voltage: 600 Volts Mechanical Life: ~1,000,000 uses @ 20 Hz Sealant Rating: IP65 Electrical Life: AC-15 operation: ~600,000 @ 20Hz DC-13 operation: ~250,000 @ 20Hz

IEC 60947 CE recognized

Specifications

  • Weight: 0.25 pounds
  • NEMA/IP Rating: IP65
  • Color: Black, Red, Yellow, Green, Blue, White
  • Contact Rating: ~250,000 operations @ 20Hz
  • Contact Type: (2) NO Contacts Per Switch
