GPH 105 dB UL Panel Mount or Enclosed Audible Alarm

Voltage
Mounting Options
SKU: GPH1SEDC24G
Regular price $165.00
Description

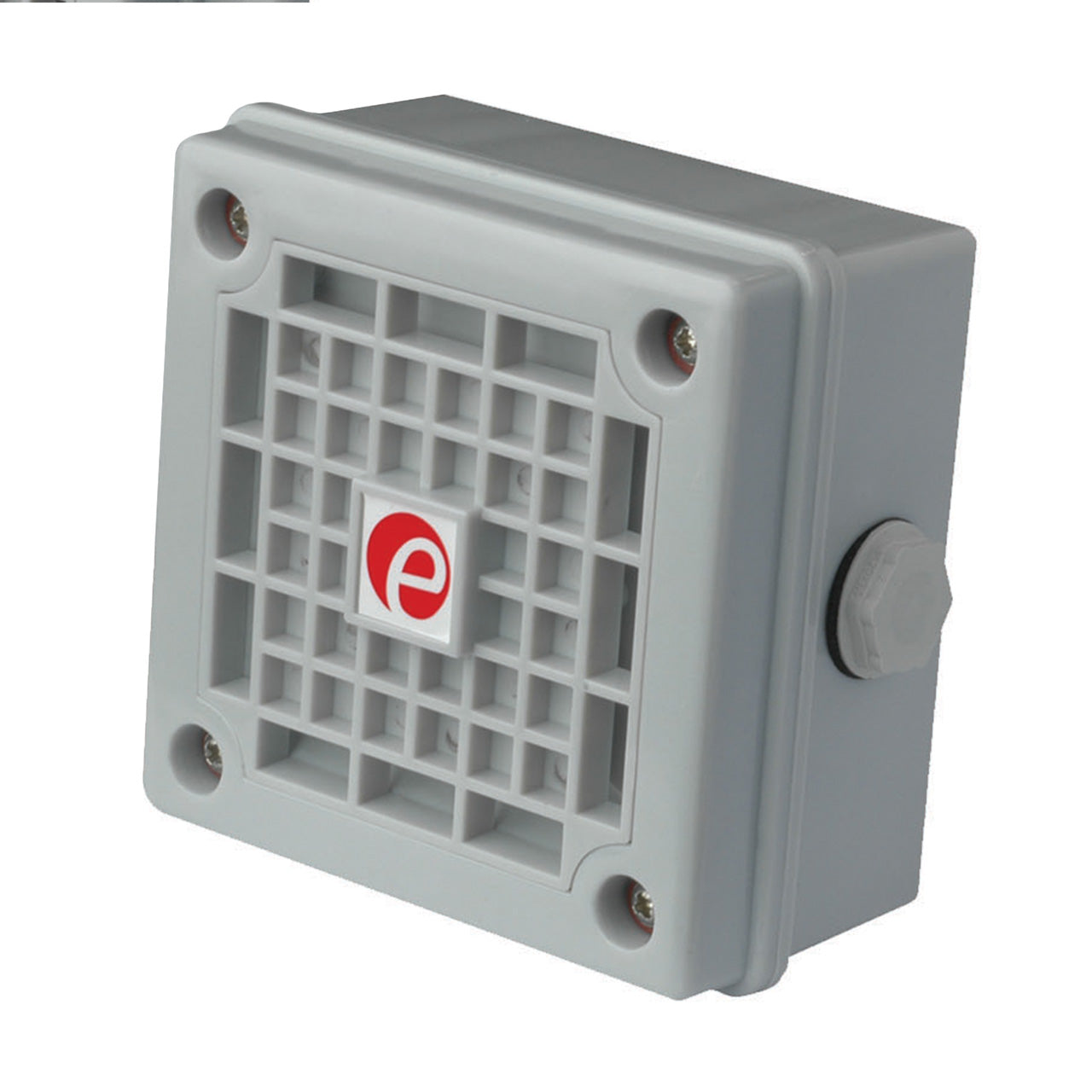

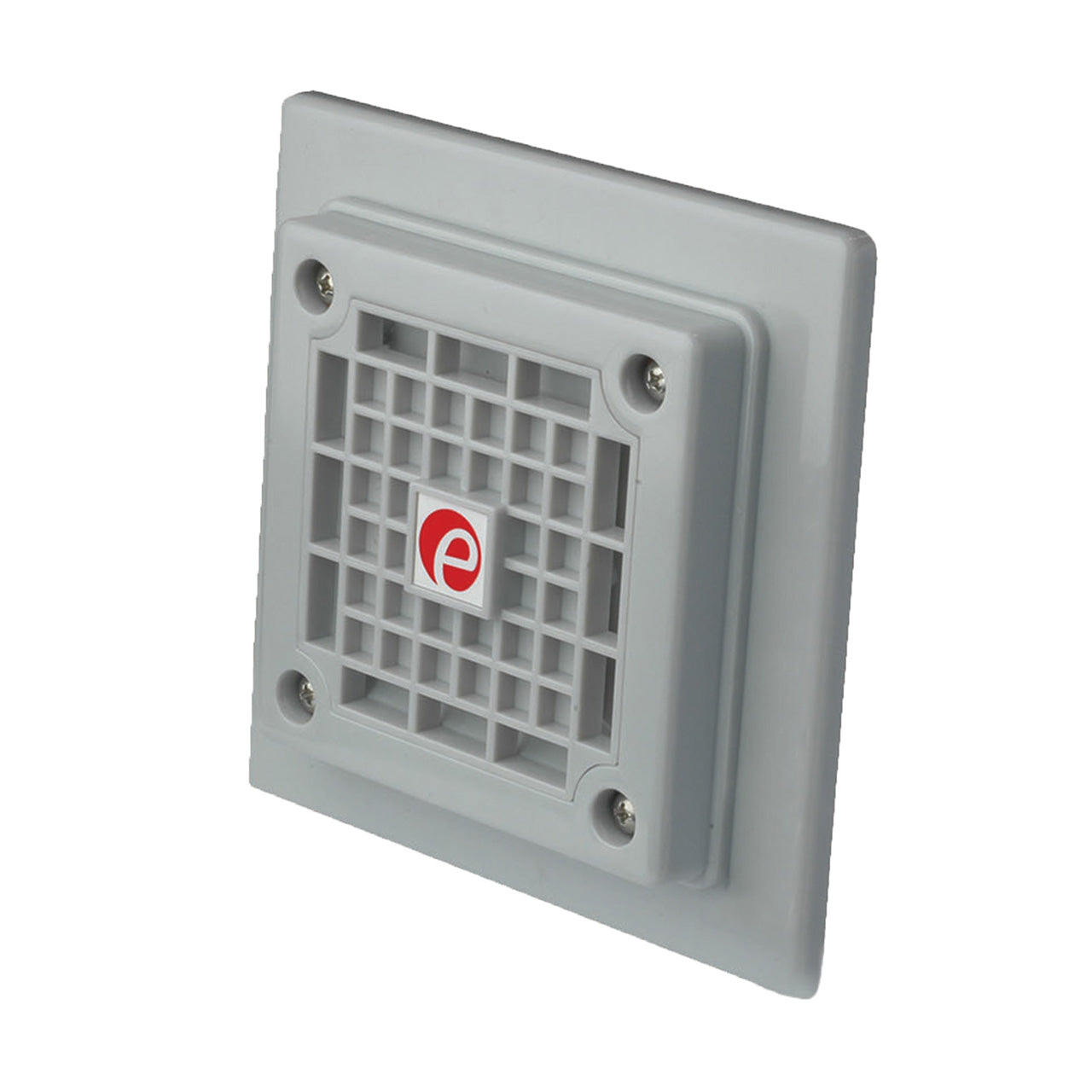

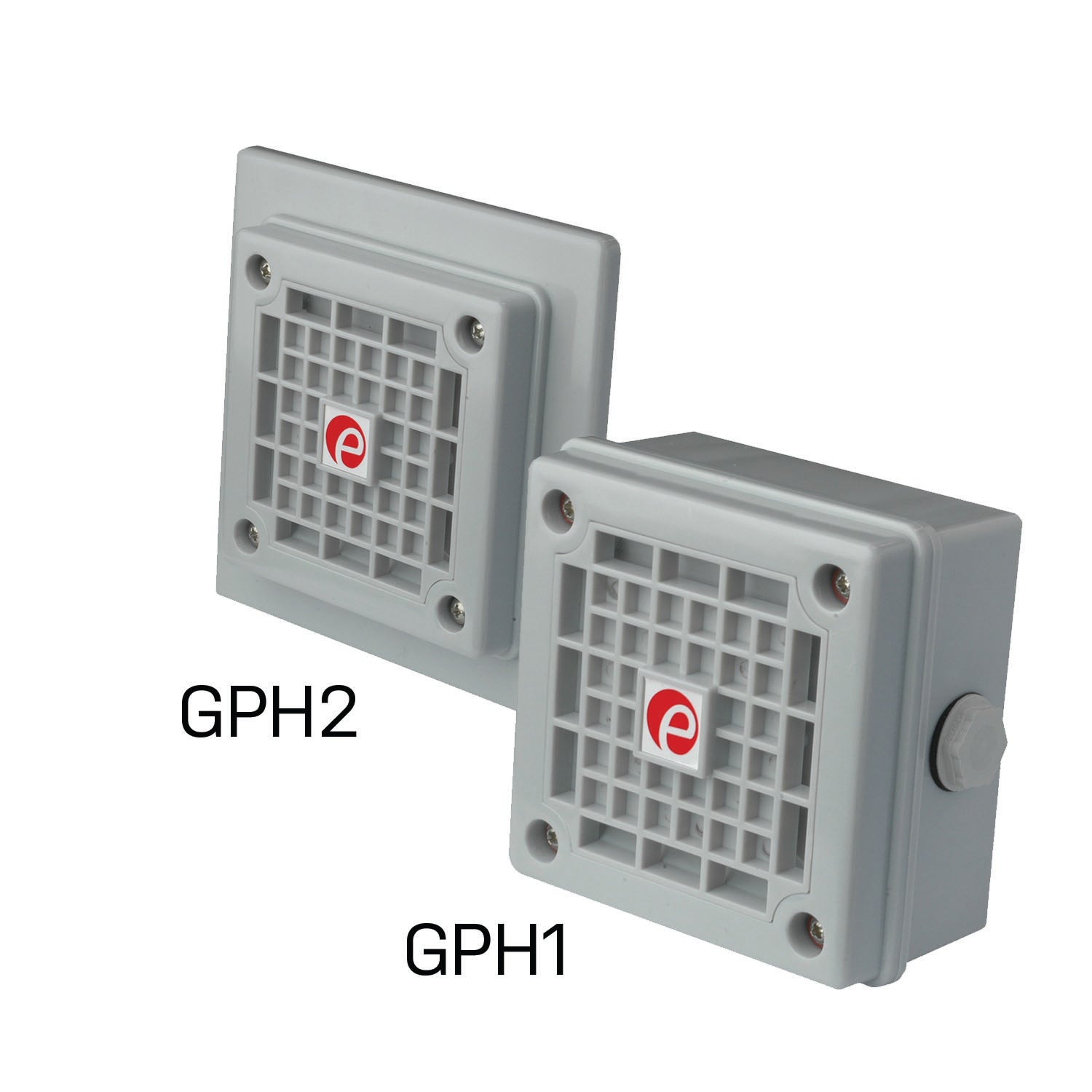

The GPH1 & GPH2 is a 105dB Industrial audible alarm mounts on the front of an electrical enclosure (GPH2) or surface mounted (GHP1).  This is an electronic version of the industry standard electro-mechanical buzzer used for (vibratone ® 350 & vibrahorn).  This is continuous duty and extremely reliable!

Features

  • Electronic, Industrial Audible Alarm
  • Reliable & Low Current Alternative to Mechanical Solenoid Buzzer
  • Adjustable volume 105dB(A) @ 1m +/- 3dB,  [96dB(A) @ 10ft/3m]
  • Rated for Continuous Use
  • 10-30VDC, 115 VAC & 230 VAC models
  • Automatic Synchronization on Multi-sounder System
  • Stainless Steel Mounting Hardware
  • Duplicate Cable Terminations (in & out for daisy-chain installation)
  • UL & cULs approved
  • 3 Tones
  • GPH1: IP66 (UL Type 4/4X/13)
  • GPH2: IP54 (UL Type 13/3R)
  • Custom Tone and Frequencies Available on Request
Voltage
Current
24V DC
62 mA
115V AC
40 mA
230V AC
50 mA
