GPH 110 dB UL Panel Mount or Enclosed Audible Alarm

Voltage
Mounting Options
SKU: GPH3SEDC024G

Call for Quote and Customization

Description

The GPH3 & GPH4 is a 110dB Industrial audible alarm mounts on the front of an electrical enclosure (GPH4) or surface mounted (GHP3). This is an electronic version of the industry standard electro-mechanical buzzer used for (vibratone ® 350 & vibrahorn). This is continuous duty and extremely reliable!

Model Types

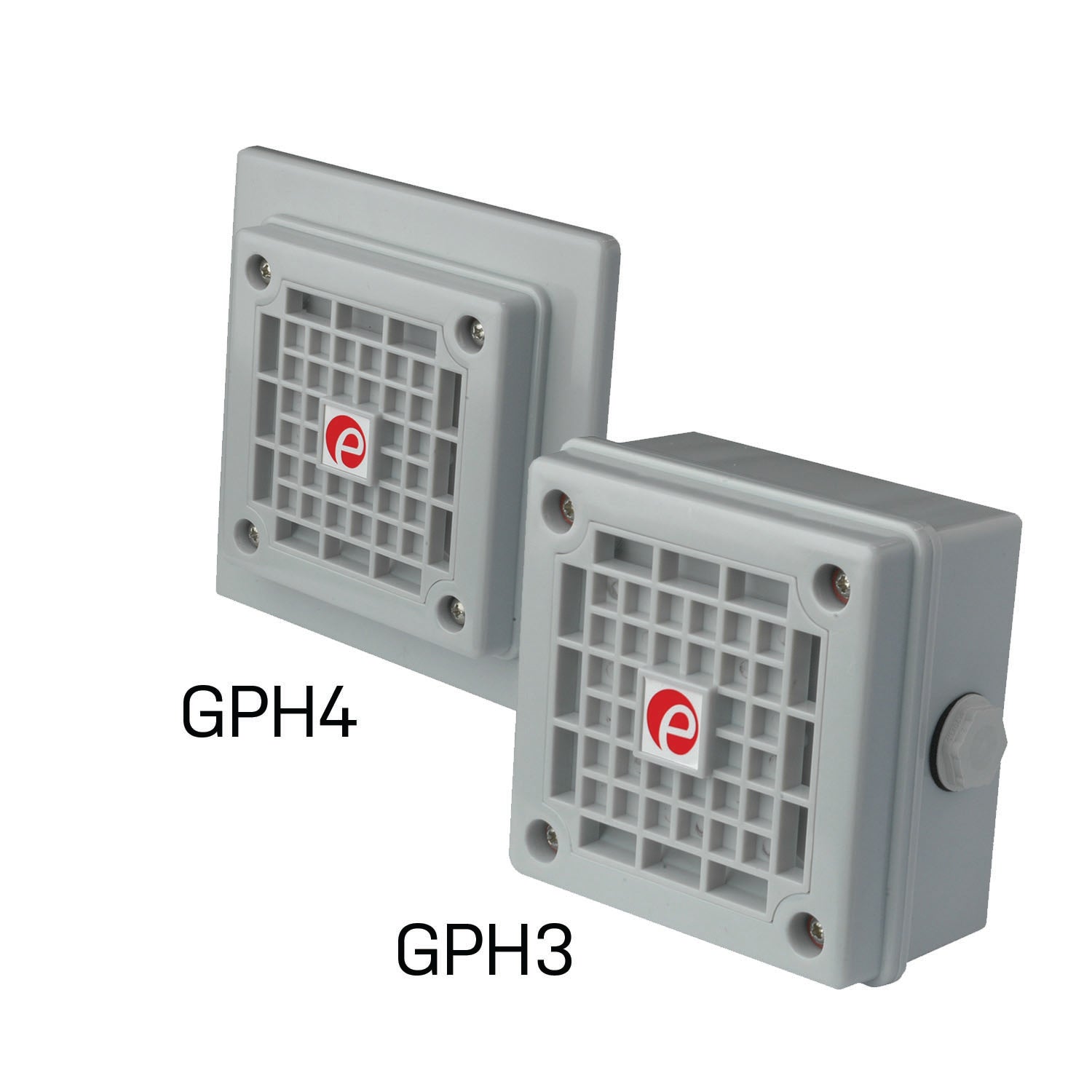

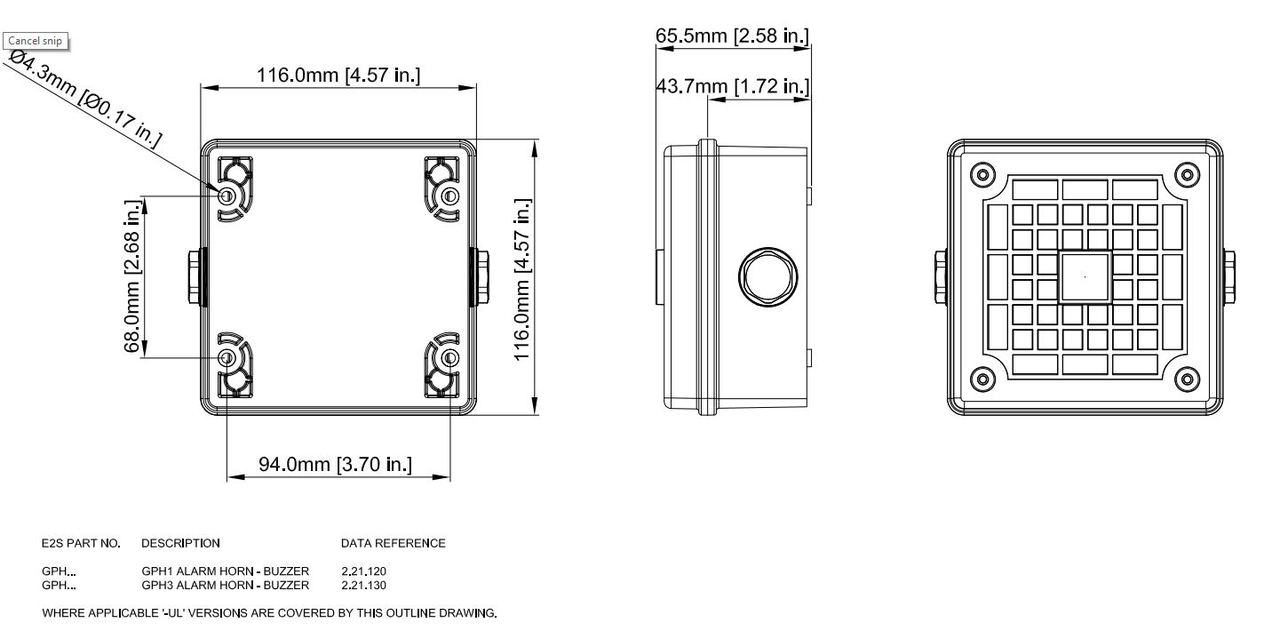

GPH3 - Enclosed, High Output Electronic Audible Alarm

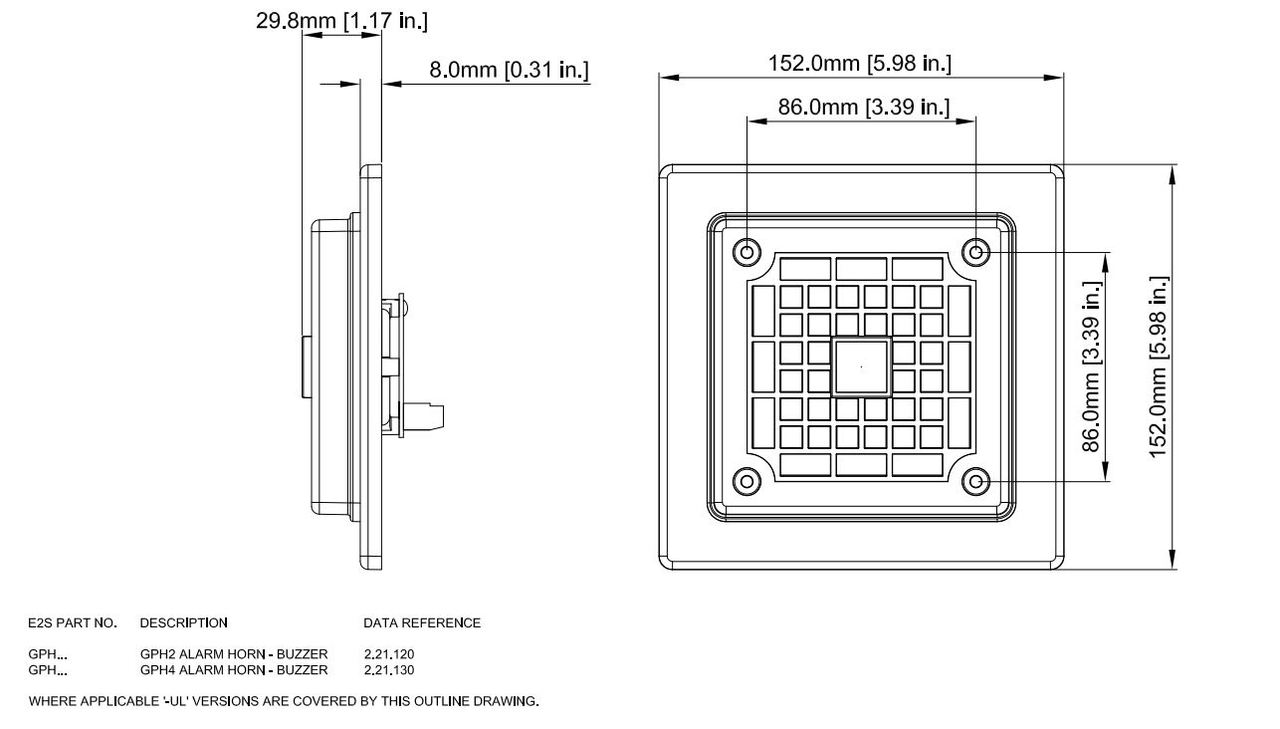

GPH4 - Panel Mount, High Output Electronic Audible Alarm

Features

  • Electronic, Industrial Audible Alarm
  • Reliable & Low Current Alternative to Mechanical Solenoid Buzzer
  • 110dB(A) @ 1m +/- 3dB,  [101dB(A) @ 10ft/3m]
  • Rated for Continuous Use
  • Automatic synchronization on mult-sounder system
  • 10-30VDC, 115 VAC & 230 VAC models
  • Stainless Steel Mounting Hardware
  • Duplicate Cable Terminations (in & out for daisy-chain installation)
  • Tropicalisation available on request
  • UL & cULS, CE, EAC approved
  • 3 Tones
  • GPH3: IP66 (UL Type 4/4X/13)
  • GPH4: IP54 (UL Type 13/3R)
  • Custom Tone and Frequencies Available on Request
GPH 110 dB UL Panel Mount or Enclosed Audible Alarm
Signaworks

GPH 110 dB UL Panel Mount or Enclosed Audible Alarm

Voltage
Current
24V DC
52 mA
115V AC
36 mA
230V AC
18 mA
