Industrial Toggle Selector Switches

This is a 22mm (7/8") maintained 2 position toggle switch which includes 2 removable normally open (N.O.) contact blocks.

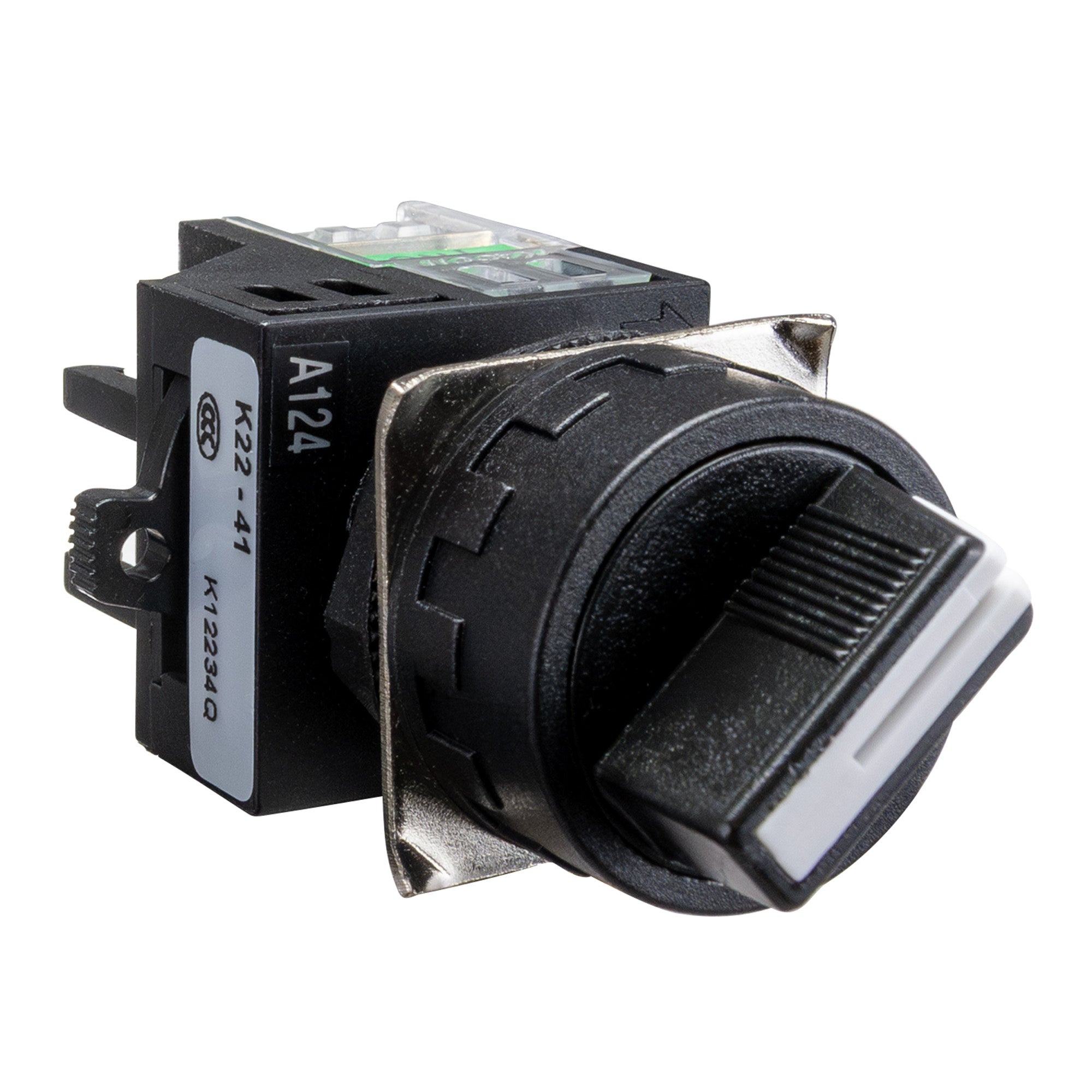

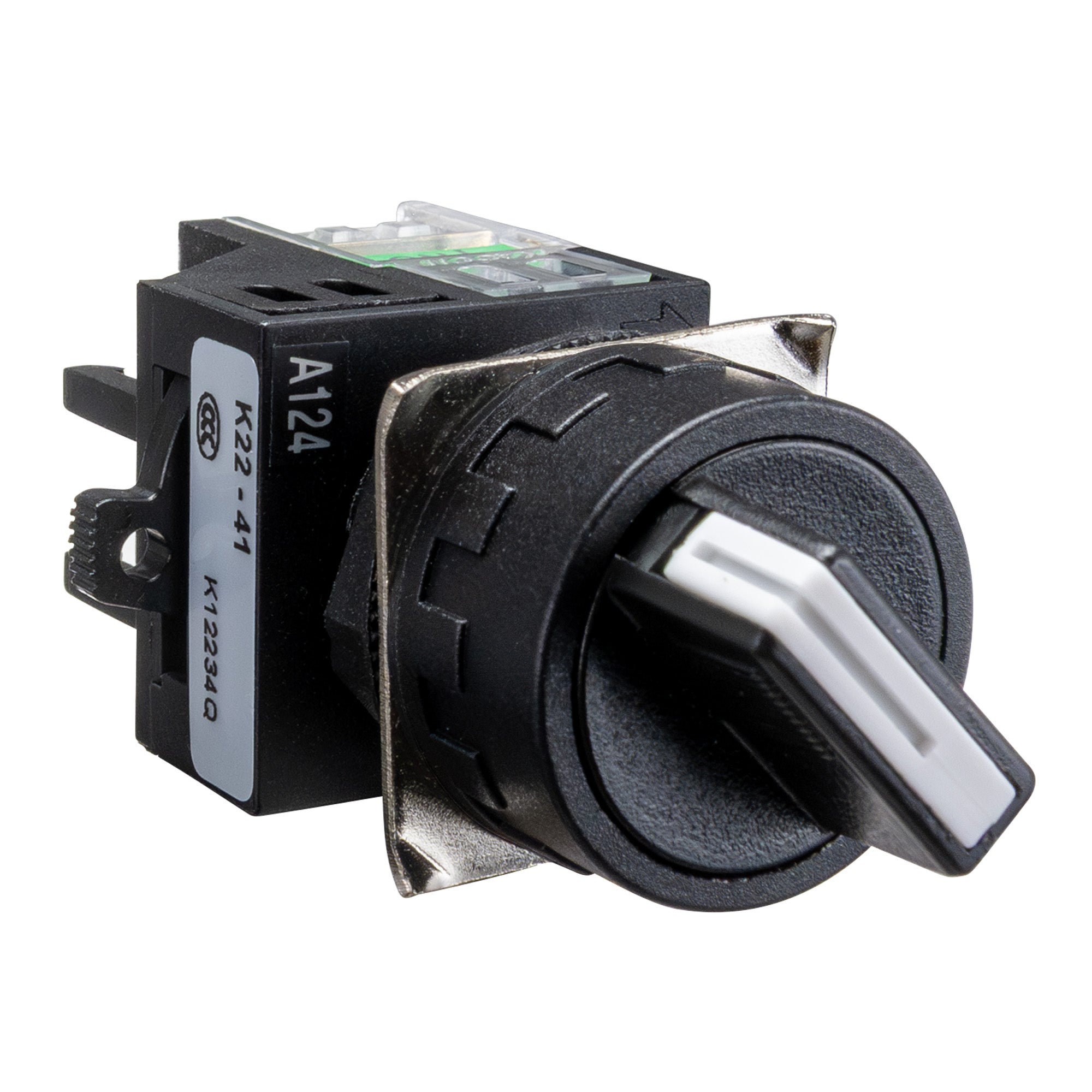

2 Position Operation (where X is closed and O is open contact): Position 1: O O (shown) Position 2: X X

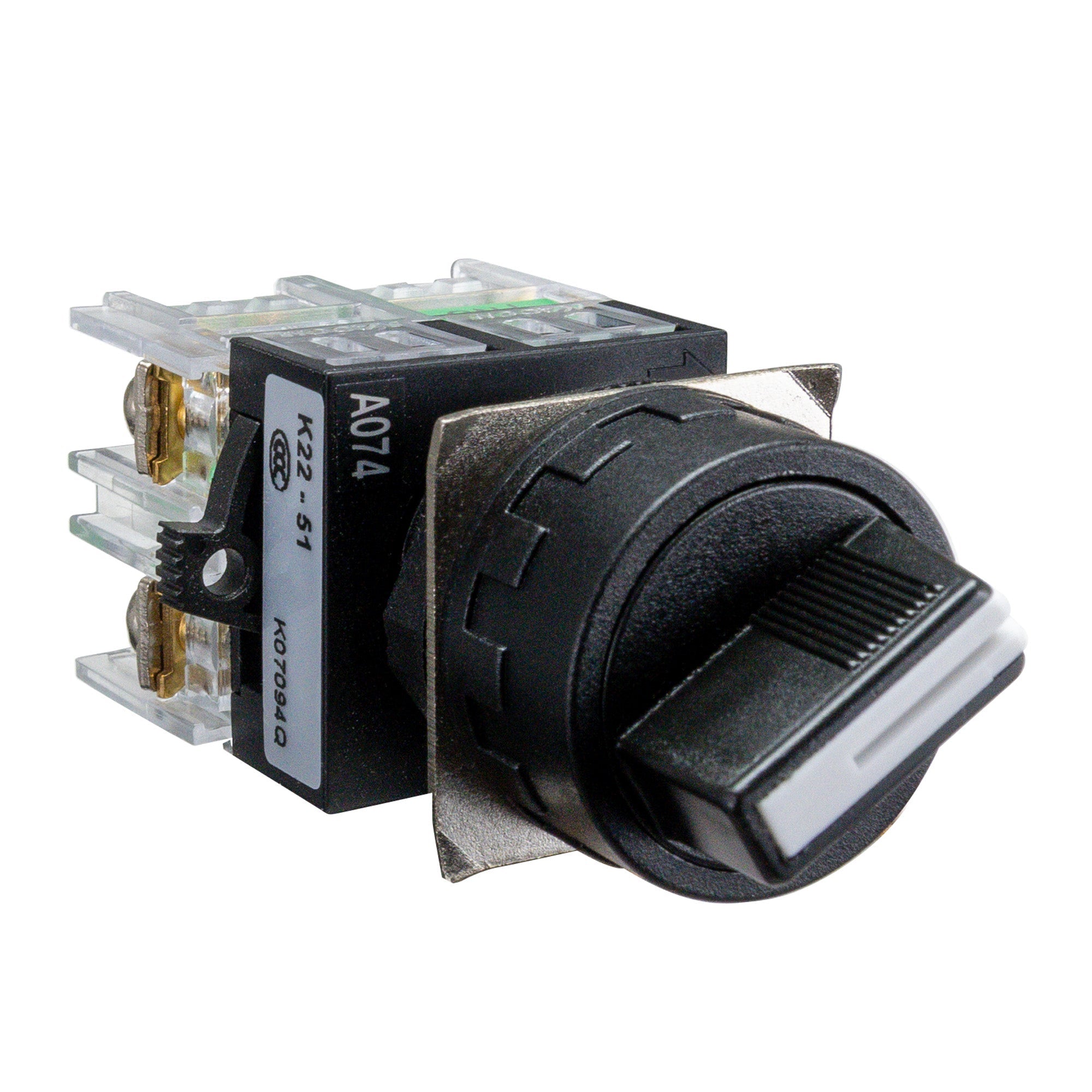

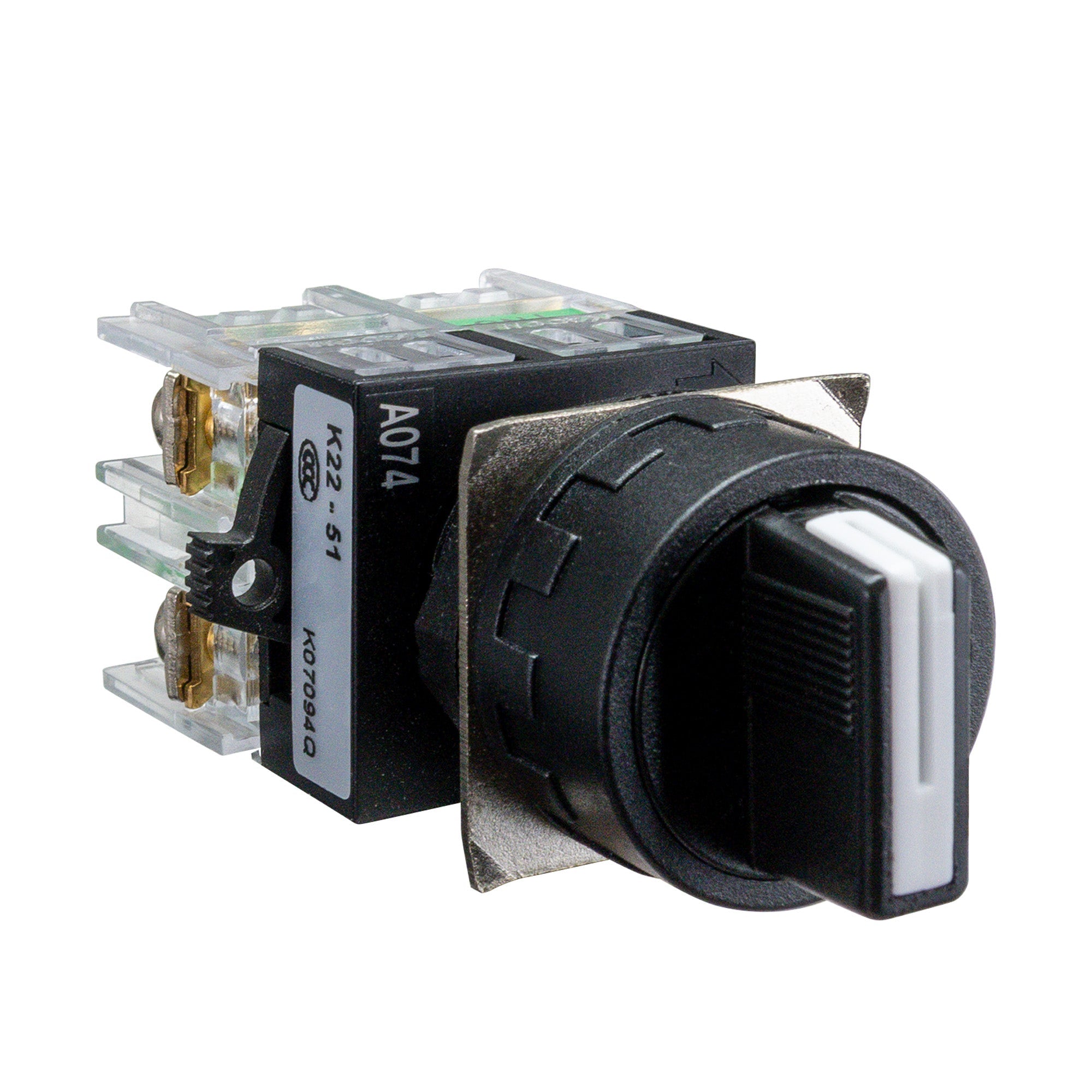

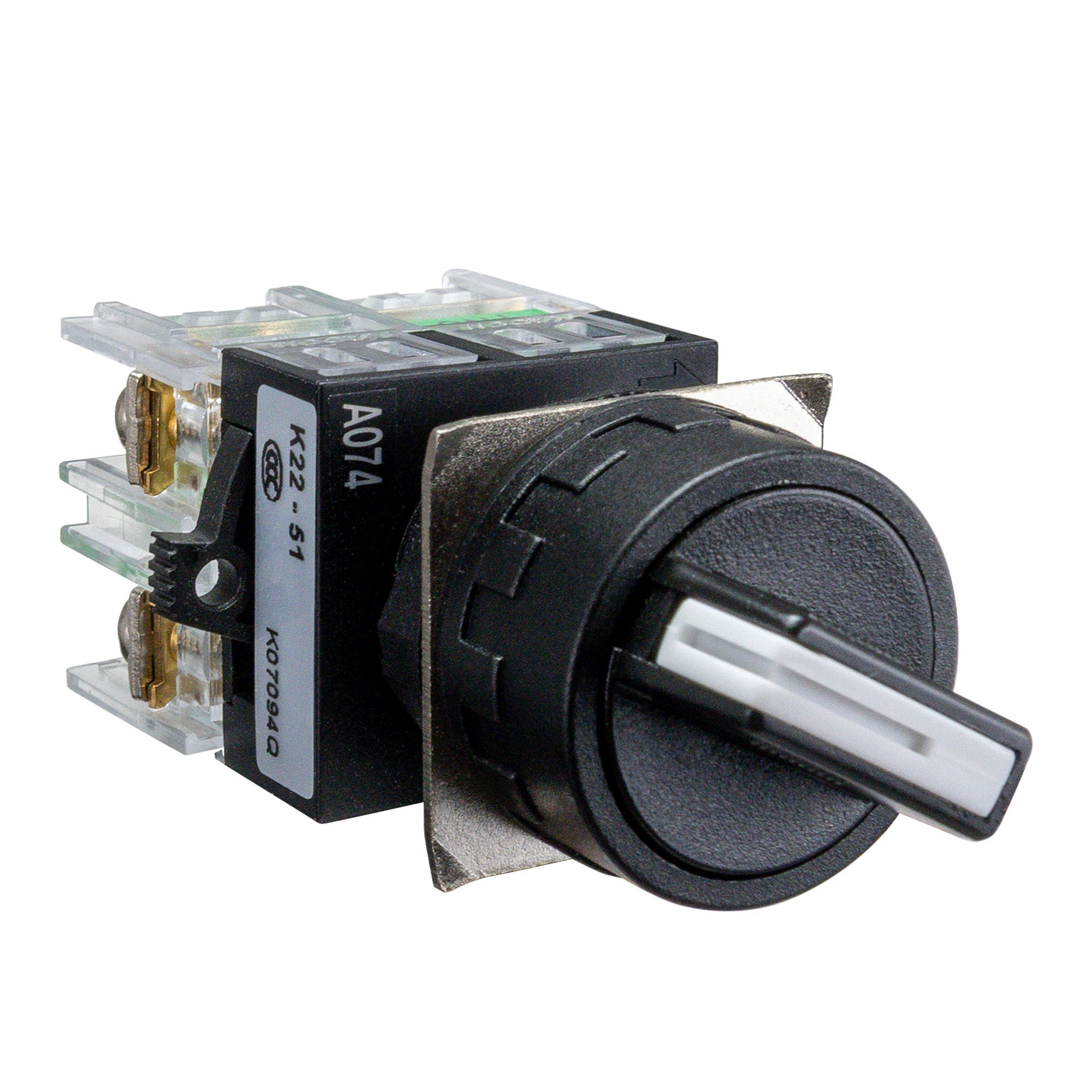

3 Position Operation (where X is closed and O is open contact): Left Position: X O Center Position: O O (shown) Right Position: O X

Specifications: Working Temperature Range: -25 to +60 degrees Centigrade Rated Insulation Voltage: 400 Volts Mechanical Life: ~300,000 uses @ 2 Hz Sealant Rating: IP65 Electrical Life: AC-15 operation: ~600,000 @ 20Hz DC-13 operation: ~250,000 @ 20Hz

Specifications

• IEC 60947 CE recognized
• Weight: 0.25 pounds
• NEMA/IP Rating: IP65
• Contact Type: (2) NO Contacts Per Switch
• Operation: Maintained
• Array: 2 and 3 Position
