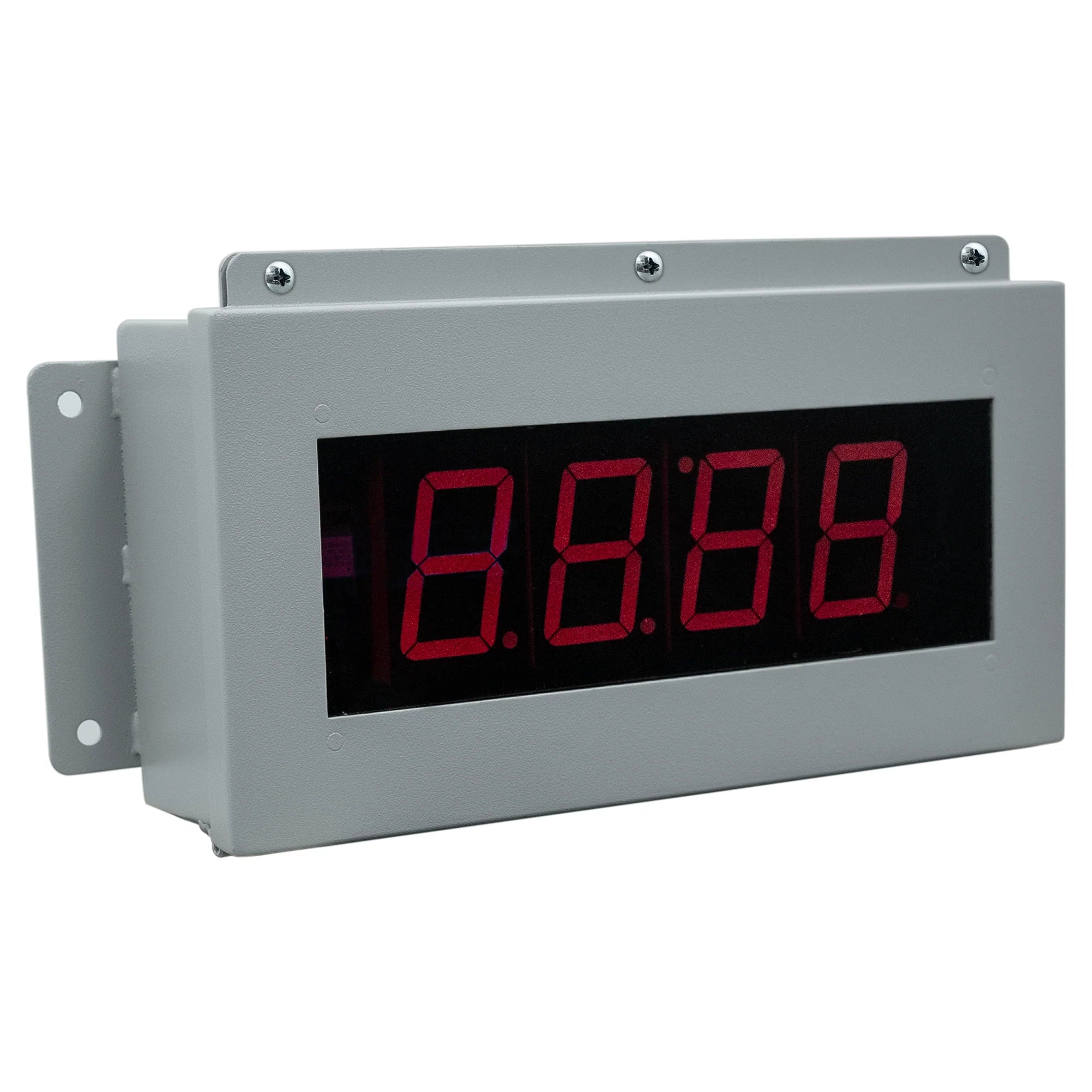

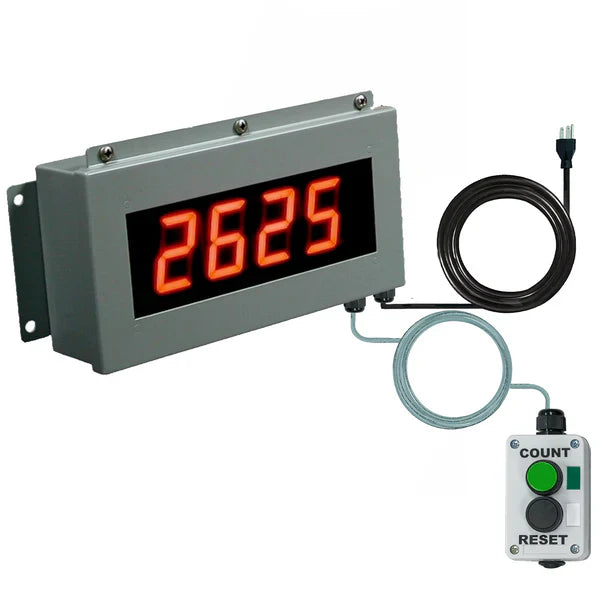

LED Industrial Timer with Control Switches

American Ledgible LED Timers and Counters from Signaworks can be used in any combination of custom assembly. These timers and counters are great tools for real-time data analysis and downtime monitoring.

Features

Counter + Timer

Selectable as a Production Counter or Production Timer

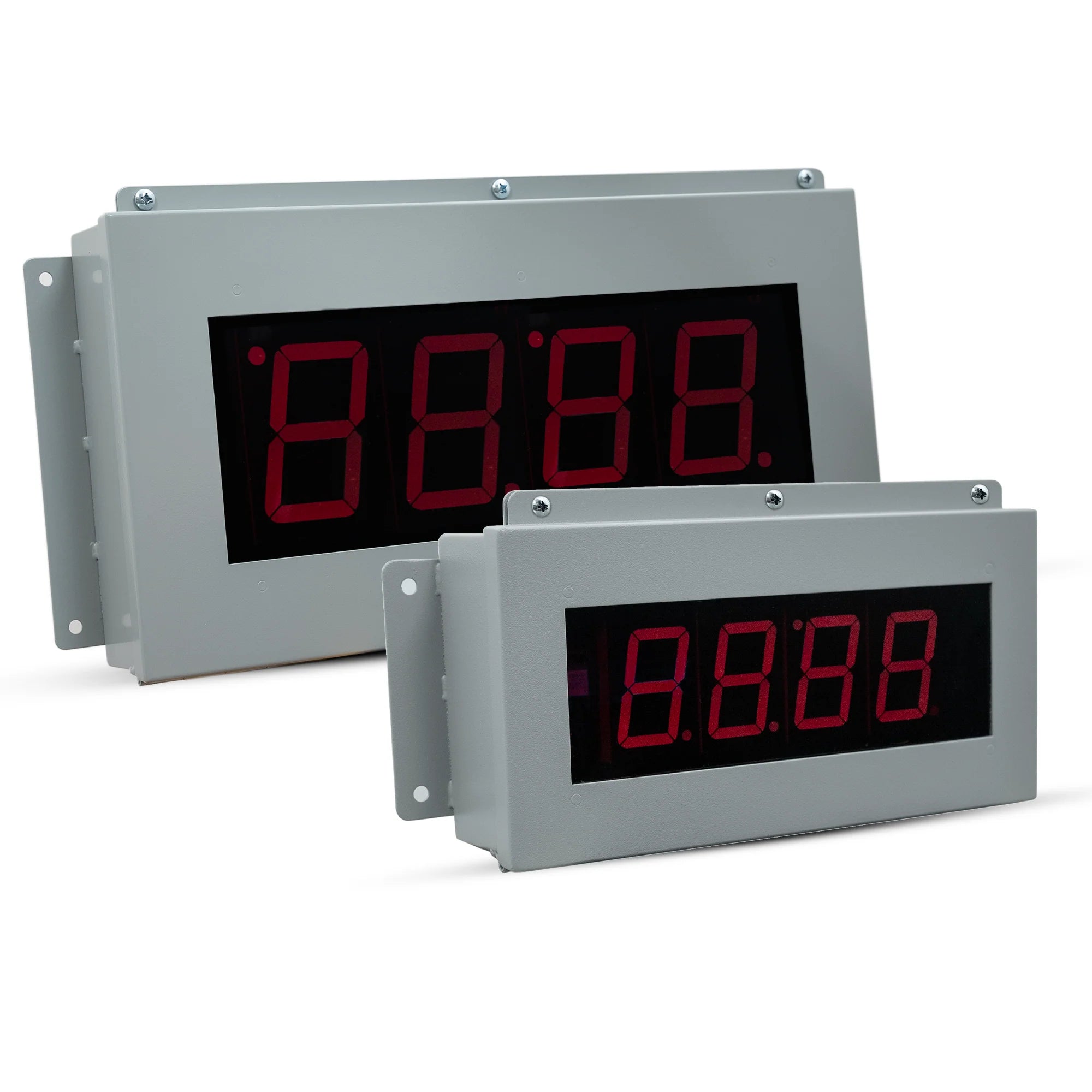

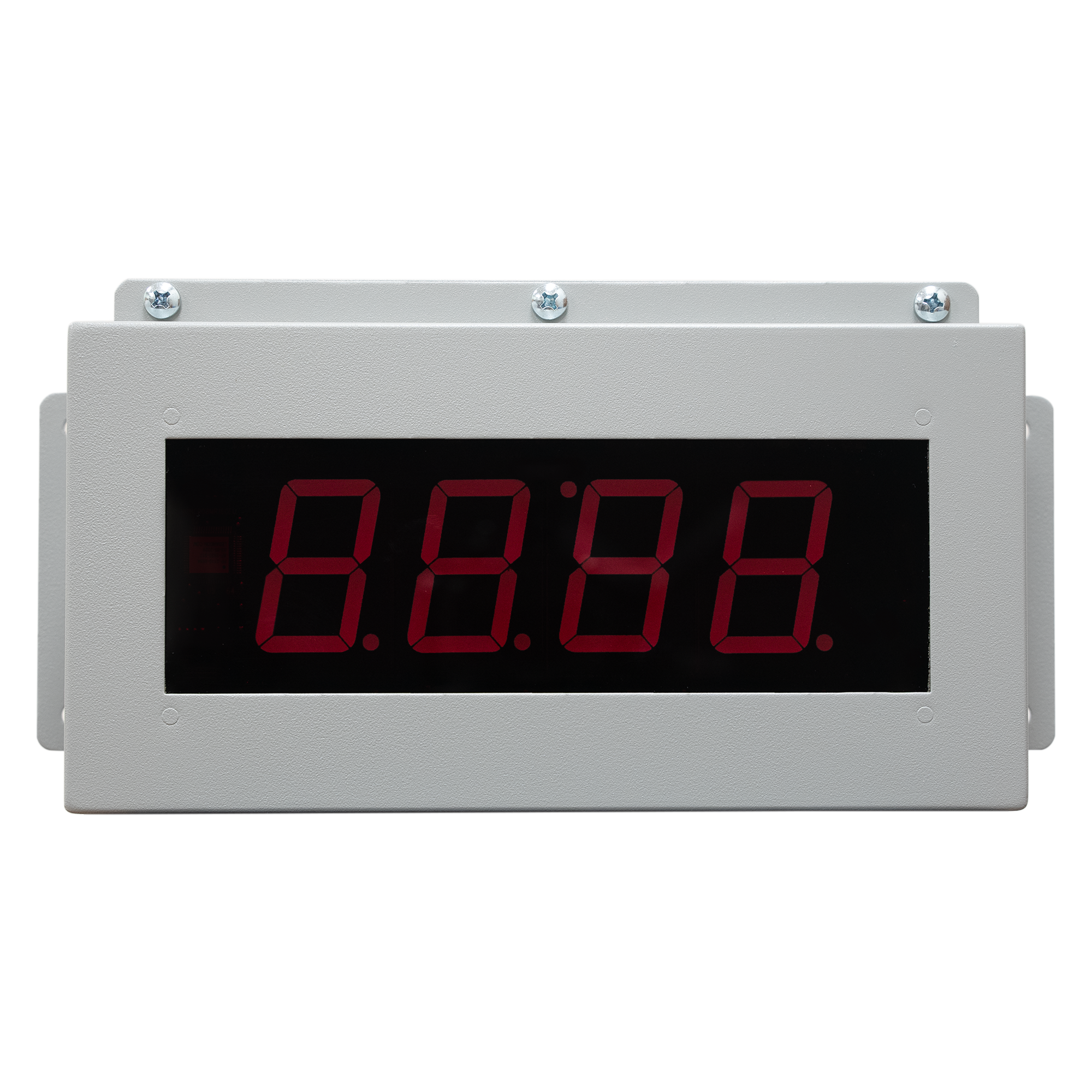

7 segment LED, 2.3 inch high, visible up to 125 feet

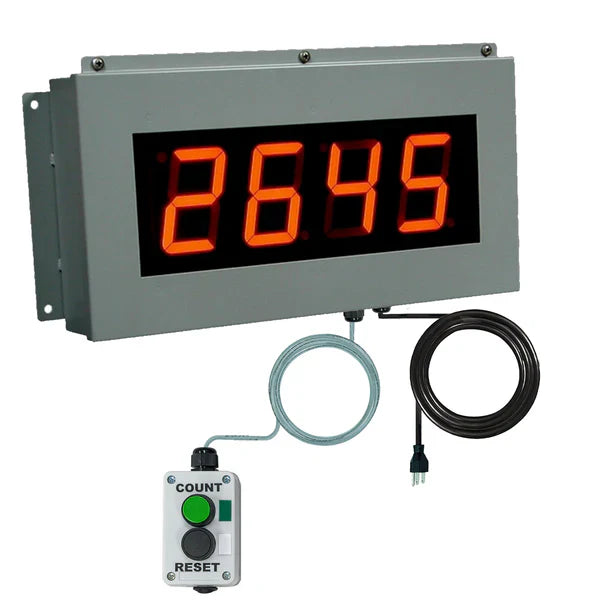

7 segment LED, 4 inch high, visible up to 200 feet

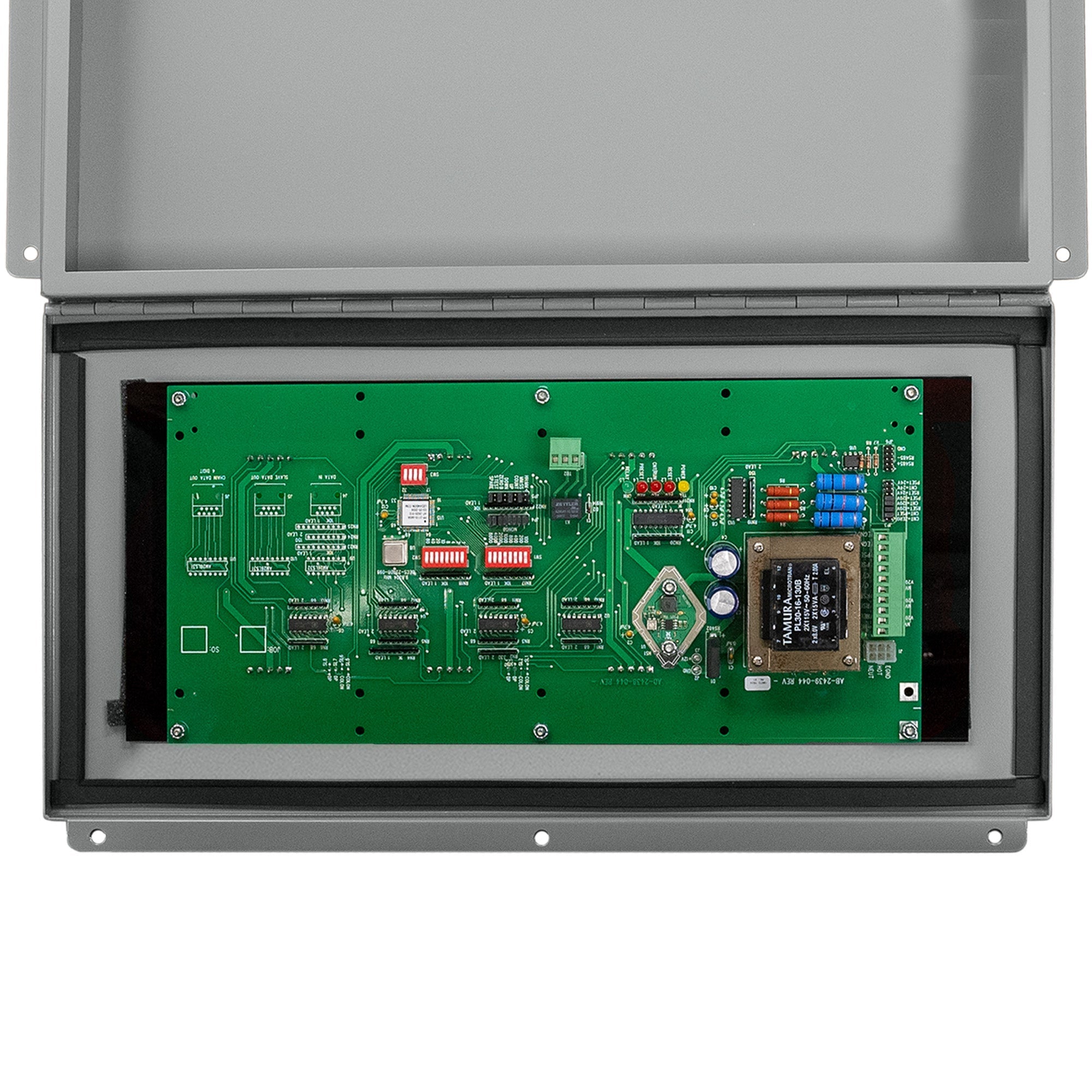

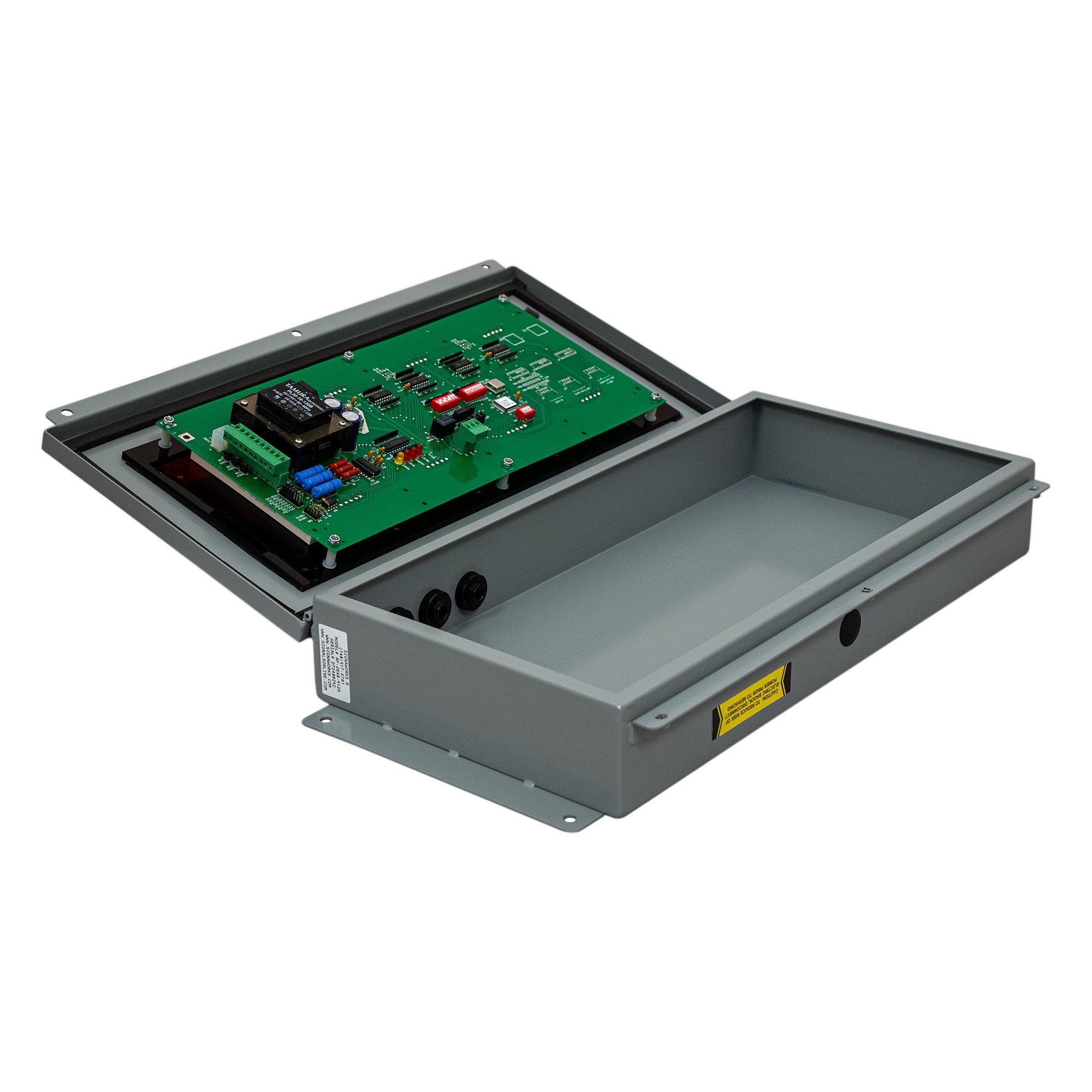

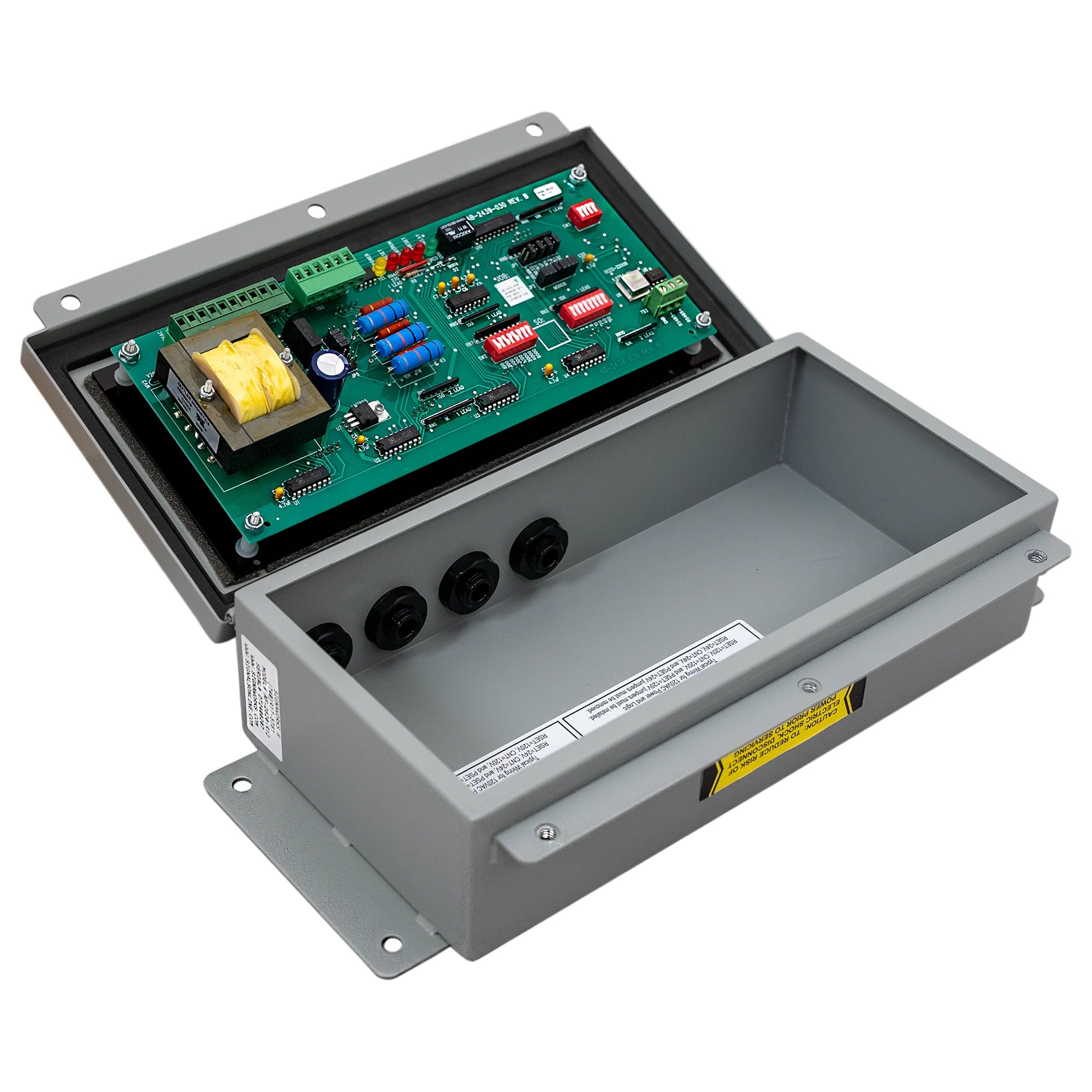

NEMA 12, gray, 16 Gauge steel enclosure with hinged door
120 VAC power at 1 amp
Zero or blank setting for any digit not used
Relay output when count/time reaches zero or preset

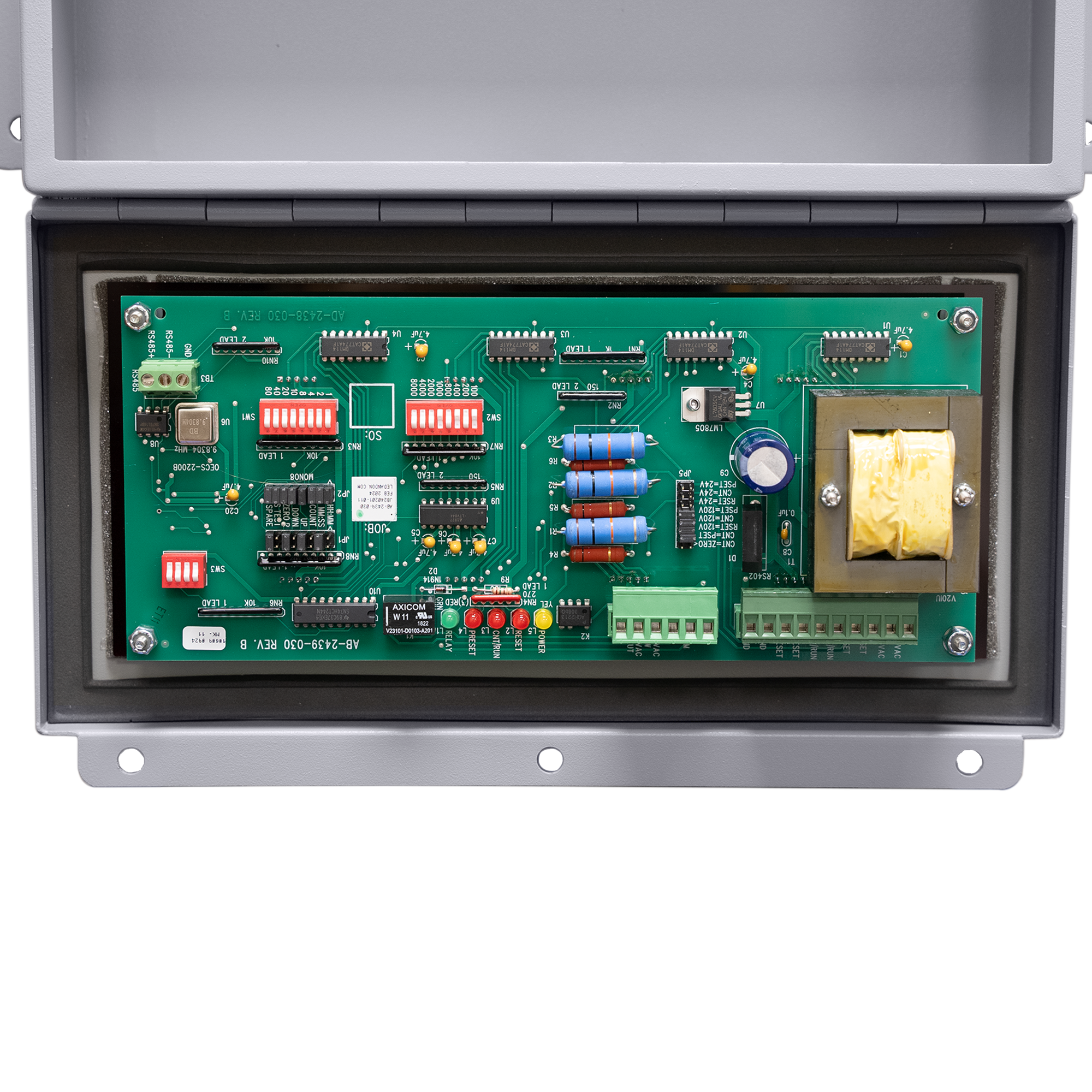

Variety of options and features are jumper selectable
1/4 inch thick acrylic sheet for display window

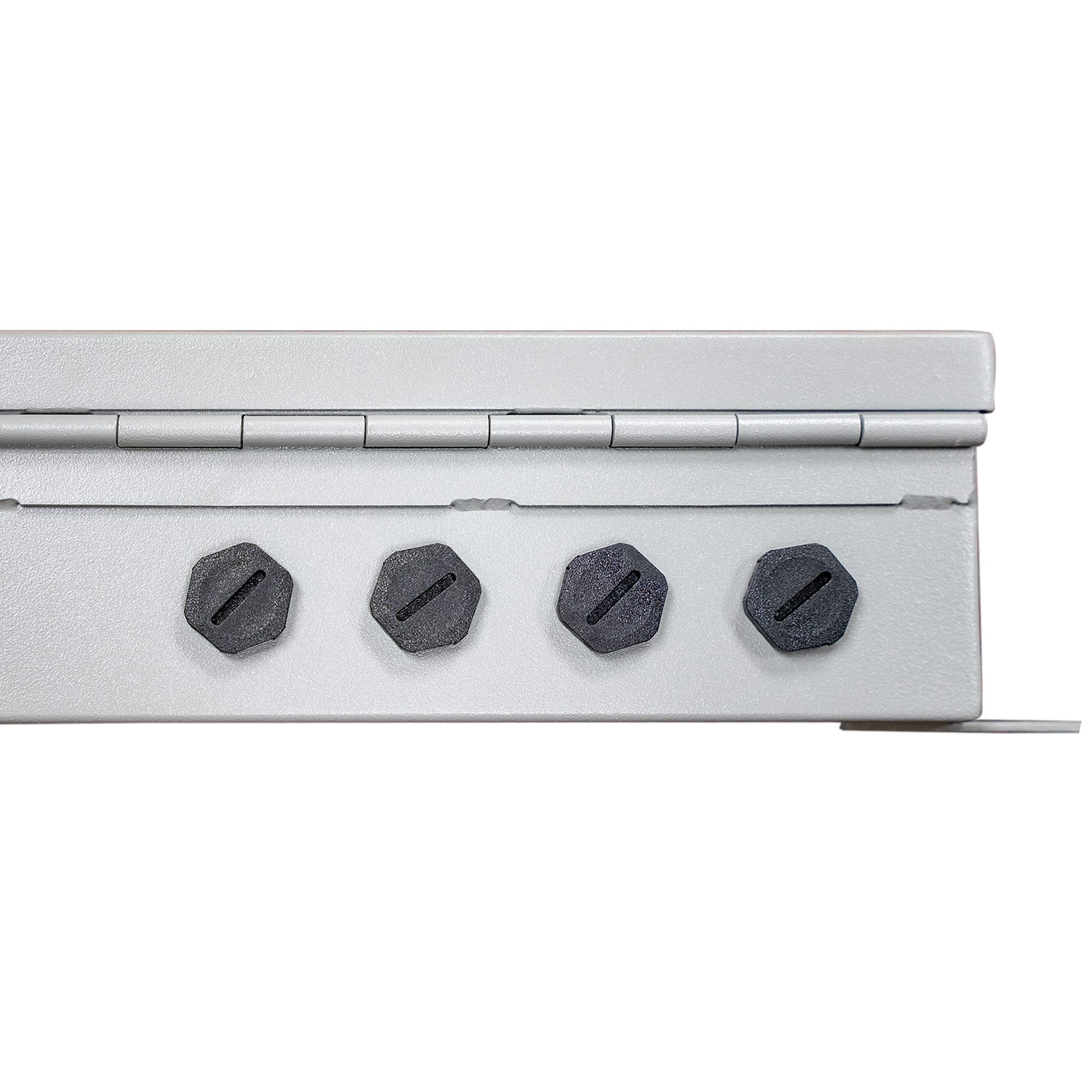

Screw terminal connections

Counter

Count up or count down
Relay output when count reaches zero or preset
120 VAC or 24 VDC count input

Optional Accessories (Call for Quote)

Manual count and reset box (KT-051)
Retro-reflective photo kit box with reset push button (KT-031)

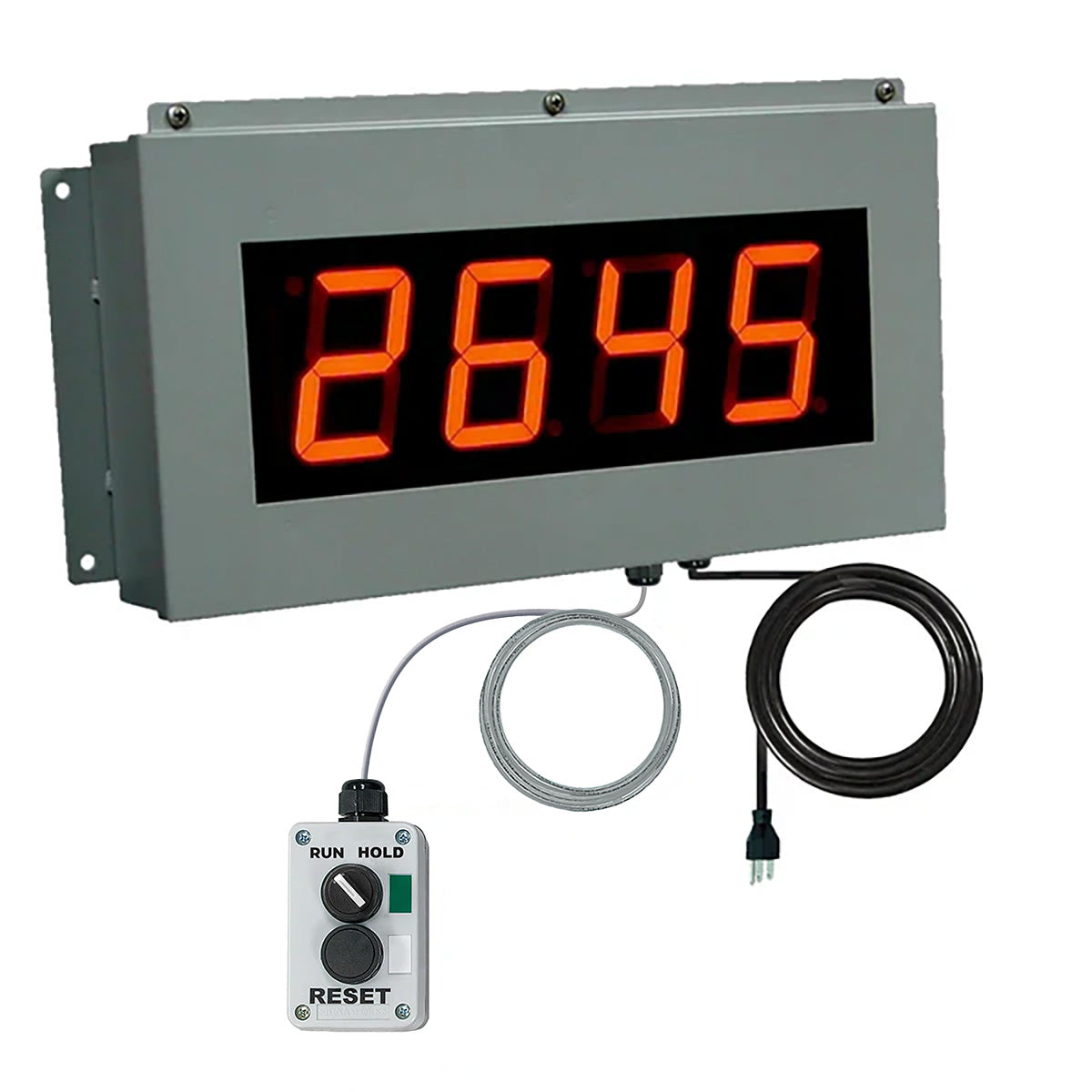

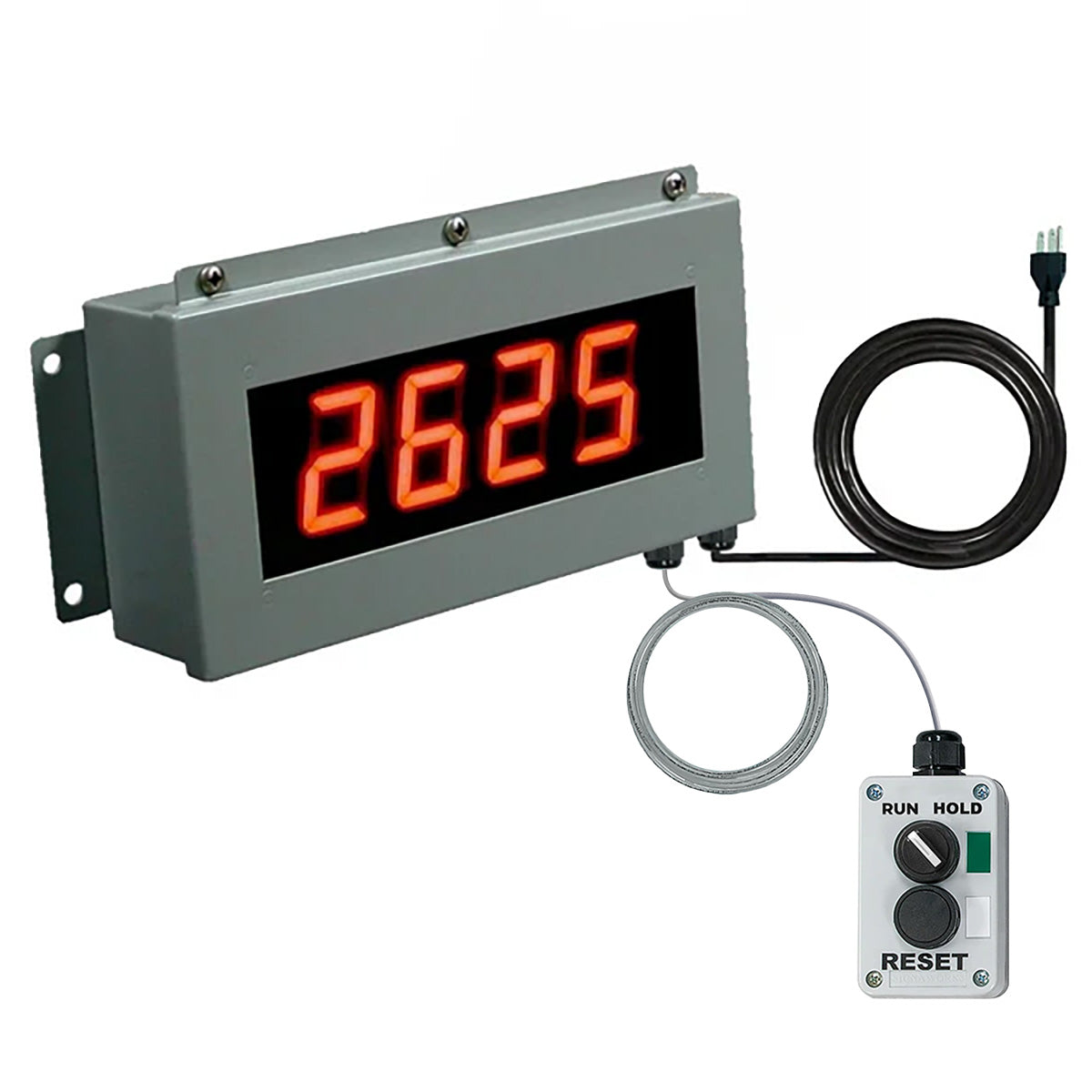

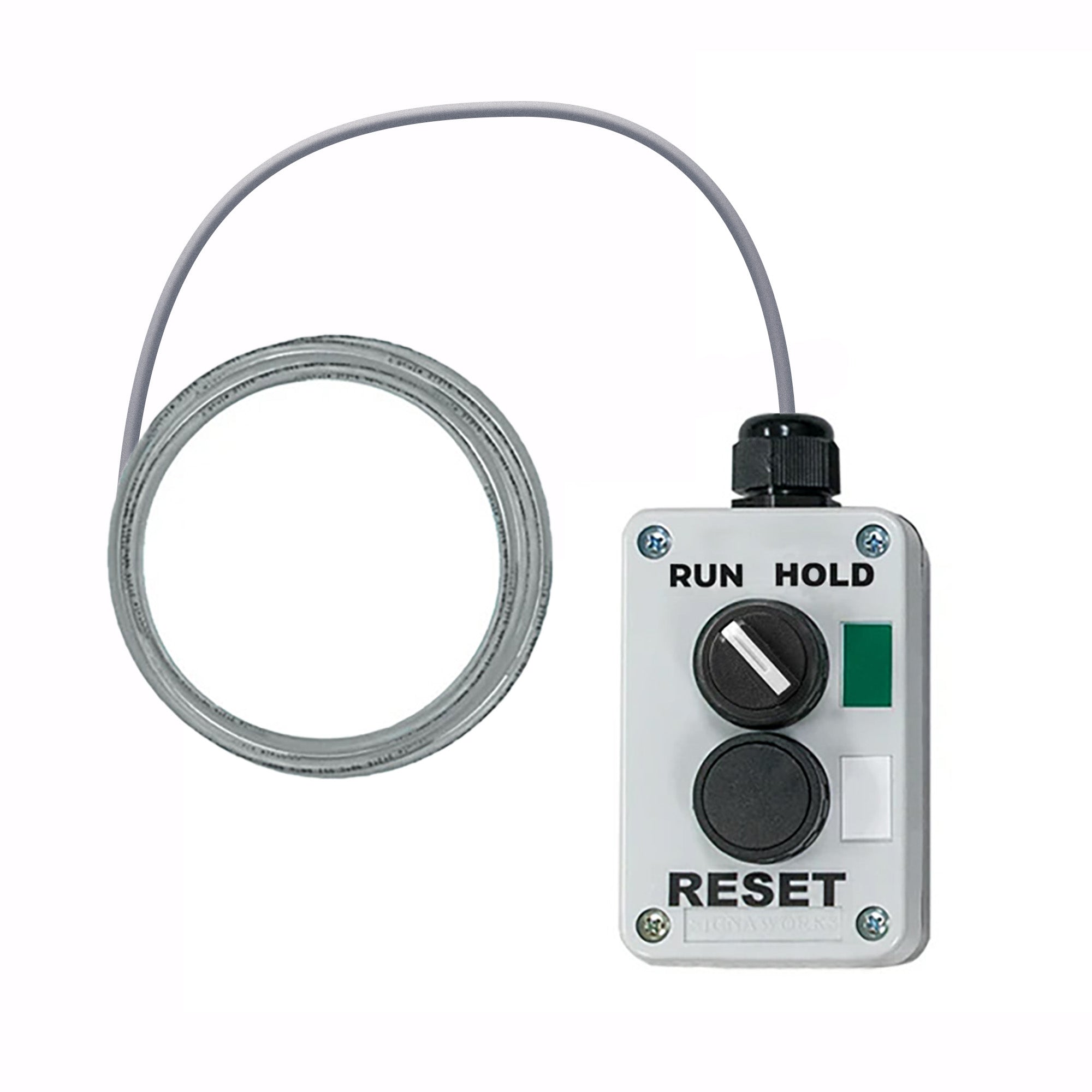

Run/hold switch box with reset push button
