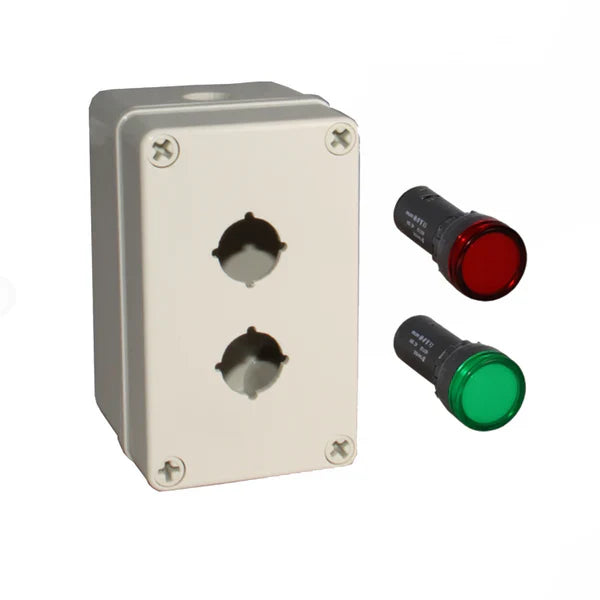

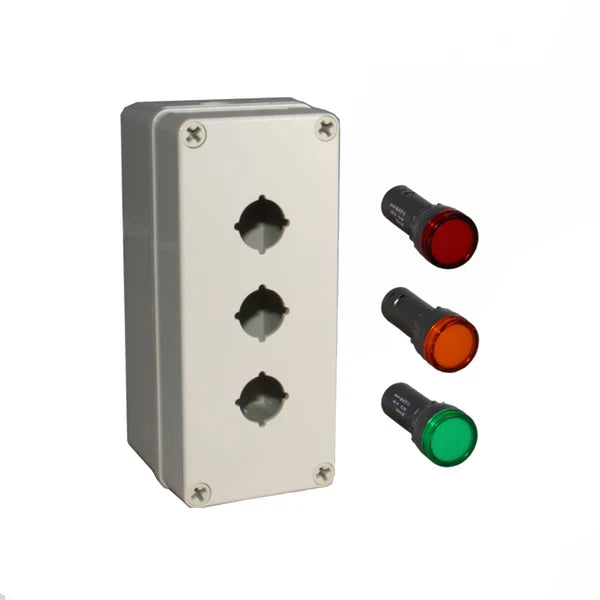

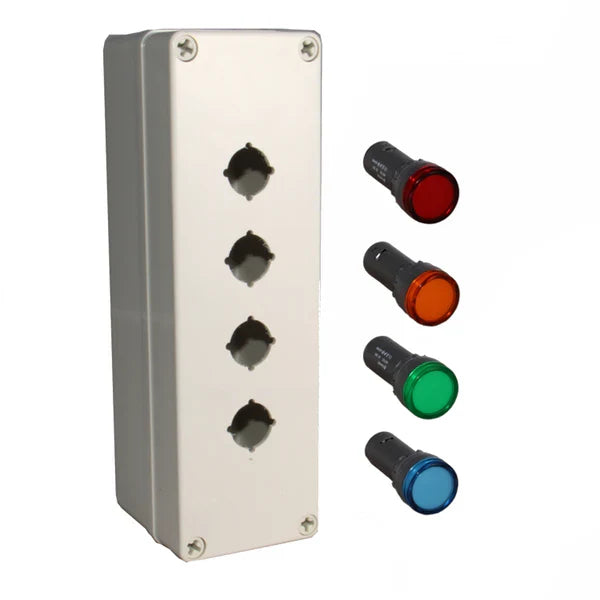

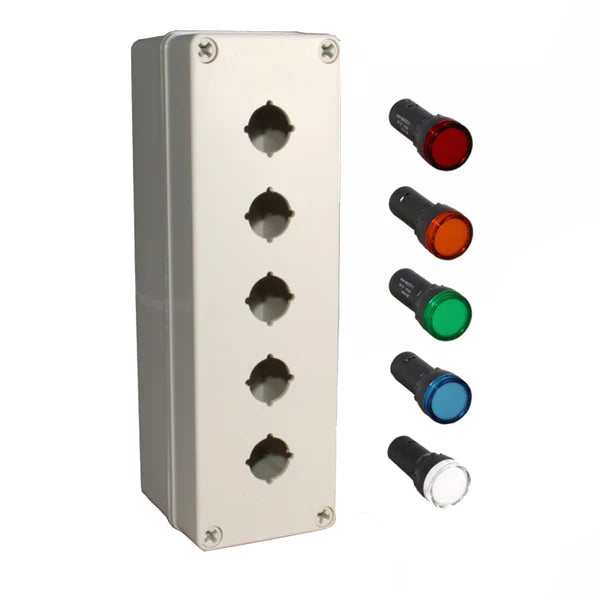

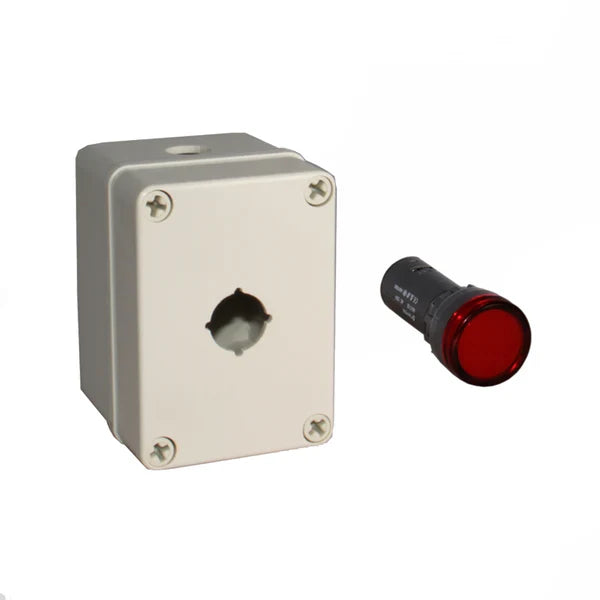

LED Pilot Light Indicator Lamp with Enclosure Kits

Voltage
Lights and Colors
SKU: KT-2211-000
Regular price $29.89
Description

Kits come complete with all components necessary for customer to assemble. Kits come with the LED indicator/s and ABS mounting box for ease in customer purchasing, assembly and wiring. The wiring terminations are screw terminal interface.

For 120VAC version, simply run a 120VAC hot and 120VAC neutral wire correspondingly to light the indicator appropriately. For 24VDC version simply run a +24V hot and -GND neutral wire correspondingly to light the indicator appropriately. Power consumption is 0.8 watt per color indicator.

ABS BOX: This non-metallic ABS switch box enclosure includes 22mm (7/8 inch) hole/s on the face for use with an LED indicator, push button or selector switch. Four mounting holes are provided for wall / machine mounting options.

Basic electrical and mechanical skills are required. Assembly instructions not available.



Specifications

  • Weight: 2-3 pounds
  • Power Voltage: 120VAC, 24VDC
  • Logic Voltage: 120VAC, 24VDC
  • Current Rating: Max. 15mA Per Indicator
  • NEMA/IP Rating: IP65
  • Color: Red, Yellow, Green, Blue, White
  • LED Lifespan: 50,000-100,000 Hours Typical
