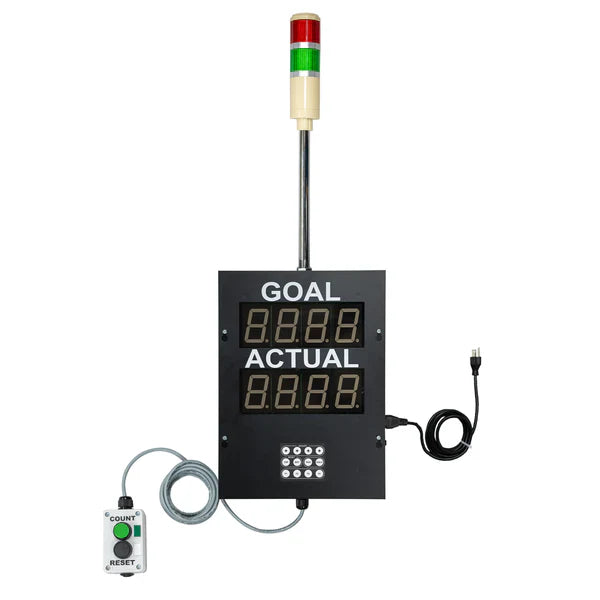

Manual Count Reset Box for Counter or Production Pace Timer/Counter
SKU: KT-051
Regular price
$175.00
Description
Manual Count. Reset Box for Counter or PPT (Formerly KT-2764-030)

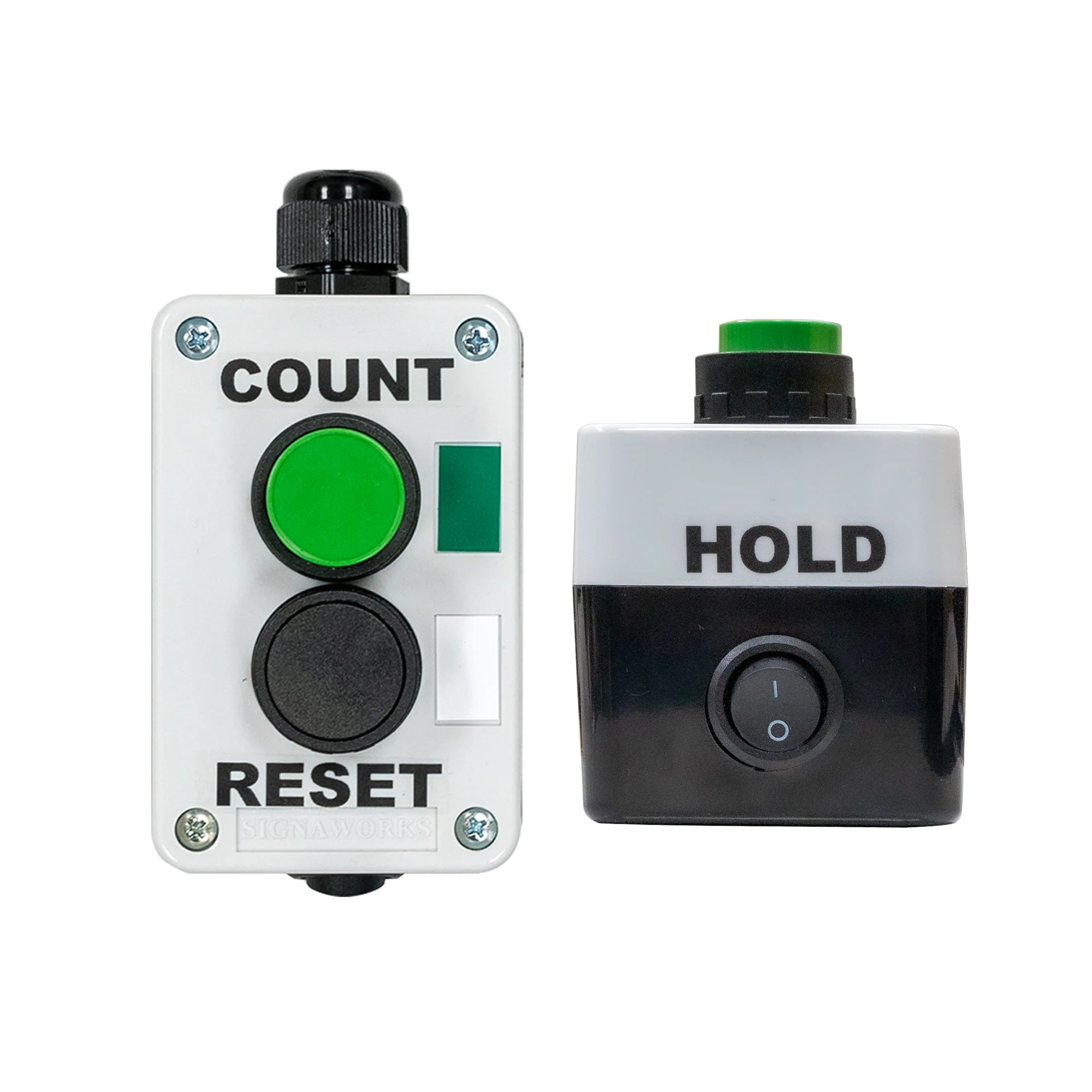

Count/Reset Box Features
- Count green extended push button & flush reset button mounted in plastic enclosure

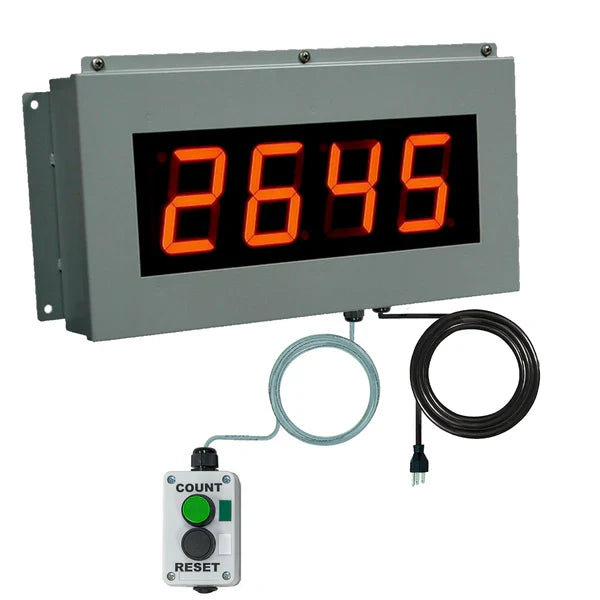

- Use with the SPTC, AF-2620, and AF-2640 series counters.
- 10 ft of high flex control cable for connecting to counter
- Count push button switch adds +1 to the count number
- Flush Reset Button is used to Reset the Counter back to zero or preset value
- Cable has common wire, +1 wire and Reset Wire (3 wires)
+1, -1, Reset Box Features
- +1 green extended push, -1 black flush button & flush reset button
- Mounted in sealed plastic enclosure
- Use with the SPTC, AF-2620, and AF-2640 series counters.
- 10 ft of high flex control cable for connecting to counter
- Greepun push button switch adds +1 to the count number
- Black -1 push button switch will deduct 1 from the count
- Flush Reset Button is used to Reset the Counter back to zero or preset value
- Cable has common wire, +1, -1 & Reset wire and Reset Wire (4 wires)
Note: For use with the AF-2625 and AF-2645 series products utilizing 120VAC inputs, 120VAC Hot must be connected to the "black" kit wire, 120VAC Neutral must be ran to the appropriate PC board input contact (each input), and the "red" kit wire must be ran to the Reset input (PCB) while the "green" kit wire is ran to the Count input (PCB).
