Manual Up Down Reset Box for Counter or Counter/Timer
SKU: KT-051
Regular price
$175.00
Description

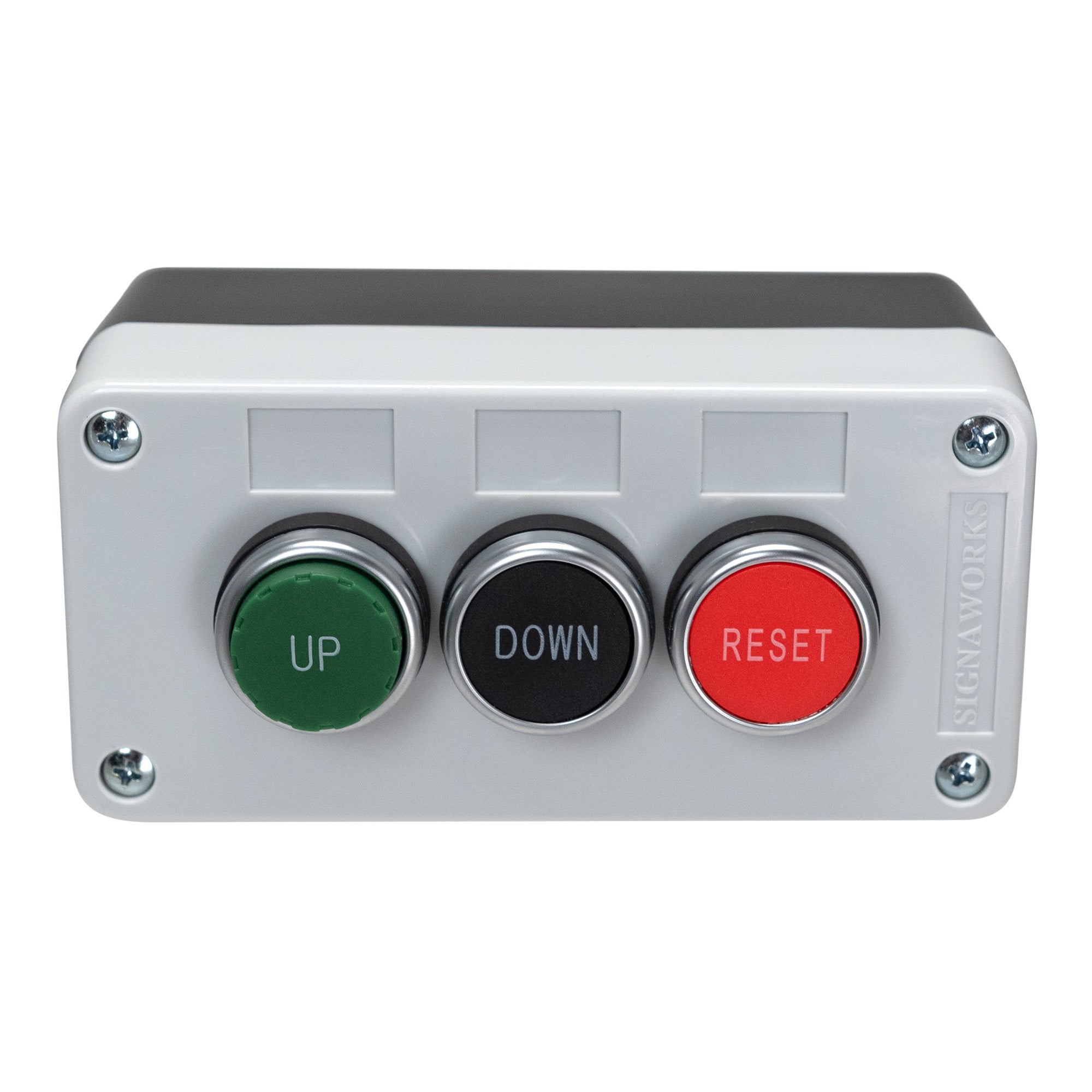

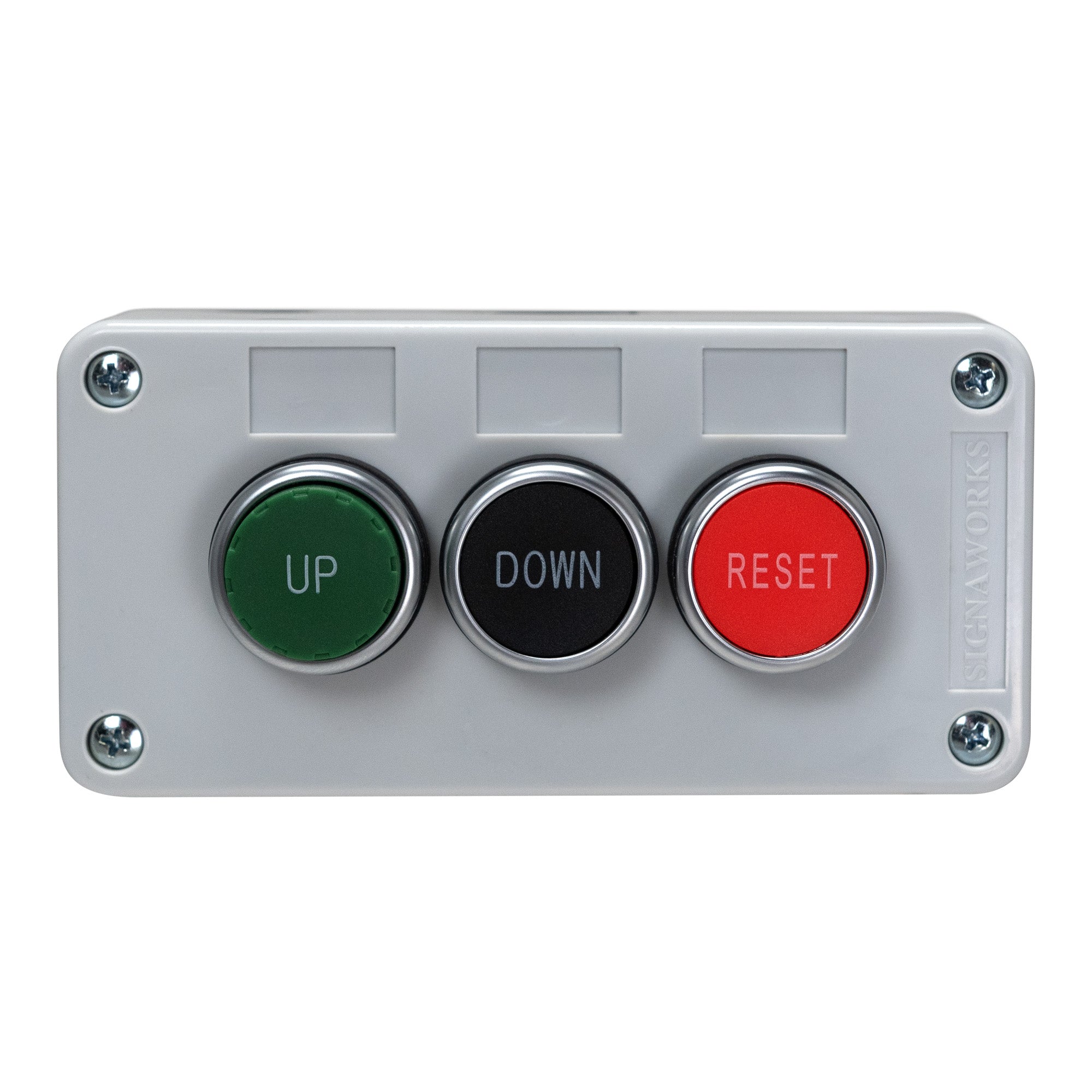

Manual Up, Down. Reset Box for Counter or Counter/Timer
+1, -1, Reset Box Features
- +1 green extended push, -1 black flush button & flush reset button
- Mounted in sealed plastic enclosure
- Use with the SPTC, AF-2620, and AF-2640 series counters.
- 10 ft of high flex control cable for connecting to counter
- Green push button switch adds +1 to the count number
- Black -1 push button switch will deduct 1 from the count
- Flush Reset Button is used to Reset the Counter back to zero or preset value
- Cable has common wire, +1, -1 & Reset wire and Reset Wire (4 wires)
Note: For use with the AF-2625 and AF-2645 series products utilizing 120V AC inputs, 120V AC Hot must be connected to the "black" kit wire, 120V AC Neutral must be ran to the appropriate PC board input contact (each input), and the "red" kit wire must be ran to the Reset input (PCB) while the "green" kit wire is ran to the Count input (PCB).
