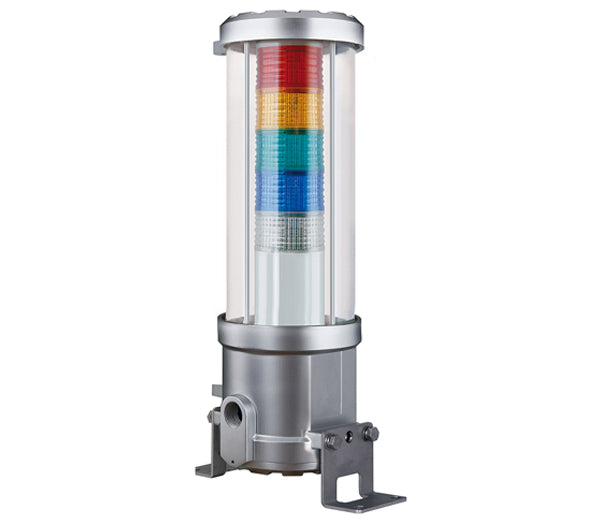

QTEX Explosion Proof LED Tower Lights with Flame Proof Housing ATEX

Voltage
Light Colors
Sounds
SKU: QTEX-1-110-R

Call for Quote and Customization

Description

The QTEX series are our new explosion proof line of industrial tower lights.  These lights are IP66 rated and are available in 1-5 light sections with colors in red, amber, green, blue, clear.

Model Types

QTEX - IEC Ex dIIC rated Explosion Proof Tower Light

QTEXB - IEC Ex dIIC rated Explosion Proof Tower Light with Buzzer (max. 90dB at 1M)

Features

  • Explosion proof LED tower lights with Ex dⅡC rating can be used in explosive gas environments
  • Excellent distance visibility by using a special reflector to aggregate the light from the LED filament
  • Ø80 LED tower light mounted inside the flame proof housing
  • Aluminum housing provides excellent durability
  • Long-lasting high intensity LED light source
  • Terminal box located inside the housing for easy power wiring
  • Direct mount type and wall mount type available depending on application needs.
  • Flashing rate: 60-80 flashes/min
  • Selectable between steady/flashing mode with proper wire arrangement
  • Lens color arrangement: R-Red, A-Amber, G-Green, B-Blue, W-White
  • Cable entry: 3/4″ NPT
  • Materials : Lens-Tempered glass, Filter lens-AS, Housing-Al, Reflector-Heat resistant ABS
  • Certificates : IECEx, ATEX
  • Protection rating : Ex dⅡC T6 Gb, IP66
  • Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C
QTEX Explosion Proof LED Tower Lights with Flame Proof Housing ATEX
Signaworks

QTEX Explosion Proof LED Tower Lights with Flame Proof Housing ATEX

Voltage
Current
24V DC
60 mA
110V AC
55 mA
