Run Hold Reset Box with Diffuse Photo Eye for Counter or Production Pace Timer

Run Hold Reset Box with Diffuse Photo Electric Sensor for Counter or PPT

This Run/Hold Reset Kit includes 15 foot cabling with a non-terminated end for use with any unit requiring actuation of inputs to Hold or Reset the display.

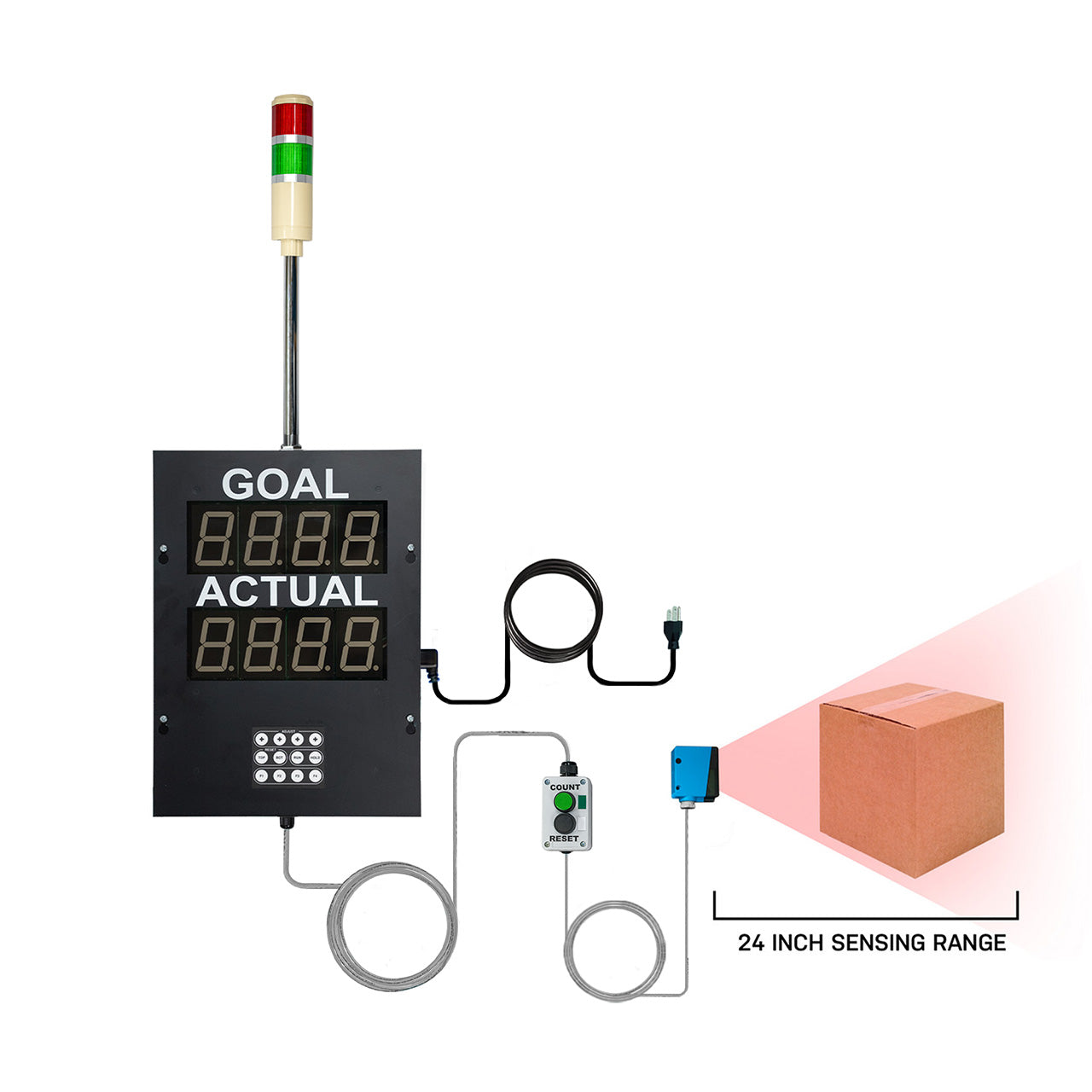

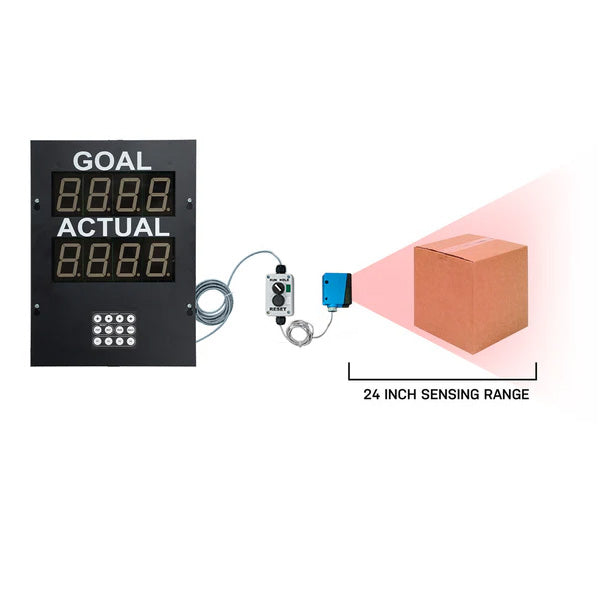

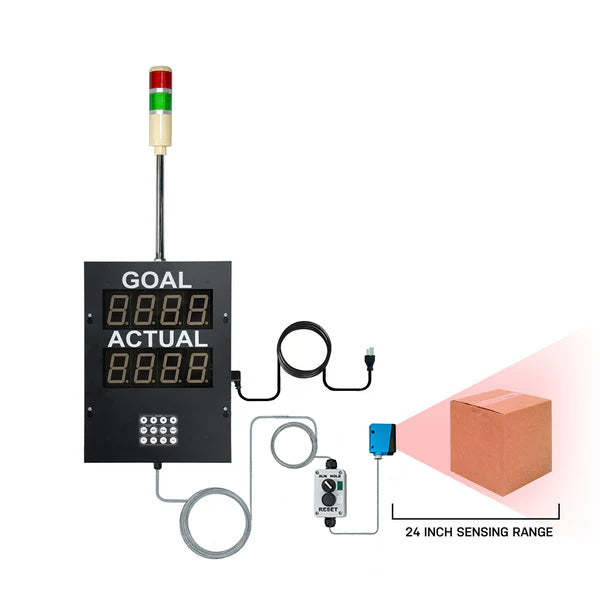

This photo-eye kit is configured to plug directly into the unit bottom connector on the AF-272x-xxx Series PPT/PCT/PRM.

Unit comes with 120VAC power cord.

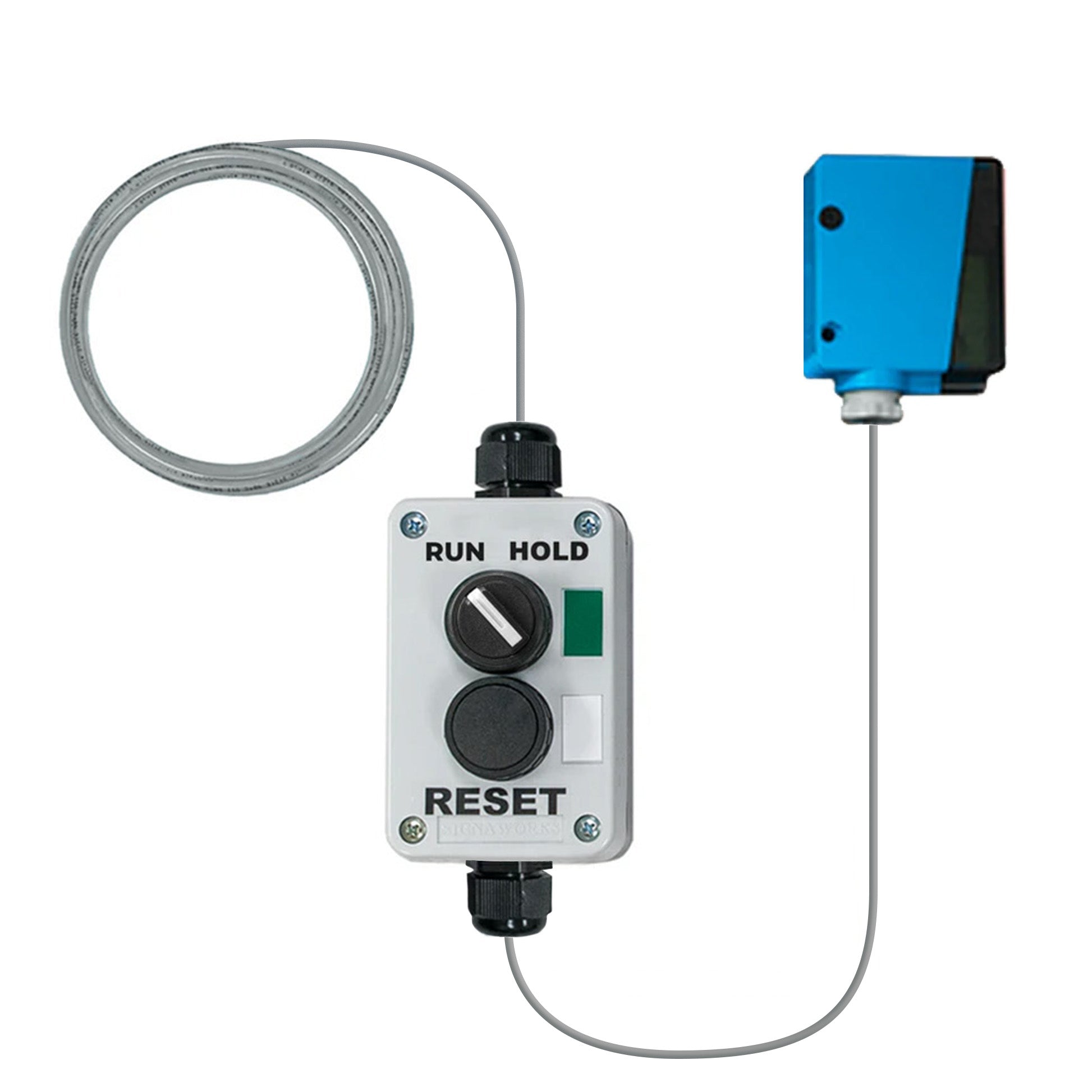

Included is one switch and one pushbutton pre-wired with the black wire as common, the green wire as Run/Hold, and the red wire as Reset (3 wires).

For use with the AF-2625 and AF-2645 series products utilizing 120VAC inputs, 120VAC Hot must be connected to the "black" kit wire, 120VAC Neutral must be ran to the appropriate PC board contact (to one side of the Run/Hold input (PCB) and one side of the Reset input (PCB) terminals), and the "red" kit wire must be ran to the other Reset input (PCB) while the "green" kit wire is ran to the Run/Hold input (PCB).
