Toggle Selector Switch Box Kit

Switch Type
Switches
SKU: KT-2211-200
Regular price $27.79
Description

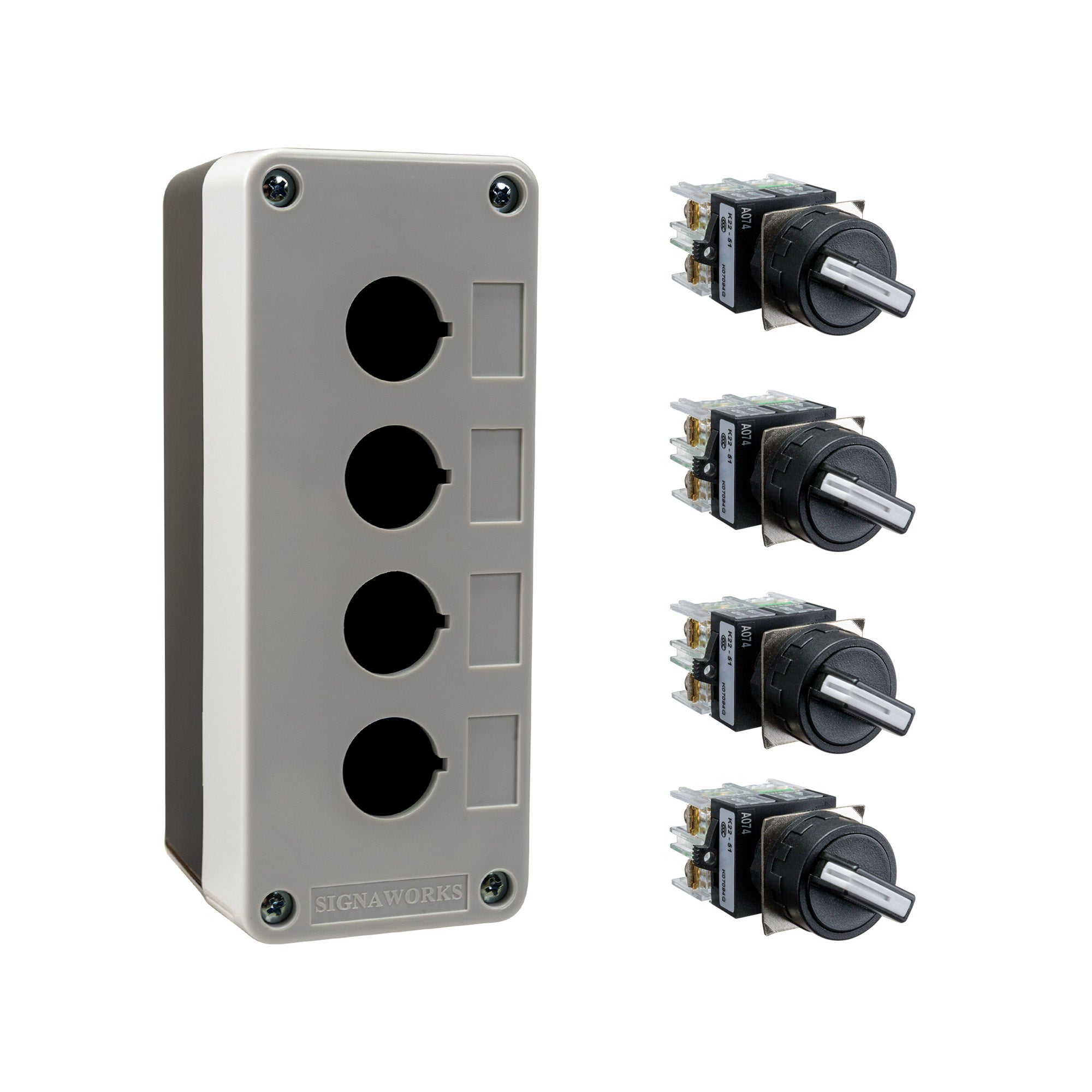

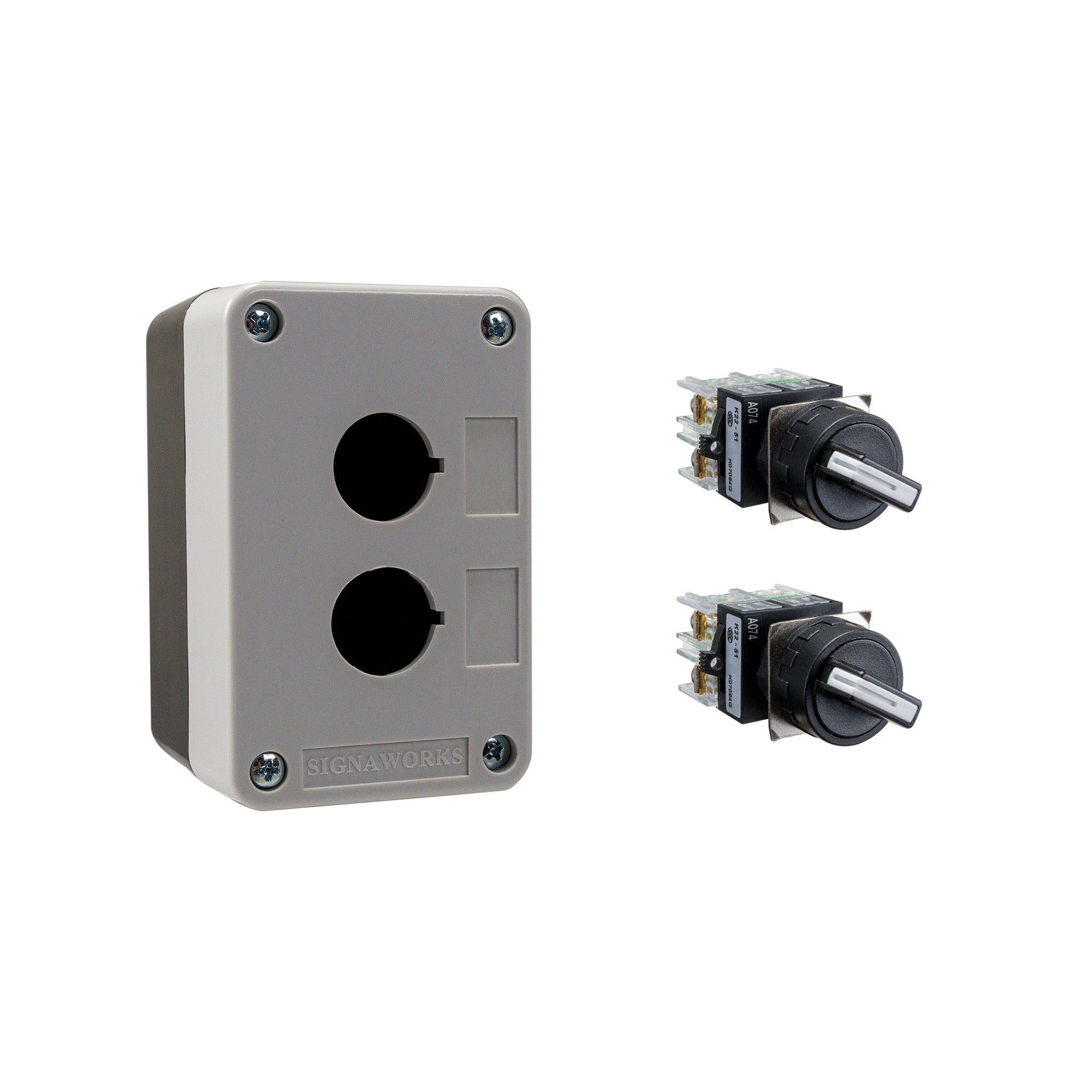

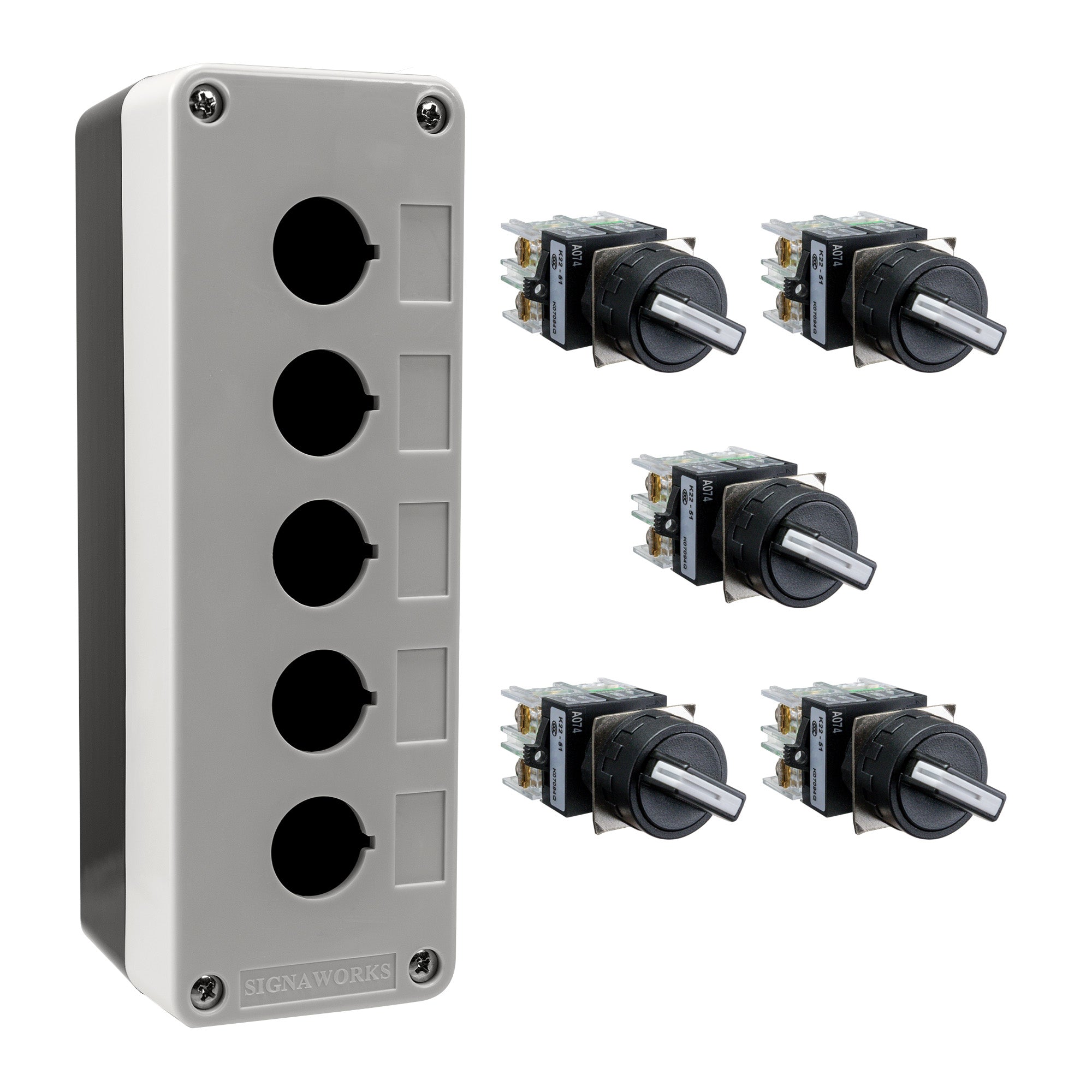

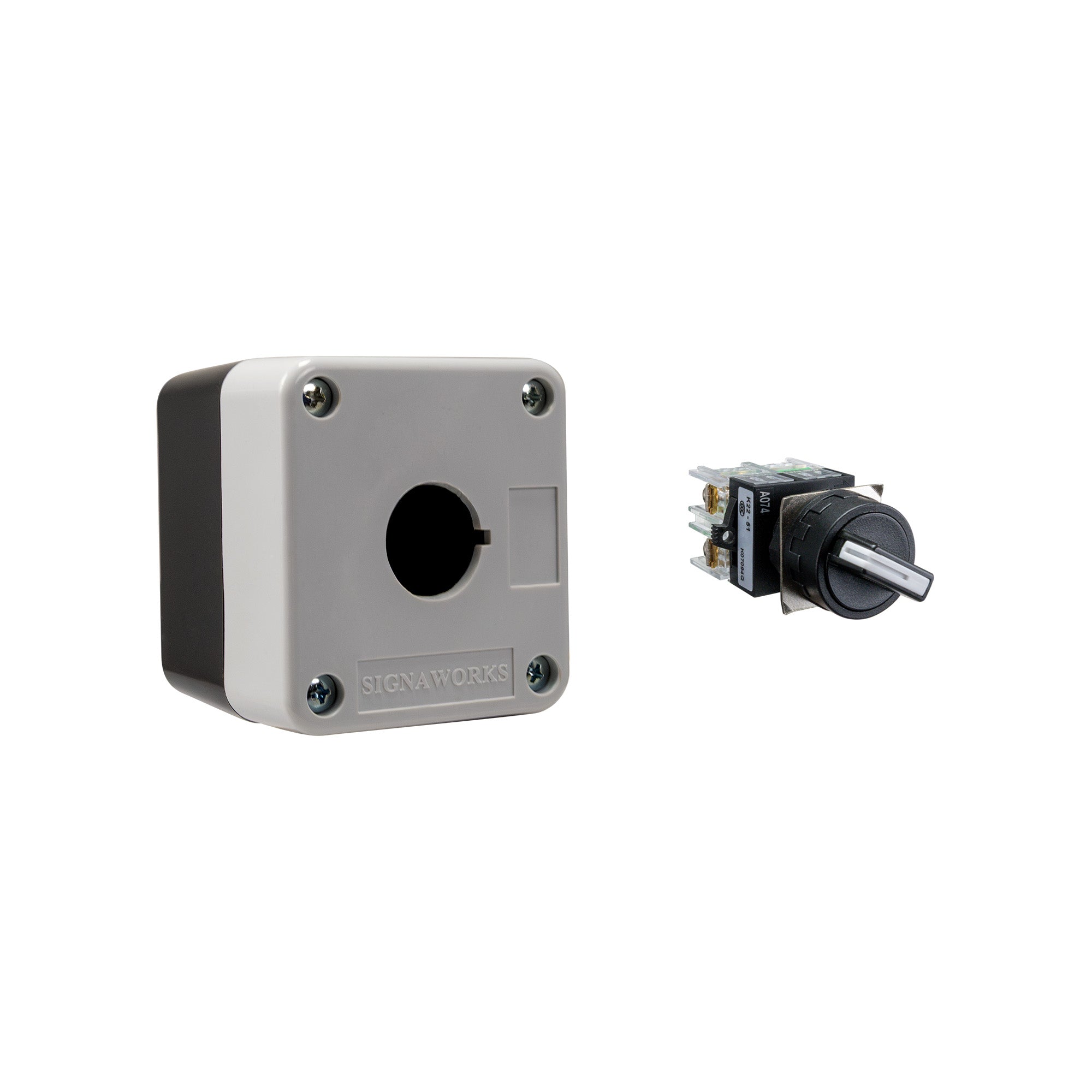

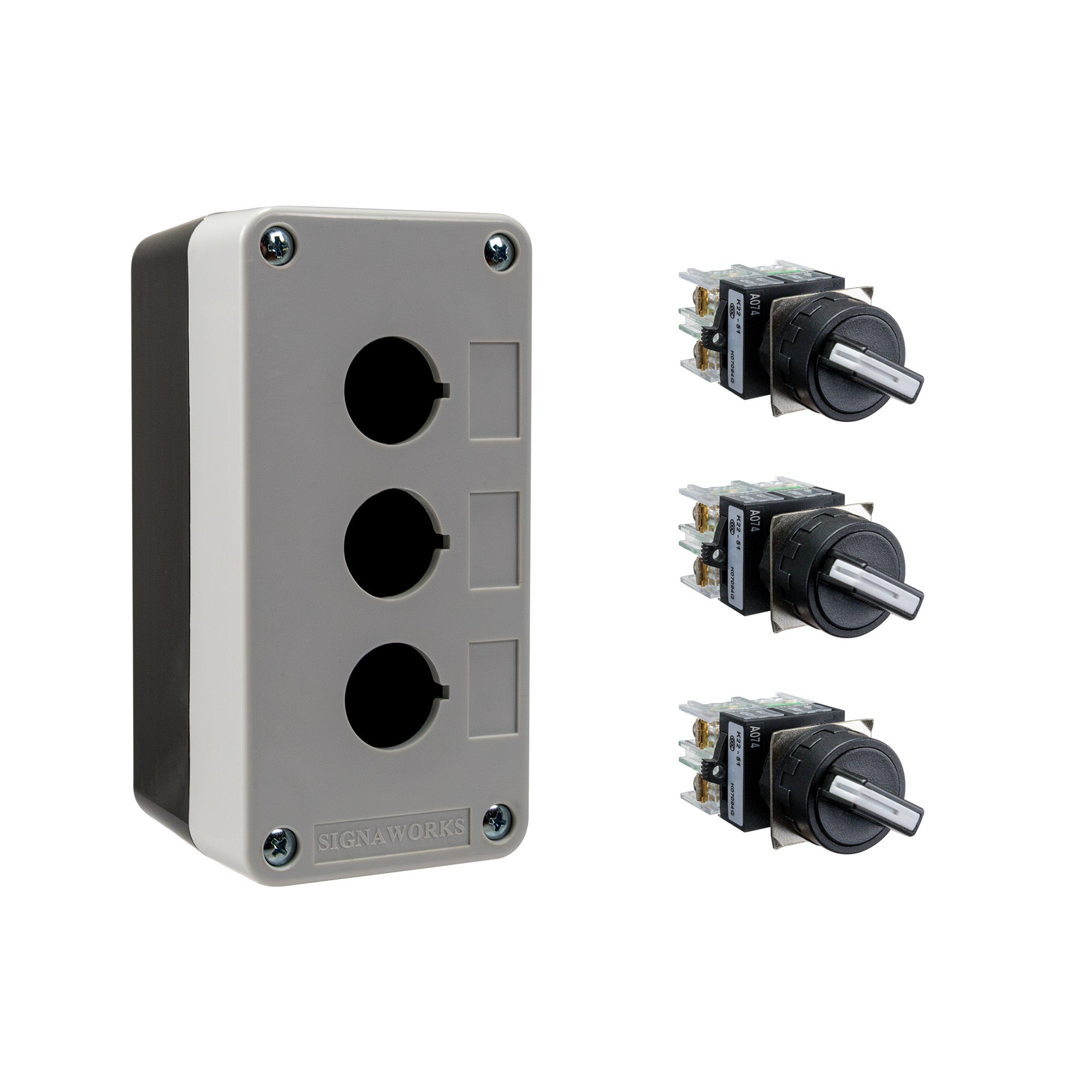

The Selector Box Switch Kit comes with the 22mm selector switch(es), corresponding contact blocks and ABS mounting box for ease in customer purchasing, assembly and wiring. Kits allow customer to assemble and wire from customer’s PLC, machine or remote indication device. Ideal for connection to separately purchased stack lights or any electrical device requiring industrial switch station control.

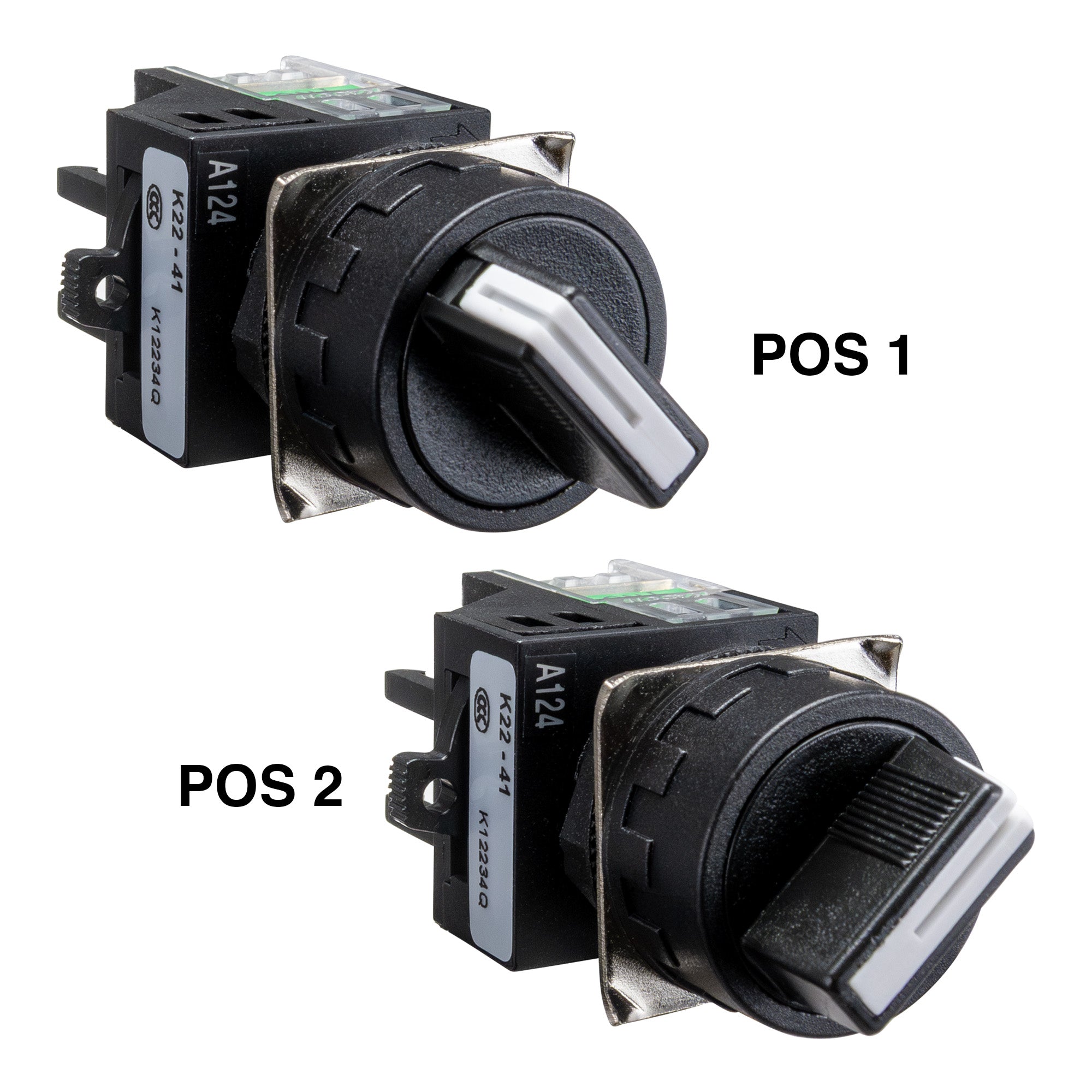

SWITCH: 2 POSITION. Maintained. 300,000 uses @ 2Hz. 600V insulation rating. ABS box: This non-metallic ABS switch box enclosure includes 22mm (7/8 inch) hole on the face for the use of an indicator lamp, push button or selector switch.

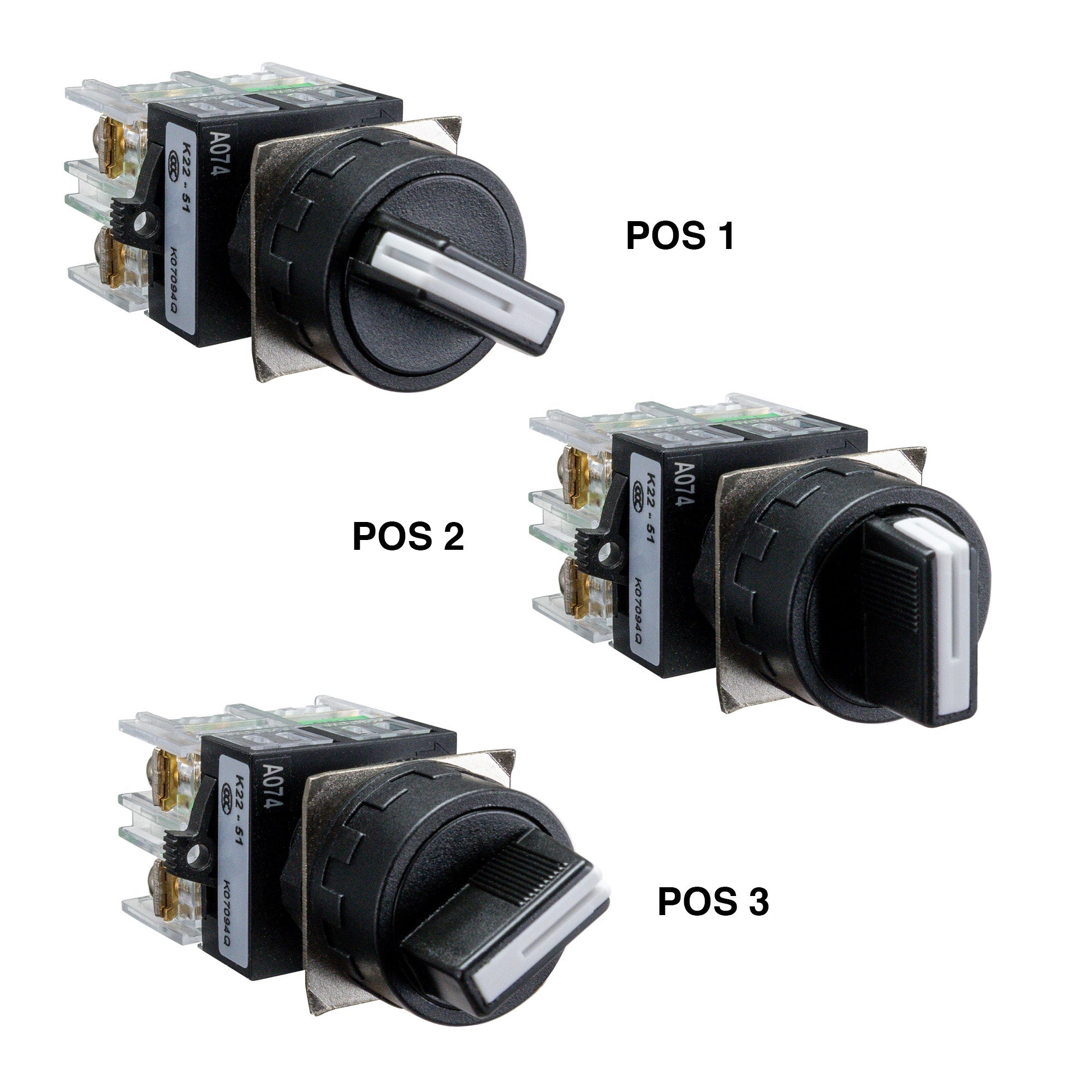

SWITCH: 3 POSITION ON/OFF/ON. Maintained. 300,000 uses @ 2Hz. 600V insulation rating. ABS box: This non-metallic ABS switch box enclosure includes 22mm (7/8 inch) hole on the face for the use of an indicator lamp, push button or selector switch.

Four mounting holes are provided for wall / machine mounting options.

Tools such as a Phillips head screwdriver, wire strippers, a socket/mandrel/flathead screwdriver (for knockout), etc., are required to assemble. Basic electrical and mechanical skills are required. Assembly instructions not available. Contact blocks are keyed for ease in assembly orientation.

Specifications

  • Weight: 2 through 3pounds
  • Color: Industrial Gray
  • Contact Rating: 10 Amp Max
  • Contact Type: (2) NO Contacts Per Switch
  • Array: 1-5 Switch - 2, 3 Position Kit
