Wall Plate Selector Switches

Wall Plate Color
Operation
SKU: WP22W-010-2P
Regular price $38.00
Description

The Signaworks wall plate mounted selector switch is meant to mount on a standard wall switch or outlet box with two mounting holes.

Features:

The 2 Position Switch is a 22mm (7/8") panel mount selector switch with 1 Normally Open Contact for Off/On Operation

The 3 Position Switch is a 22mm (7/8") panel mount selector switch with 2 Normally Open Contact for On/Off/On Operation

Additional Contact Blocks are available upon request

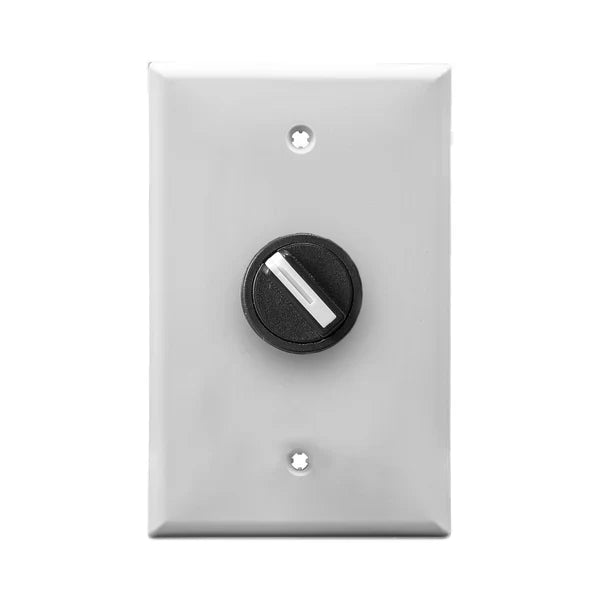

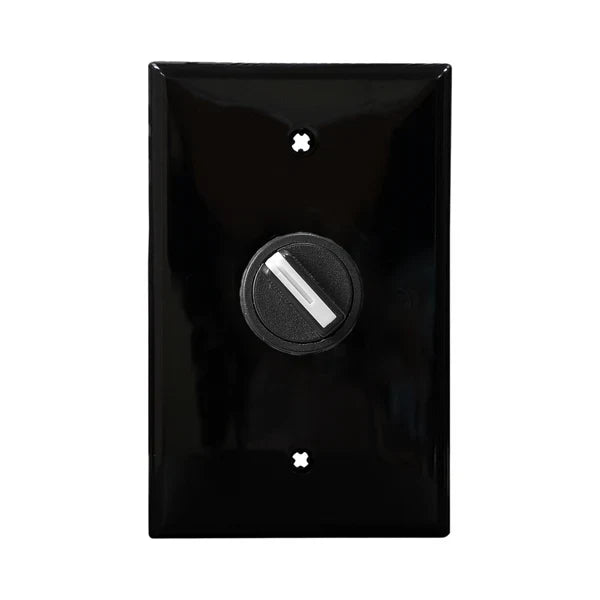

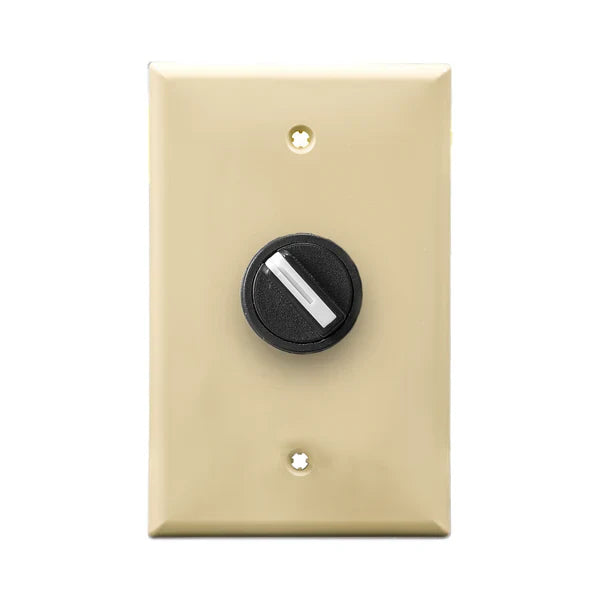

2 Position Selector Switch Operation (where X is closed and O is open contact): Position 1: O O (shown) Position 2: X X

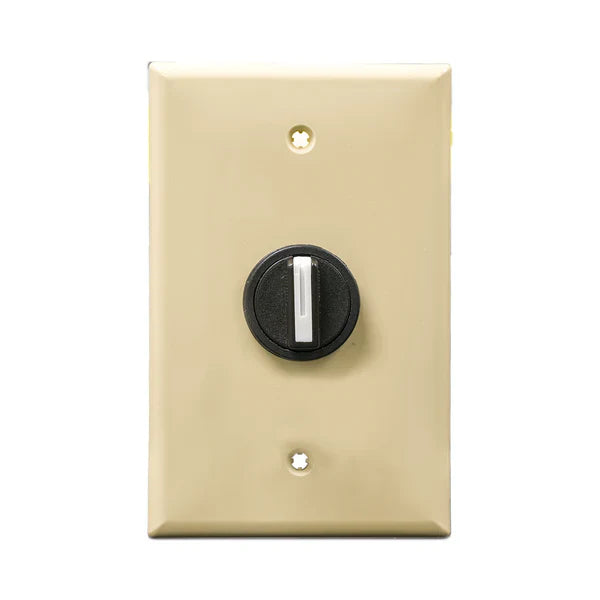

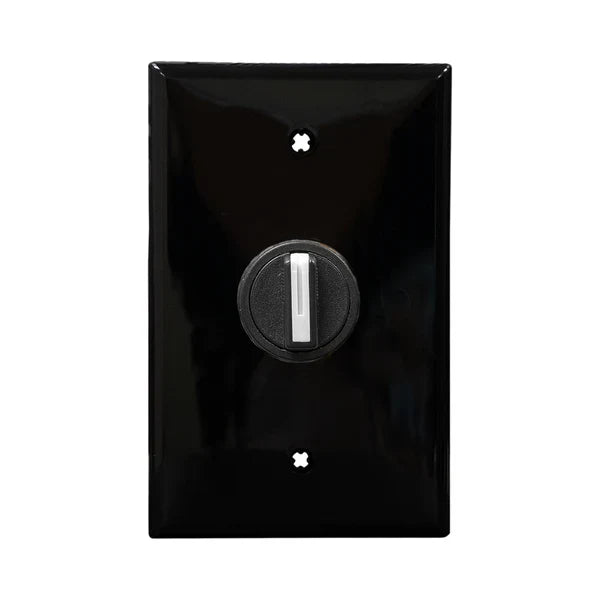

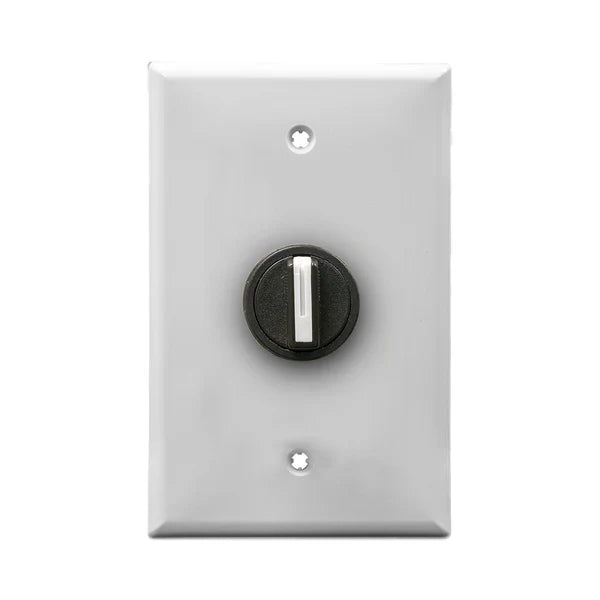

3 Position Operation (where X is closed and O is open contact): Left Position: X O Center Position: O O (shown) Right Position: O X

Specifications:

  • Working Temperature Range: -25 to +60 degrees Centigrade
  • Rated Insulation Voltage: 400 Volts
  • Mechanical Life: ~300,000 uses @ 2 Hz
  • Sealant Rating: IP65
  • Electrical Life: AC-15 operation: ~600,000 @ 20Hz DC-13 operation: ~250,000 @ 20Hz
  • IEC 60947 CE recognized, Switch Only is UL Recognized
