Wall Plate with Multi-Color 30mm Pilot Light

Wall Plate Color
Voltage
SKU: WP22W-12-100-K30
Regular price $59.00
Description

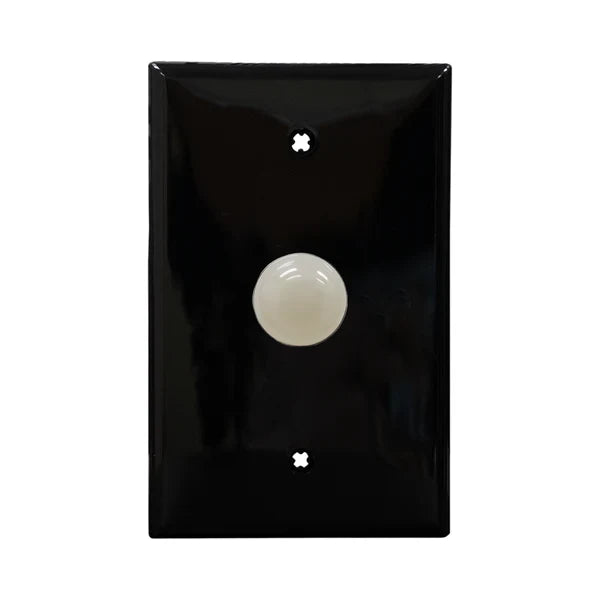

The Signaworks K30L Series Multi-Colored LED 30mm Pilot Lights have a resin poured dome light giving it 360° visibility. The light is mounted on a switch Wall Plate of your color. Our bright LEDs are strong enough to easily display statuses in well lit manufacturing and warehouse floors.

Features

  • Affordable Visual Communication tool for Office or Factory
  • K30L Series Pilot Light (see below pilot light features)

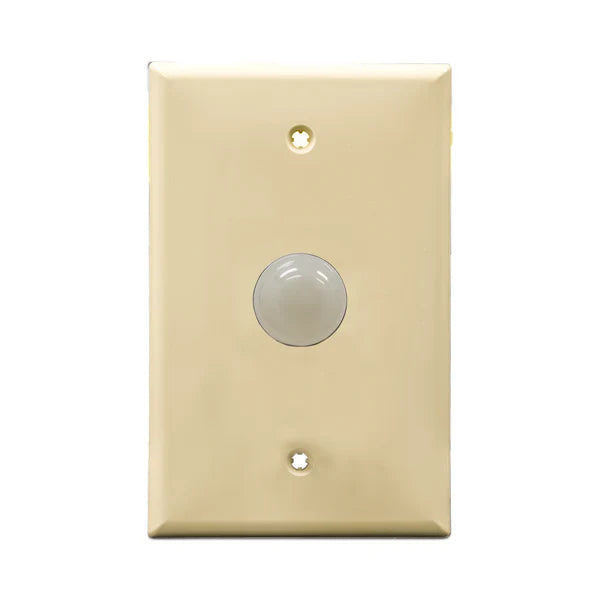

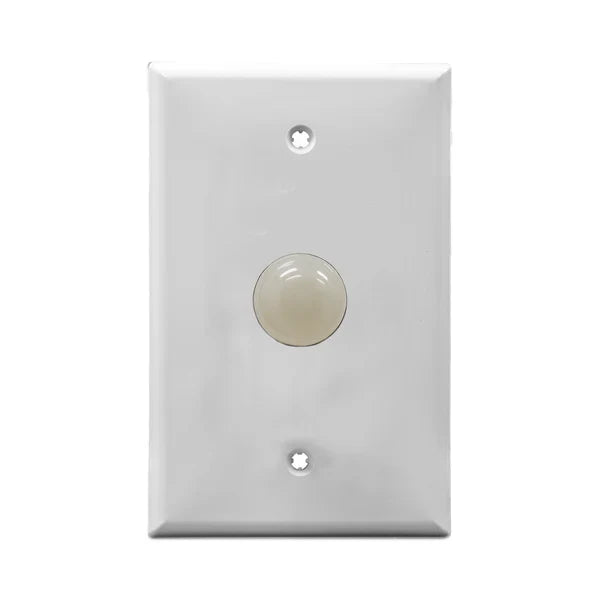

  • Plates available in Gloss Black, Ivory, or White on Request
  • Flexible polycarbonate wall plates for single or 2 gang wall box
  • Standard styles or call for custom configurations available
  • 12V or 24V DC input with screw terminal connection
  • Ideal for new construction or a retrofit

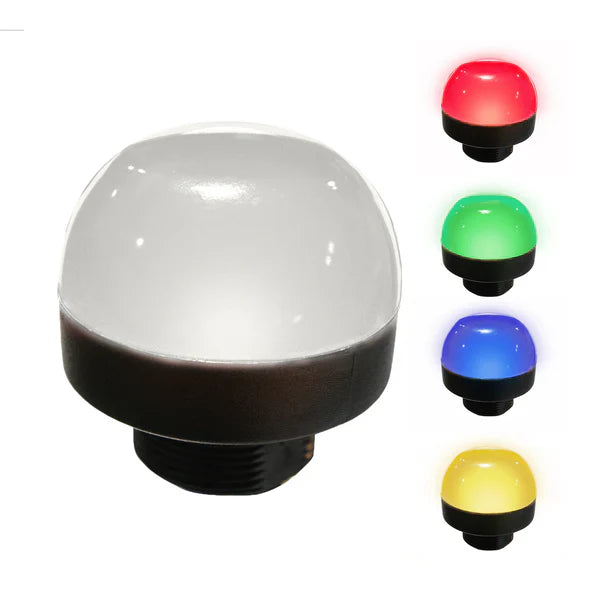

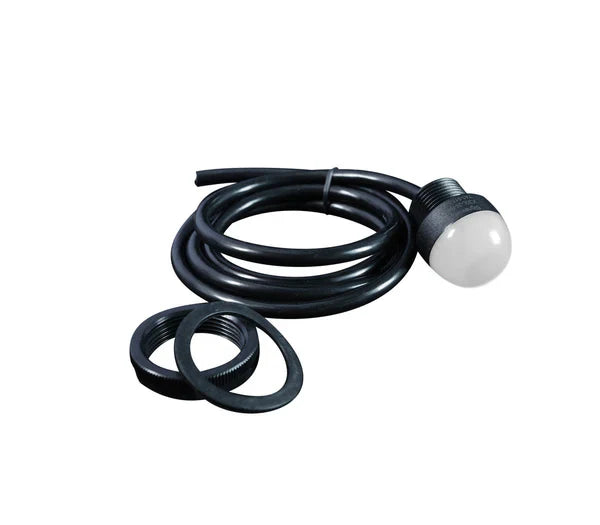

K30L Pilot Light Features

  • 24V dc(10% fluctuation)
  • 80mA@12V dc; 40mA @24V dc
  • Colors: Red, Amber, Green and Blue. (All Color can be combined for White)
  • Body: Black
  • Working Temperature: -40°C ~50°C
  • Max Op. Relative Humidity: 95% at 50°C
  • IP Rating: IP69K
  • Dimension: 30mmx38.2mm
  • Mounting Thread: M22x1.5mm
  • Material: ABS and Polycarbonate
  • Approval: CE and FCC

Optional Accessories (Call for Quote)

  • 5 Super bright LED colors (Red, Amber, Green, White, Blue) 20mA
  • 22mm Audible Alarm available
  • 2 or 3 position Selector Switch
  • Marking labels beside Lights
  • You dream it, we build it!
